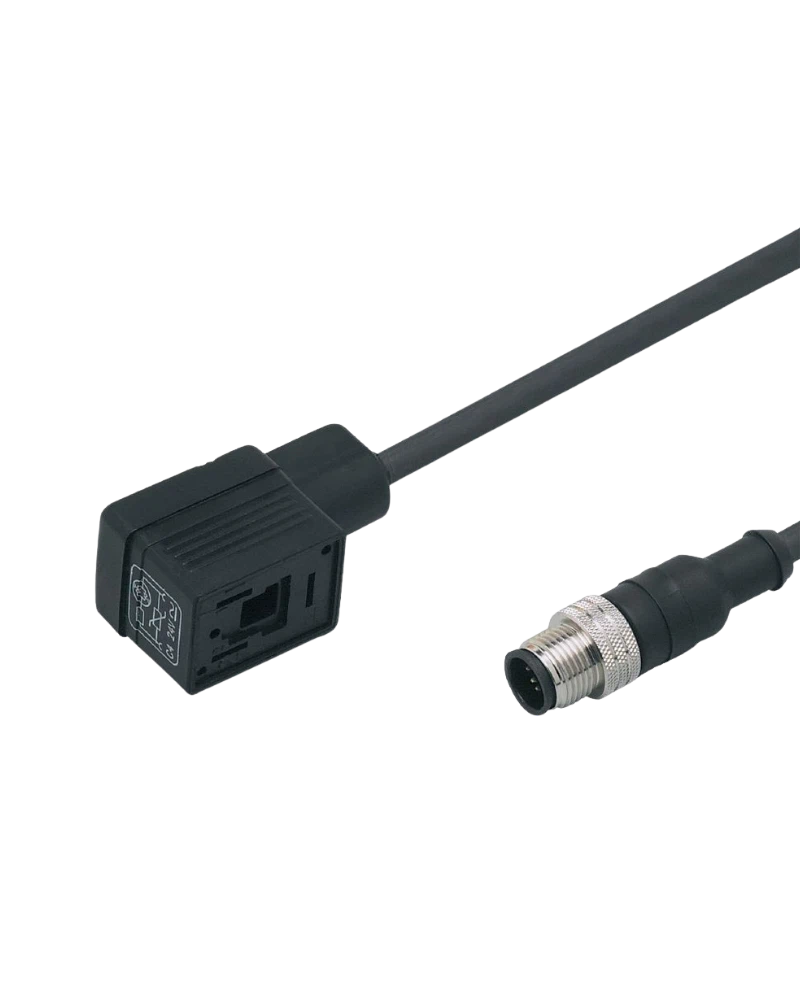

The IFM E11431 is a 0.3 m jumper cable with a valve plug for compact industrial automation connections. It uses a straight three-contact M12 connector and a valve plug type B connection. The black PUR cable has three 0.5 mm² conductors and a compact 5 mm diameter. Gold-plated contacts provide reliable electrical connectivity. Its short length is ideal for closely mounted valves and control components.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The M12 connector uses straight geometry and A coding. The valve side uses an angled type B industrial connection. The compact 0.3 m cable minimizes unnecessary wiring loops. Brass and nickel-plated locking components secure both interfaces. The connector arrangement is suitable for industrial valve-control systems.
The cable supports below 24 V AC/DC operation. Maximum current capability is 3 A. The VDR protection circuit helps suppress electrical transients. The yellow LED provides visual operating indication. Gold-plated contacts improve contact stability.
The PUR cable is black, halogen-free and silicone-free. The cable has three 0.5 mm² conductors. Industrial materials support factory automation use. The connector assembly provides IP-rated protection. The compact design works well in restricted installation spaces.
0.3 m length
VVSAB031MSS00,3H03STGH030MSS
M12 straight connector
A-coded
3 contacts
Valve plug type B
Angled valve connection
PUR
Black
3 × 0.5 mm²
5 mm diameter
Gold-plated contacts
VDR
Yellow LED
3 A
<24 V AC/DC
Halogen-free
Silicone-free
Brass locking
Solenoid valves
Pneumatic equipment
Factory automation
Compact machines
Valve manifolds
Actuator systems
Packaging machines
Assembly systems
Industrial controls
Machine wiring
The short cable keeps compact assemblies organized. The preassembled connectors simplify installation. The LED assists troubleshooting. VDR protection improves electrical robustness. PUR provides flexible cable handling.
Keep cable routing free from sharp edges. Avoid excessive connector rotation. Tighten threaded connections correctly. Inspect the LED and cable jacket during maintenance. Keep mating surfaces clean.
| Specification | E11431 Details |
|---|---|
| Order number | E11431 |
| Model | VVSAB031MSS00,3H03STGH030MSS |
| Product type | Jumper cable with valve plug |
| Length | 0.3 m |
| M12 | Straight |
| Coding | A |
| M12 contacts | 3 |
| Valve plug | Type B |
| Valve orientation | Angled |
| Cable | PUR |
| Colour | Black |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| Diameter | 5 mm |
| Strand count | 42 × Ø0.1 mm |
| Contacts | Gold-plated M12 |
| Valve contacts | Nickel-plated brass |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| Protection | VDR |
| LED | Yellow |
| Temperature | -25…80 °C |
| Connector protection | IP-rated industrial construction |
| Locking | Brass, nickel-plated |
| Torque | 0.7…0.9 Nm |
| Pack quantity | 1 |
