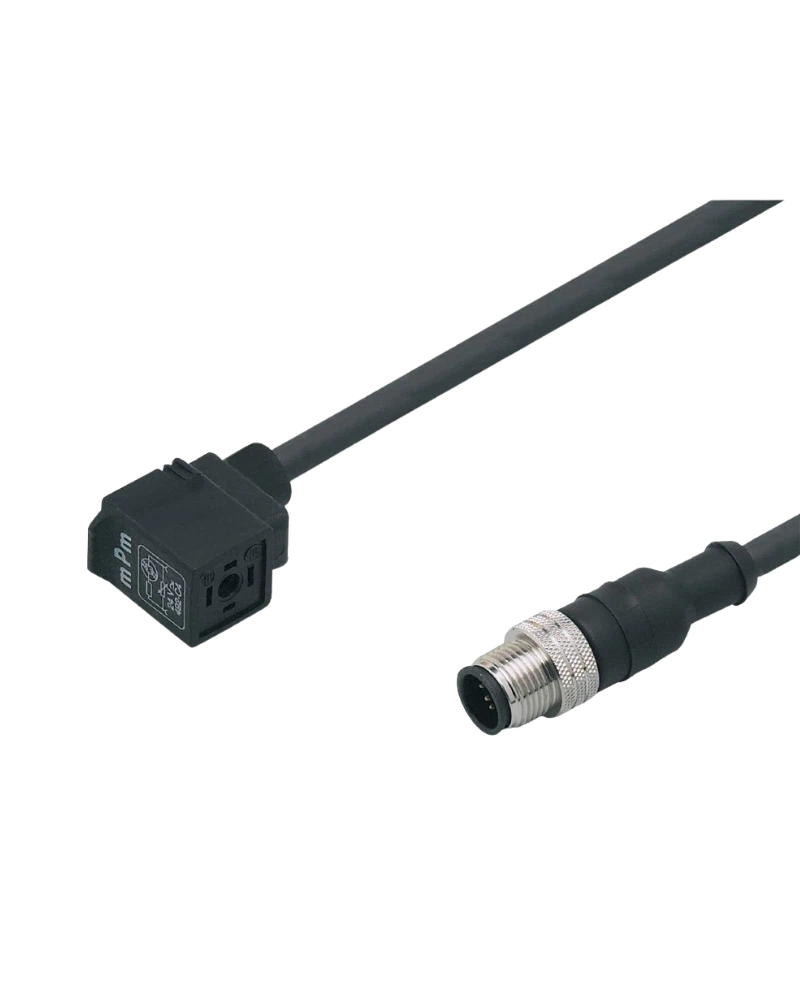

The IFM E11430 is a 5 m jumper cable with a type C valve plug for extended industrial wiring. It uses a straight A-coded M12 connector and a three-contact valve interface. The 5 m PUR cable contains three 0.5 mm² conductors for dependable low-voltage valve control. Gold-plated contacts and robust locking hardware support reliable connection. The longer cable length is useful for distributed field installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 5 m length supports installations where valves are positioned away from the control unit. PUR construction allows flexible routing through machine structures. The straight M12 connection provides a secure threaded interface. The angled valve connection is suitable for compact field installation. The preassembled cable reduces wiring preparation.
The cable operates below 24 V AC/DC and supports up to 3 A. A VDR circuit provides overvoltage protection. The yellow LED gives a visible operating indication. Gold-plated M12 contacts provide durable electrical connection. The three-conductor construction supports industrial valve-control wiring.
The cable is black and halogen-free. IP65 protection supports industrial installation. The -25…80 °C temperature range accommodates common factory environments. Nickel-plated brass locking components provide mechanical durability. The PUR jacket supports repeated machine routing.
5 m length
VVDAC031MSS0005H03STGH030MSS
Straight M12
A coding
3 contacts
Type C valve plug
PUR cable
3 × 0.5 mm²
5 mm diameter
Black
Gold-plated contacts
VDR
Yellow LED
3 A
<24 V AC/DC
IP65
Halogen-free
Silicone-free
Nickel-plated brass locking
Remote valve wiring
Pneumatic systems
Factory automation
Production machines
Packaging lines
Conveyor equipment
Actuator control
Machine control
Industrial equipment
Field automation
The 5 m length provides extended installation reach. PUR construction supports flexible routing. Gold-plated contacts improve connection reliability. LED indication supports fast status checks. The integrated protection circuit adds electrical robustness.
Support long cable runs appropriately. Keep the cable away from sharp machine edges. Avoid excessive bending at connectors. Inspect the cable jacket regularly. Check threaded connections during planned maintenance.
| Specification | E11430 Details |
|---|---|
| Order number | E11430 |
| Model | VVDAC031MSS0005H03STGH030MSS |
| Product type | Jumper cable |
| Cable length | 5 m |
| M12 connector | Straight |
| Coding | A |
| Contacts | 3 |
| Valve plug | Type C |
| Valve plug orientation | Angled |
| Cable material | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Strand construction | 42 × Ø0.1 mm |
| Contact finish | Gold-plated |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Operating voltage | <24 V AC/DC |
| Maximum current | 3 A |
| Protection circuit | VDR |
| LED | Yellow |
| Ambient temperature | -25…80 °C |
| Protection | IP65 |
| Locking material | Brass, nickel-plated |
| Valve contacts | Nickel-plated brass |
| Torque | 0.7…0.9 Nm |
| Pack quantity | 1 |
