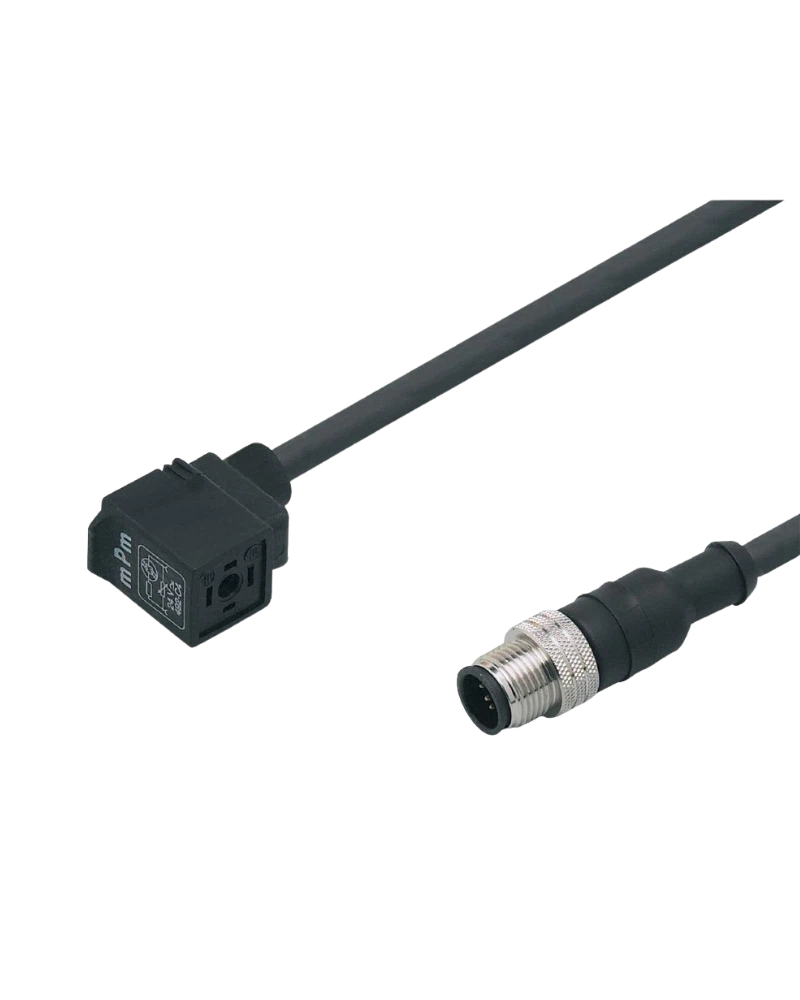

The IFM E11429 is a 2 m jumper cable with a type C valve plug designed for industrial automation connections. It combines a straight A-coded M12 connector with an angled valve connection. The cable contains three 0.5 mm² conductors inside a flexible black PUR jacket. Gold-plated contacts and brass locking components provide reliable electrical and mechanical connection. Its 2 m length is suitable for machines requiring moderate cable reach.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The straight M12 interface allows convenient connection to automation components. The type C valve plug provides the field-side connection. Three contacts support the required valve-control wiring. The cable uses a 5 mm diameter construction for compact routing. Its 2 m length balances reach and cable management.
The E11429 operates below 24 V AC/DC. It supports up to 3 A current. A VDR provides overvoltage protection. The yellow LED provides visual operating indication. Gold-plated contacts support stable connection performance.
The cable uses black PUR and is halogen-free. Its operating temperature range is -25…80 °C. IP65 protection provides protection appropriate to industrial field wiring. Brass and nickel-plated components provide durable connector locking. The cable is suitable for general factory automation environments.
2 m cable
Type C valve plug
Straight M12
A-coded
3 contacts
PUR
3 × 0.5 mm²
5 mm diameter
Black
Gold-plated contacts
Yellow LED
VDR
3 A
<24 V AC/DC
IP65
-25…80 °C
Halogen-free
Silicone-free
Nickel-plated brass locking
Valve automation
Pneumatic systems
Factory automation
Packaging equipment
Assembly machines
Actuator control
Machine wiring
Production lines
Control panels
Field devices
The 2 m cable provides useful routing distance. The preassembled connector ends simplify installation. Gold-plated contacts improve electrical reliability. PUR provides good mechanical flexibility. LED indication simplifies field diagnostics.
Route the cable with adequate support. Avoid excessive tensile loads. Keep connector threads clean. Check locking torque during servicing. Replace damaged cable assemblies rather than repairing exposed conductors.
| Specification | E11429 Details |
|---|---|
| Order number | E11429 |
| Model | VVDAC031MSS0002H03STGH030MSS |
| Type | Jumper cable with valve plug |
| Length | 2 m |
| M12 orientation | Straight |
| M12 coding | A |
| M12 contacts | 3 |
| Valve plug | Type C |
| Valve orientation | Angled |
| Cable material | PUR |
| Colour | Black |
| Conductors | 3 |
| Conductor area | 0.5 mm² |
| Cable diameter | 5 mm |
| Strand construction | 42 × Ø0.1 mm |
| Contact finish | Gold-plated |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| Overvoltage protection | VDR |
| LED | Yellow |
| Temperature | -25…80 °C |
| IP rating | IP65 |
| Locking material | Brass, nickel-plated |
| Valve contacts | Nickel-plated brass |
| Torque | 0.7…0.9 Nm |
| Pack | 1 piece |
| Main use | Valve connection |
