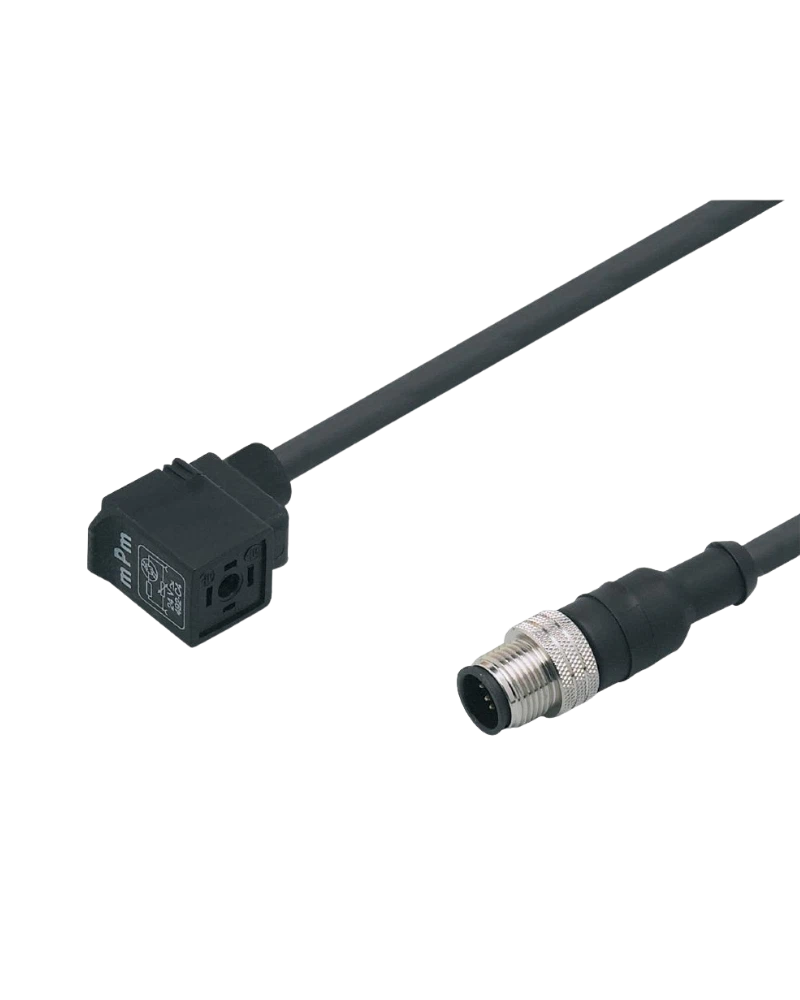

The IFM E11428 is a 1 m industrial jumper cable with a valve plug type C connection. It provides a practical interface between automation equipment and field-mounted valves. The cable uses a straight three-contact A-coded M12 connector. Its black PUR construction contains three 0.5 mm² conductors and provides flexible machine routing. The integrated yellow LED and VDR protection support convenient operation and diagnostics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 1 m length is suitable for general machine wiring. The M12 side uses a straight threaded connection for secure installation. The valve side uses a type C angled valve plug. Gold-plated M12 contacts support reliable electrical transmission. Nickel-plated brass locking components provide mechanical stability.
The cable operates below 24 V AC/DC. Its maximum current capability is 3 A. The integrated VDR provides overvoltage protection. A yellow LED gives visible operating indication. The three-conductor arrangement supports common valve-control wiring.
The black PUR jacket provides flexibility and durability. The cable is halogen-free and silicone-free. IP65 protection supports industrial field installation. The -25…80 °C operating range accommodates common factory environments. The construction is suitable for automation machinery and valve-control systems.
1 m length
VVDAC031MSS0001H03STGH030MSS
Straight M12
A-coded
3 contacts
Type C valve plug
PUR cable
3 × 0.5 mm²
Black
5 mm diameter
Gold-plated contacts
VDR protection
Yellow LED
3 A
<24 V AC/DC
IP65
Halogen-free
Silicone-free
Nickel-plated brass locking
Industrial valves
Pneumatic control
Machine automation
Factory automation
Packaging equipment
Actuator control
Control cabinets
Production machines
Material handling
Field automation
The 1 m length suits general-purpose machine wiring. The integrated LED improves visual troubleshooting. VDR protection helps protect the connected circuit. PUR insulation provides flexible routing. The connector arrangement reduces manual wiring operations.
Install without twisting the cable. Tighten threaded connectors correctly. Maintain adequate bend radius. Keep connectors free from contamination. Inspect the cable during machine maintenance.
| Specification | E11428 Details |
|---|---|
| Product type | Jumper cable with valve plug |
| Order number | E11428 |
| Model | VVDAC031MSS0001H03STGH030MSS |
| Cable length | 1 m |
| M12 | Straight |
| Coding | A |
| M12 contacts | 3 |
| Valve type | C |
| Valve orientation | Angled |
| Cable material | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Conductor construction | 42 × Ø0.1 mm |
| Contact finish | Gold-plated |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Voltage | <24 V AC/DC |
| Current | 3 A |
| Protection circuit | VDR |
| Indicator | Yellow LED |
| Temperature | -25…80 °C |
| Protection | IP65 |
| M12 locking | Brass, nickel-plated |
| Valve contacts | Nickel-plated brass |
| Locking torque | 0.7…0.9 Nm |
| Pack quantity | 1 |
| Application | Industrial valve connection |
