The IFM E11427 is a 0.6 m jumper cable with a type C valve plug for industrial automation systems. It provides a compact connection between a straight M12 interface and a valve connection. The cable uses three 0.5 mm² conductors inside a flexible PUR jacket. Gold-plated contacts support reliable electrical transmission. Its LED indication and VDR protection improve usability and circuit protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

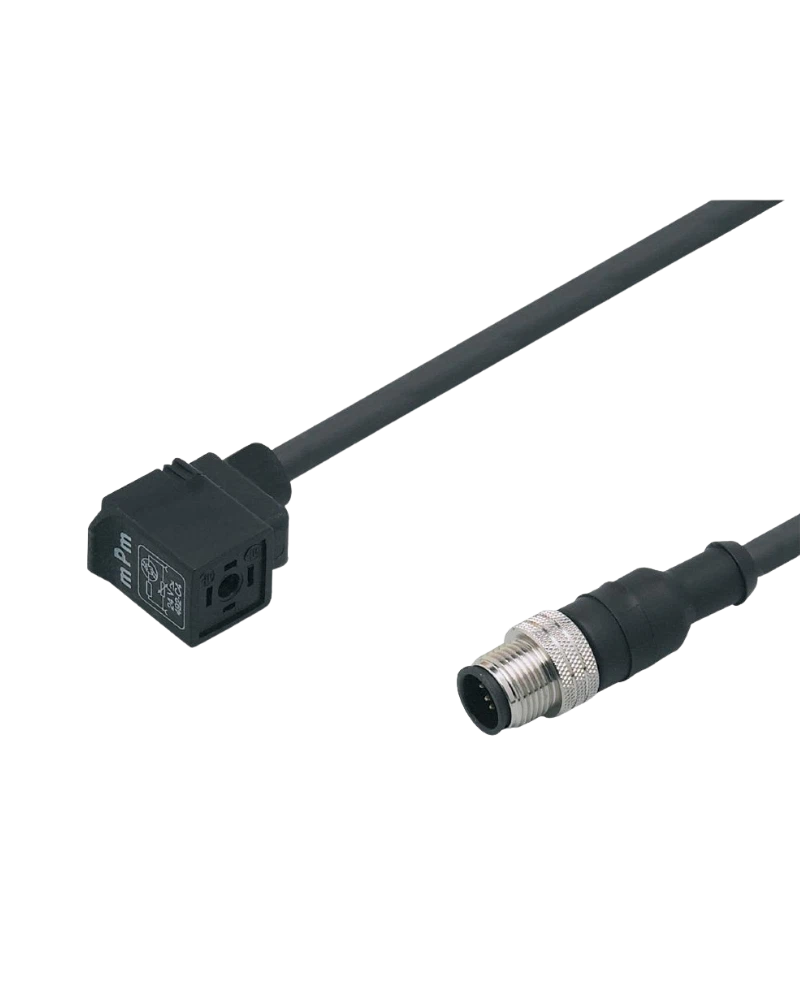

The E11427 combines a straight A-coded three-contact M12 connector with an angled valve plug. The 0.6 m cable length gives more routing flexibility than the 0.3 m version. The valve plug is designed for industrial type C valve interfaces. Brass locking components maintain secure mating. The preassembled configuration reduces wiring time.
The cable supports below 24 V AC/DC operation. The maximum current is 3 A. VDR technology provides overvoltage protection. The yellow LED provides visible operating status. Gold-plated contacts support reliable connection quality.
The cable is black, halogen-free PUR. It is intended for industrial automation environments. The operating temperature range is -25…80 °C. IP65 protection helps protect the connector assembly from environmental exposure. The cable construction provides flexibility for machine installation.
0.6 m cable
VVDAC031MSS00,6H03STGH030MSS
M12 straight connector
A-coded
3 contacts
Valve type C
3 × 0.5 mm²
PUR cable
Black colour
5 mm diameter
Halogen-free
Gold-plated contacts
VDR protection
Yellow LED
3 A rating
<24 V AC/DC
IP65
Brass locking
Nickel-plated finish
Valve control
Pneumatic systems
Machine automation
Factory automation
Packaging lines
Actuator control
Industrial machinery
Control cabinets
Field wiring
Production equipment
The 0.6 m length provides balanced routing flexibility. The cable is compact enough for machine-level installations. Gold-plated contacts improve connection reliability. LED indication assists troubleshooting. The VDR provides additional protection against electrical transients.
Maintain correct connector alignment during mating. Avoid excessive cable tension. Secure the cable against vibration. Inspect the connector locking mechanism regularly. Replace the cable if the jacket becomes damaged.
| Specification | E11427 Details |
|---|---|
| Product type | Jumper cable with valve plug |
| Order number | E11427 |
| Model | VVDAC031MSS00,6H03STGH030MSS |
| Length | 0.6 m |
| M12 connector | Straight |
| M12 coding | A |
| M12 contacts | 3 |
| Valve plug | Type C |
| Valve plug design | Angled |
| Cable | PUR |
| Colour | Black |
| Conductors | 3 |
| Cross-section | 0.5 mm² |
| Diameter | 5 mm |
| Construction | 42 × Ø0.1 mm |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Contact finish | Gold-plated |
| Operating voltage | <24 V AC/DC |
| Current | 3 A |
| Protection | VDR |
| Indicator | Yellow LED |
| Temperature | -25…80 °C |
| IP rating | IP65 |
| Locking | Brass, nickel-plated |
| Valve contacts | Nickel-plated brass |
| Torque | 0.7…0.9 Nm |
| Pack quantity | 1 |
