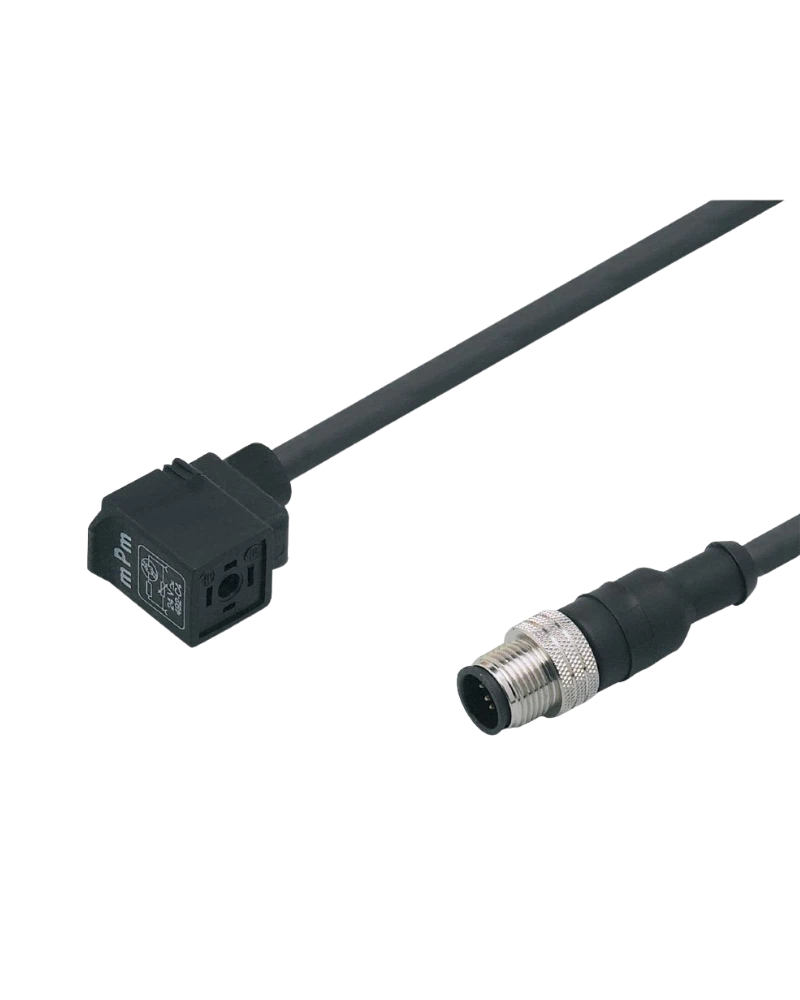

The IFM E11426 is a compact 0.3 m jumper cable with a valve plug for industrial automation applications. It uses a straight A-coded M12 connector and a valve plug type C interface. The short cable length is useful for compact assemblies where components are installed close together. Its PUR cable contains three 0.5 mm² conductors and is halogen-free. Integrated VDR protection and a yellow LED provide additional electrical protection and visual operating indication.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 0.3 m cable length minimizes excess wiring inside compact machine assemblies. The straight M12 connector provides a reliable threaded interface. The valve plug is configured for type C industrial valve connections. PUR moulded construction provides mechanical flexibility around the connector area. The cable is particularly useful for closely positioned valve and control components.
The E11426 supports operation below 24 V AC/DC. Maximum current load is 3 A. A VDR provides overvoltage protection for the connected circuit. A yellow LED provides a visible operating indication. Gold-plated contacts improve long-term electrical connection quality.
The cable uses black halogen-free PUR material. Its industrial construction is designed for factory automation environments. Brass and nickel-plated locking elements provide secure mechanical retention. The cable has an IP65 protection rating. The operating temperature range is -25…80 °C.
0.3 m cable length
VVDAC031MSS00,3H03STGH030MSS
Straight M12 connector
A coding
3 contacts
Valve plug type C
3 × 0.5 mm² cable
PUR jacket
Black cable
5 mm cable diameter
Halogen-free
Silicone-free
Gold-plated contacts
VDR protection
Yellow LED
3 A maximum current
Below 24 V AC/DC
IP65 protection
Compact valve assemblies
Pneumatic control
Factory automation
Machine automation
Solenoid valve wiring
Actuator interfaces
Packaging machinery
Assembly equipment
Industrial control systems
The short 0.3 m length keeps wiring compact. The integrated LED allows quick visual status checking. VDR protection adds electrical robustness. PUR construction provides flexibility during installation. The preassembled connector arrangement reduces field wiring effort.
Avoid sharp cable bends near the connectors. Tighten both mating interfaces correctly. Keep connector surfaces clean and dry. Use suitable cable support where vibration is present. Inspect the cable and LED periodically.
| Specification | E11426 Details |
|---|---|
| Product type | Jumper cable with valve plug |
| Order number | E11426 |
| Model | VVDAC031MSS00,3H03STGH030MSS |
| Cable length | 0.3 m |
| M12 connector | Straight |
| M12 coding | A |
| M12 contacts | 3 |
| Contact material | Gold-plated |
| Valve connection | Type C |
| Valve orientation | Angled |
| Cable material | PUR |
| Cable colour | Black |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| Cable diameter | 5 mm |
| Conductor construction | 42 × Ø0.1 mm |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Operating voltage | <24 V AC/DC |
| Maximum current | 3 A |
| Overvoltage protection | VDR |
| LED | Yellow |
| Ambient temperature | -25…80 °C |
| Protection rating | IP65 |
| Locking material | Brass, nickel-plated |
| Valve contact material | Nickel-plated brass |
| Locking torque | 0.7…0.9 Nm |
| Pack quantity | 1 piece |
