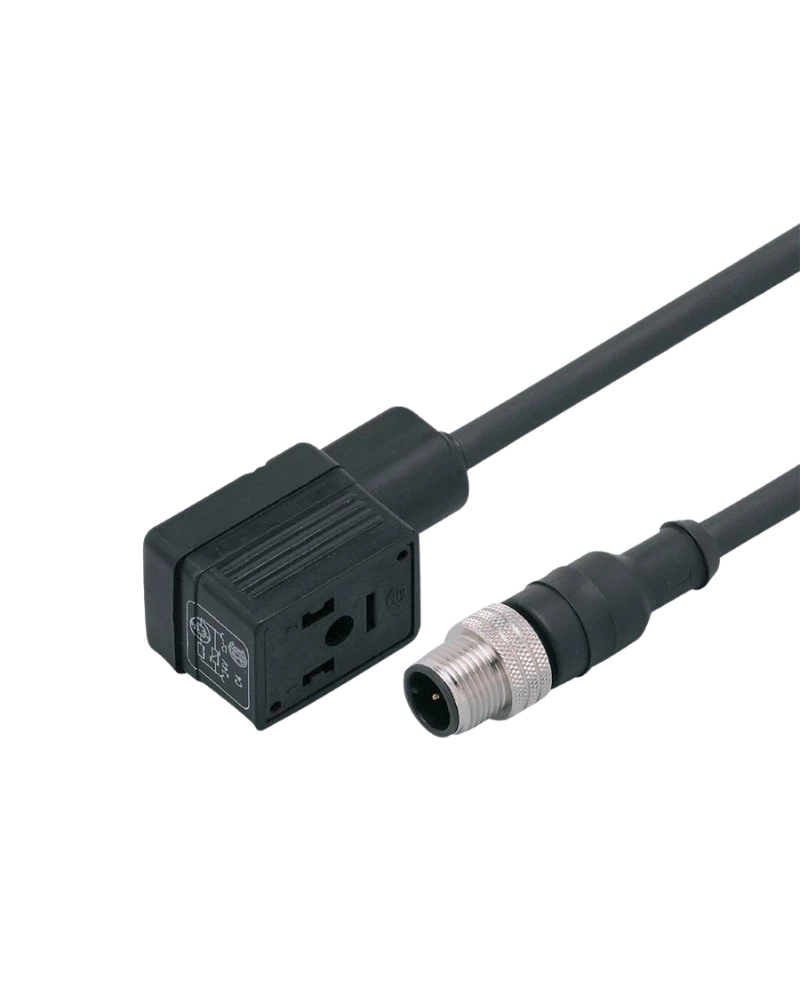

The IFM E11425 is a 5 m jumper cable designed for connecting industrial valves with automation equipment. It uses a straight A-coded M12 connector and a valve plug type B connection. The longer 5 m cable provides additional installation reach for machines with distributed field components. Its black PUR cable contains three 0.5 mm² conductors. Gold-plated contacts and robust locking hardware support dependable industrial connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The cable uses flexible PUR insulation suitable for industrial cable routing. A straight M12 connector provides the sensor-side or controller-side connection. The valve-side connection uses a type B angled industrial valve plug. The 3-pin configuration is designed for valve-control wiring. Nickel-plated brass locking components provide secure mechanical retention.
The E11425 is designed for low-voltage valve-control circuits. It supports operation below 24 V AC/DC and a maximum current of 3 A. Gold-plated contacts help maintain stable electrical contact. Integrated VDR protection helps reduce the effect of voltage transients. The connector arrangement is suitable for industrial switching applications.
The 5 m cable length is useful when valves are positioned away from the control cabinet. PUR construction allows practical routing through machine structures. The cable remains suitable for fixed industrial installation and moderate movement. Halogen-free construction supports cleaner industrial wiring requirements. Its IP-rated connector construction provides protection against environmental exposure.
5 m cable length
VVDAB031MSS0005H03STGH030MSS model
Straight M12 connector
A-coded connection
3 contacts
Valve plug type B
3 × 0.5 mm² cable
PUR cable jacket
Black cable
Approx. 5 mm diameter
Gold-plated contacts
Nickel-plated locking hardware
Halogen-free
Silicone-free
VDR protection
3 A maximum current
Below 24 V AC/DC operation
Industrial valve connection
Industrial solenoid valves
Pneumatic automation
Machine-building systems
Factory automation
Packaging machines
Conveyor systems
Process equipment
Actuator wiring
Remote valve installations
Control-panel field wiring
The 5 m length simplifies installations where field valves are located at a greater distance from the controller. The preconfigured connector arrangement reduces assembly time. PUR insulation provides good flexibility and durability. Gold-plated contacts support consistent signal and power transfer. The robust locking arrangement helps prevent accidental disconnection.
Maintain suitable cable bend radius during installation. Secure long cable runs with appropriate cable supports. Avoid routing beside high-energy power cables where unnecessary. Check locking components after installation. Inspect the PUR jacket periodically for cuts or abrasion.
| Specification | E11425 Details |
|---|---|
| Product type | Jumper cable with valve plug |
| Order number | E11425 |
| Model | VVDAB031MSS0005H03STGH030MSS |
| Cable length | 5 m |
| M12 connector | 1 × M12 |
| M12 orientation | Straight |
| M12 coding | A |
| M12 contacts | 3 |
| Contact finish | Gold-plated |
| Valve plug | Type B |
| Valve plug orientation | Angled |
| Cable material | PUR |
| Cable colour | Black |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| Cable diameter | Approx. 5 mm |
| Cable construction | 42 × Ø0.1 mm |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Operating voltage | <24 V AC/DC |
| Maximum current | 3 A |
| Protection circuit | VDR |
| Temperature range | -25…80 °C |
| Protection rating | IP65 |
| M12 locking | Brass, nickel-plated |
| Valve contacts | Nickel-plated brass |
| Locking torque | 0.7…0.9 Nm |
| Pack quantity | 1 piece |
| Primary use | Valve-control connection |
