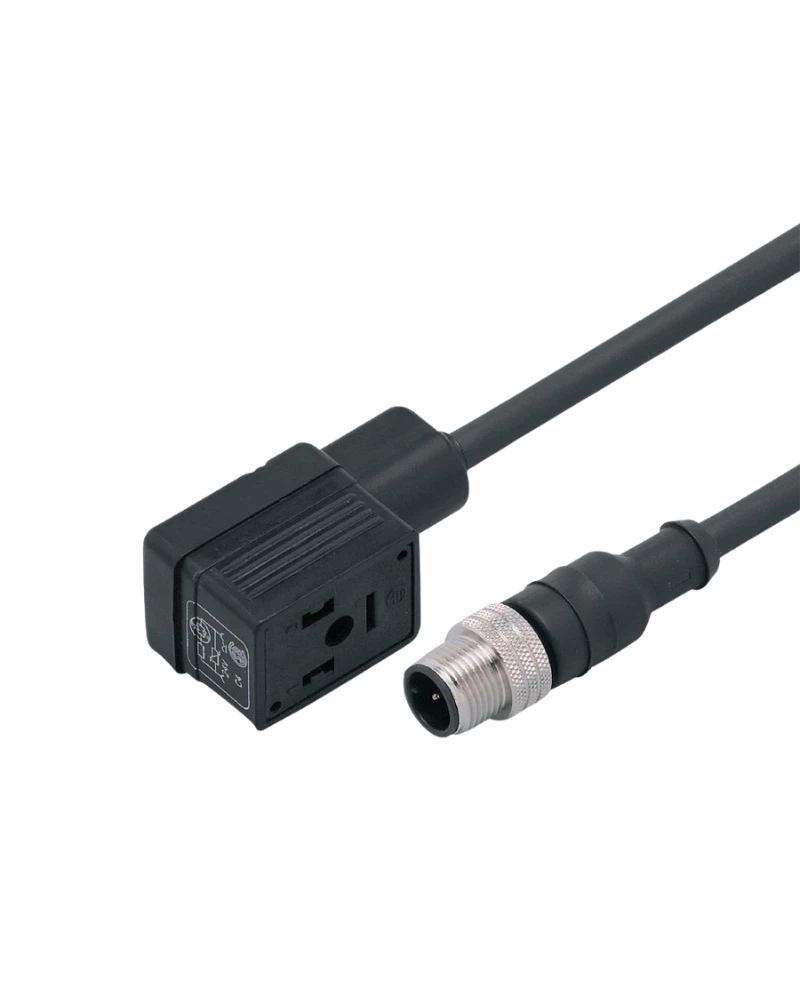

The IFM E11424 is a jumper cable with an industrial valve plug for reliable field connection of valves and automation components. It combines a straight M12 connector with a valve plug connection for compact machine wiring. The cable uses a flexible PUR jacket with three 0.5 mm² conductors. Gold-plated contacts support stable electrical transmission in industrial environments. Its 2 m cable length provides convenient routing between control components and field-mounted valves.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11424 uses a 2 m black PUR cable designed for industrial automation wiring. The cable contains three 0.5 mm² conductors with a compact approximately 5 mm outside diameter. One side uses a straight M12 connector with A coding and three contacts. The opposite connection uses an angled valve plug type B arrangement. The combination provides a practical interface between sensor-level wiring and valve-control equipment.
The cable is designed for low-voltage industrial valve-control applications. Its electrical construction supports operation below 24 V AC/DC with a maximum current capability of 3 A. Gold-plated M12 contacts improve resistance to contact degradation during repeated industrial operation. Integrated VDR protection helps protect the connection against voltage transients. The arrangement is suitable for dependable switching and actuator-control wiring.
The PUR cable jacket provides flexibility for machine installation and repeated cable routing. The connectors use robust industrial materials suitable for factory automation environments. Nickel-plated brass locking components provide secure mechanical retention. The cable is halogen-free and designed for industrial operating conditions. The construction supports reliable installation where vibration and environmental exposure are present.
2 m cable length
VVDAB031MSS0002H03STGH030MSS construction
Straight M12 connector
A-coded M12 connection
3 M12 contacts
Valve plug type B
3 × 0.5 mm² conductors
Black PUR cable
Approx. 5 mm cable diameter
Halogen-free cable
Gold-plated M12 contacts
Nickel-plated brass locking components
Maximum current 3 A
Operating voltage below 24 V AC/DC
VDR overvoltage protection
Industrial automation design
Valve actuator connection
Pneumatic valve control
Factory automation systems
Machine control cabinets
Industrial sensor interfaces
Solenoid valve wiring
Actuator control systems
Packaging machinery
Material handling equipment
Automated production lines
The 2 m cable length provides additional routing flexibility on larger machines. Its preassembled connector configuration reduces wiring complexity during installation. Gold-plated contacts help maintain dependable electrical performance over repeated connection cycles. PUR cable construction provides good flexibility for moving and fixed machine installations. The integrated protective circuit adds additional electrical protection for connected components.
Route the cable away from sharp edges and excessive mechanical stress. Tighten the connector locking components to the recommended torque. Keep mating surfaces clean before installation. Avoid bending the cable directly at the connector outlet. Periodically inspect the cable jacket and connectors for mechanical damage.
| Specification | E11424 Details |
|---|---|
| Product type | Jumper cable with valve plug |
| Order number | E11424 |
| Model | VVDAB031MSS0002H03STGH030MSS |
| Cable length | 2 m |
| M12 connector | 1 × M12 |
| M12 orientation | Straight |
| M12 coding | A-coded |
| M12 contacts | 3 |
| M12 contacts material | Gold-plated |
| Valve connection | Valve plug type B |
| Valve plug orientation | Angled |
| Cable material | PUR |
| Cable colour | Black |
| Cable conductors | 3 |
| Conductor cross-section | 0.5 mm² |
| Cable diameter | Approx. 5 mm |
| Cable construction | 42 × Ø0.1 mm conductors |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Operating voltage | <24 V AC/DC |
| Maximum current | 3 A |
| Protection circuit | VDR |
| Operating temperature | -25…80 °C |
| Protection rating | IP65 |
| Locking material | Brass, nickel-plated |
| Valve contacts | Nickel-plated brass |
| M12 locking torque | 0.7…0.9 Nm |
| Pack quantity | 1 piece |
| Cable application | Industrial valve and automation connection |
