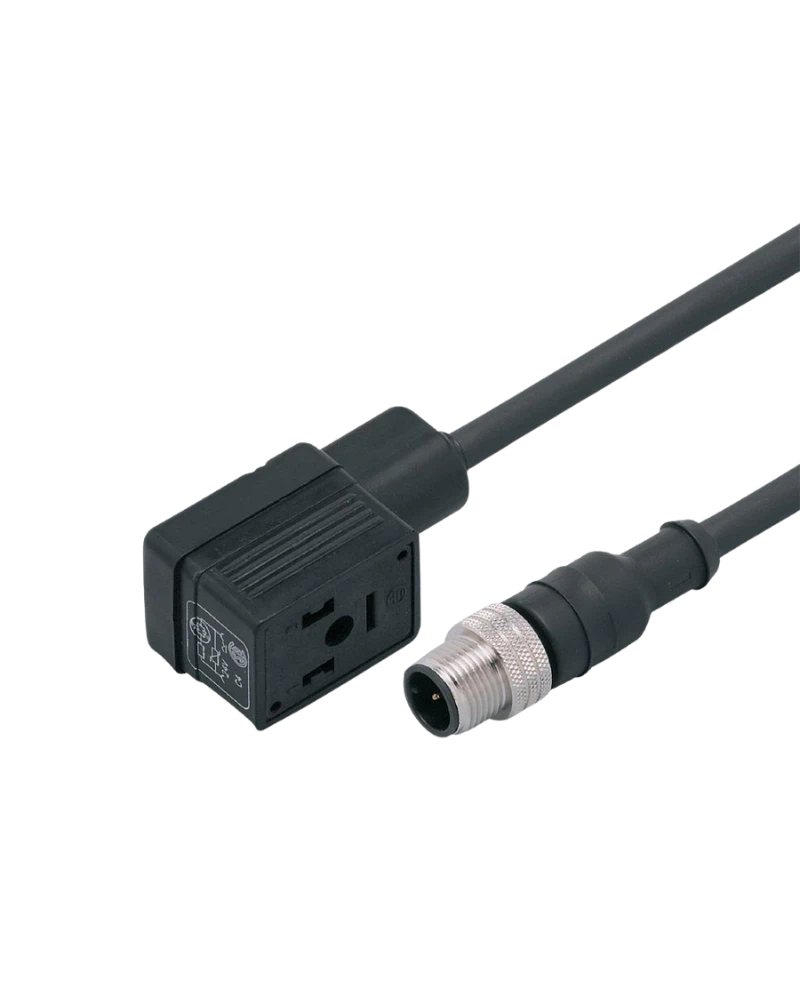

The IFM E11423 is a 1 m jumper cable with valve plug designed for industrial valve connections. It uses a valve type B interface and a straight M12 connector. The cable uses a 1 m PUR, halogen-free black cable with three 0.5 mm² conductors. The M12 connector uses gold-plated contacts and brass nickel-plated locking. The valve-side connector uses nickel-plated brass contacts and the assembly is supplied as one complete cable.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11423 is designed around a valve type B interface. This provides connection to compatible industrial valve equipment. The straight M12 connector provides the automation-side interface. The 1 m cable supports practical machine routing. The pre-assembled construction simplifies installation.
The cable is 1 m long and uses PUR construction. It contains three 0.5 mm² conductors and has a black outer sheath. The cable is halogen-free. The M12 contacts are gold plated. The valve plug contacts use nickel-plated brass.
The M12 connector uses a brass nickel-plated locking arrangement. The specified tightening torque is approximately 0.7–0.9 Nm. The valve plug also uses a brass nickel-plated locking arrangement. The cable is suitable for industrial automation installations. Proper connector engagement is important for reliable operation.
1 m cable
Valve plug type B
Straight M12 connector
PUR cable
Halogen-free
Black cable
3 × 0.5 mm² conductors
Gold-plated M12 contacts
Nickel-plated brass valve contacts
Nickel-plated brass locking
0.7–0.9 Nm M12 torque
Pre-assembled cable
Industrial valve connection
Machine automation
Compact installation
Type B valves
Solenoid valves
Pneumatic automation
Industrial machinery
Machine control
Factory automation
Process automation
Valve monitoring
Production equipment
Automation panels
The E11423 provides a ready-made 1 m valve-to-M12 connection. Its PUR cable supports industrial machine wiring. Gold-plated M12 contacts provide a reliable electrical interface. The pre-assembled cable reduces field termination work. The type B valve interface supports compatible valve systems.
Verify the type B valve interface before installation. Connect the M12 side with correct orientation. Tighten the connector correctly. Route the cable away from moving parts. Inspect both connector interfaces during maintenance.
| Specification | E11423 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11423 |
| Ordering code | VVDAB031MSS0001H03STGH030MSS |
| Product type | Jumper cable |
| Cable length | 1 m |
| Valve plug | Type B |
| M12 design | Straight |
| Cable material | PUR |
| Cable colour | Black |
| Halogen-free | Yes |
| Conductors | 3 |
| Conductor size | 0.5 mm² |
| M12 contacts | Gold plated |
| Valve contacts | Nickel-plated brass |
| M12 locking | Brass, nickel-plated |
| Valve locking | Brass, nickel-plated |
| M12 torque | 0.7–0.9 Nm |
| Valve torque | 0.7–0.9 Nm |
| Connector arrangement | Valve + M12 |
| Installation | Plug connection |
| Mechanical function | Valve connection |
| Electrical function | Valve control |
| Application | Industrial automation |
| Product family | Jumper cables |
| Machine use | Supported |
| Pneumatic use | Supported |
| Factory automation | Supported |
| Cable assembly | Pre-assembled |
| Pack quantity | 1 |
