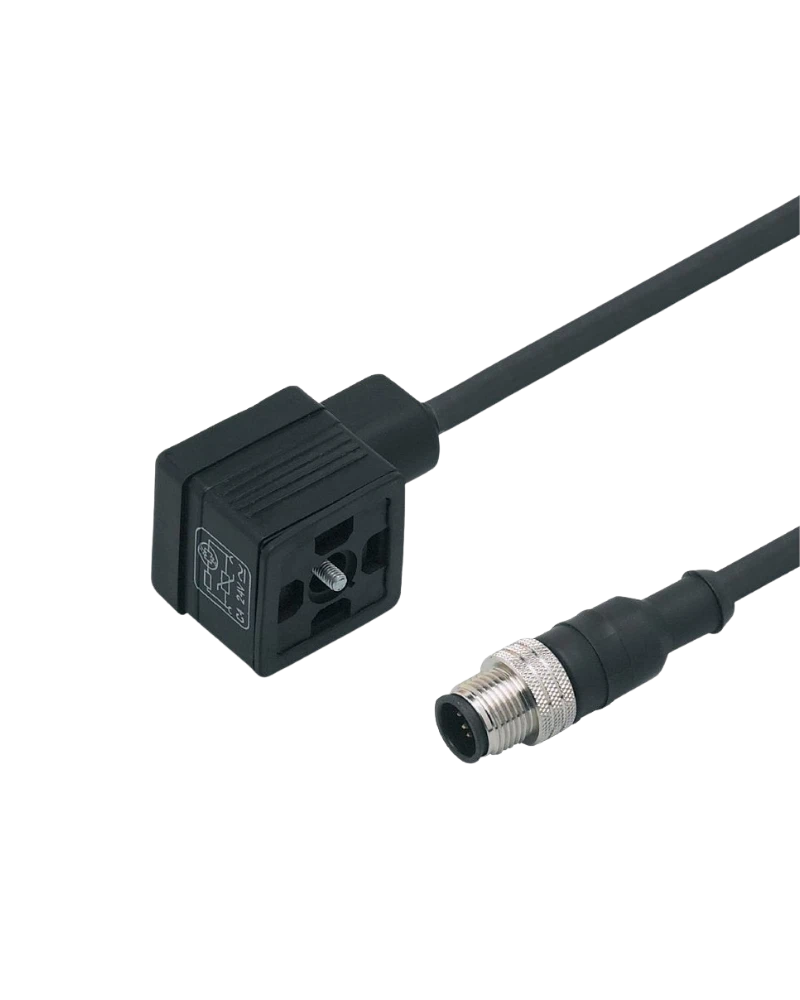

The IFM E11420 is a 5 m jumper cable with valve plug designed for reliable valve connections in industrial environments. It uses a PUR cable and provides a straight M12 connection. The cable supports below 24 V AC/DC and a maximum total current load of 3 A. IP67 protection, a yellow status LED and integrated VDR protection support industrial operation. The 5 m length provides extended routing flexibility for distributed valve installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11420 is suitable for valve installations where greater cable reach is required. Its 5 m cable provides flexibility between the valve and control equipment. The DIN-style valve plug provides the valve-side interface. The straight M12 connector supports automation-system connection. The assembly is supplied ready for installation.
The cable supports below 24 V AC/DC operation and 3 A total current load. Integrated VDR protection helps protect against overvoltage. A yellow LED provides switching-status indication. Gold-plated contacts support reliable M12 connection. These features are useful for industrial valve automation.
The cable uses PUR construction and brass nickel-plated locking components. It provides IP67 protection and operates from -25 to +80 °C. The assembly weighs approximately 271.8 g. A screw and labelling panel are supplied. The long cable should be routed with appropriate mechanical support.
5 m cable
Valve plug type A
Straight M12 connector
Below 24 V AC/DC
3 A current load
IP67 protection
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Yellow LED
VDR protection
Brass nickel-plated locking
Labelling panel
Industrial valve cable
Valve automation
Solenoid valves
Pneumatic equipment
Industrial machinery
Machine control
Process automation
Factory automation
Valve monitoring
Production lines
Automation panels
The E11420 provides extended 5 m reach for industrial valve systems. Its integrated LED supports easy status identification. VDR protection helps protect the connection against voltage transients. PUR construction supports industrial routing. The pre-assembled format simplifies installation.
Plan the 5 m cable route before installation. Support long cable sections where required. Secure the valve plug and M12 connector. Check the LED during commissioning. Inspect the cable for abrasion and mechanical stress.
| Specification | E11420 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11420 |
| Ordering code | VVDAA031MSS0005H03STGH030MSS |
| Product type | Jumper cable |
| Cable length | 5 m |
| Valve plug | Type A |
| M12 design | Straight |
| Cable material | PUR |
| Conductors | 3 × 0.5 mm² |
| Cable diameter | Approx. 5 mm |
| Operating voltage | <24 V AC/DC |
| Current load | 3 A |
| Protection | IP67 |
| Ambient temperature | -25 to +80 °C |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Contact finish | Gold plated |
| LED | Yellow |
| Protective circuit | VDR |
| Housing | PUR |
| Nut | Brass, nickel-plated |
| Weight | Approx. 271.8 g |
| M12 torque | 0.7–0.9 Nm |
| Supplied screw | 1 |
| Labelling panel | 1 |
| Application | Valve connection |
| Product family | Jumper cables |
| Installation | Plug connection |
| Pack quantity | 1 |
