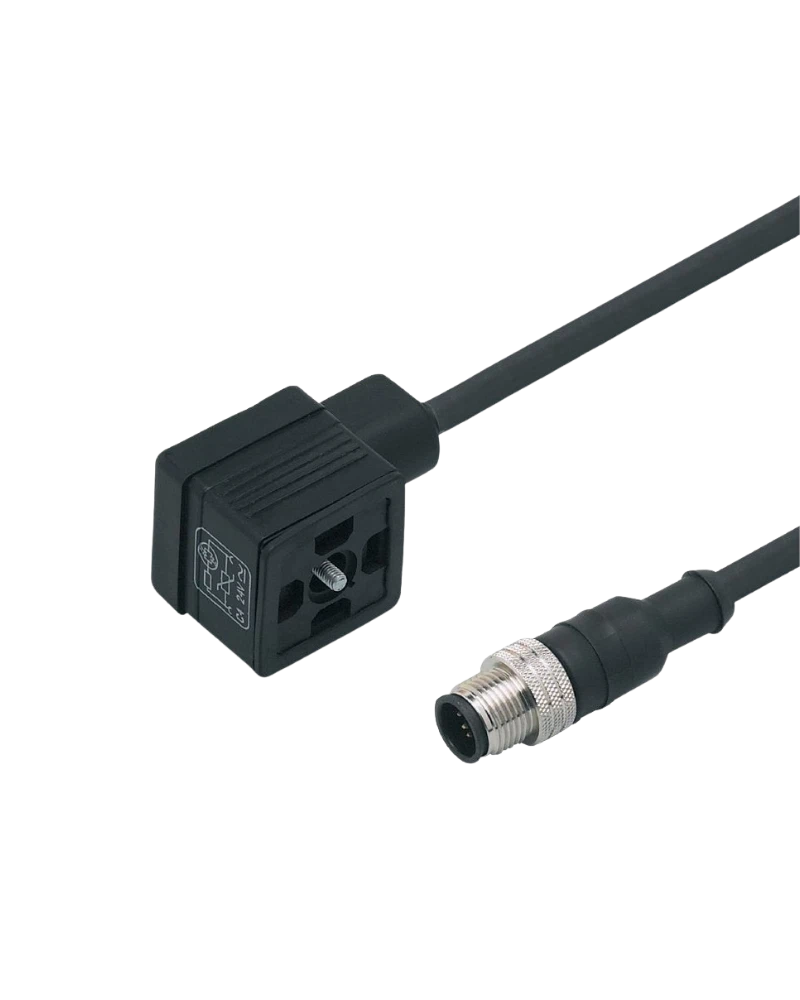

The IFM E11419 is a 2 m jumper cable with valve plug designed for industrial valve connections. It combines a DIN Form A valve plug with a straight M12 connector. The cable uses halogen-free PUR construction and supports 24 V AC/DC operation. A yellow LED provides switching-status indication and integrated VDR protection helps protect against overvoltage. The 2 m cable provides flexible routing between valves and automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11419 provides a pre-assembled valve connection for compatible industrial automation equipment. Its DIN Form A valve plug provides the valve-side interface. The straight M12 connector provides the machine-control connection. The 2 m length supports larger equipment layouts. The assembly reduces the need for manual field termination.
The cable incorporates VDR overvoltage protection. This helps protect the connection against voltage transients associated with valve operation. A yellow LED provides visible switching-status indication. Gold-plated M12 contacts provide a reliable electrical interface. These features make the cable suitable for machine automation.
The 2 m cable provides additional reach compared with the 1 m variant. PUR construction supports industrial machine routing. The black cable is halogen-free and designed for industrial use. The connector should be routed away from mechanical hazards. Proper locking is required for reliable operation.
2 m cable
DIN Form A valve plug
Straight M12 connector
24 V AC/DC
3 A current rating
IP67 protection
PUR cable
Halogen-free
Gold-plated contacts
Yellow LED
VDR overvoltage protection
Brass nickel-plated locking
0.7–0.9 Nm M12 torque
Pre-assembled cable
Industrial valve connection
Solenoid valves
Pneumatic systems
Valve automation
Machine control
Industrial automation
Factory automation
Process equipment
Valve monitoring
Production machinery
Automation panels
The E11419 provides extended 2 m reach for valve-control installations. VDR protection helps handle valve-related voltage transients. The LED simplifies switching-status identification. PUR construction supports industrial routing. The pre-assembled design reduces installation effort.
Confirm the DIN Form A valve connection. Connect the M12 interface correctly. Route the 2 m cable with suitable support. Check LED operation during commissioning. Inspect the cable and connectors during maintenance.
| Specification | E11419 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11419 |
| Ordering code | VVDAA031MSS0002H03STGH030MSS |
| Product type | Jumper cable |
| Cable length | 2 m |
| Valve plug | Type A |
| Standard | DIN EN 175301-803 |
| M12 design | Straight |
| Cable material | PUR |
| Conductors | 3 × 0.5 mm² |
| Cable diameter | Approx. 5 mm |
| Operating voltage | 24 V AC/DC |
| Current rating | 3 A |
| Protection | IP67 |
| Ambient temperature | -25 to +80 °C |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Contact finish | Gold plated |
| LED | Yellow |
| Protective circuit | VDR |
| Housing material | PUR |
| Nut material | Brass, nickel-plated |
| M12 torque | 0.7–0.9 Nm |
| Application | Valve connection |
| Product family | Jumper cables |
| Mechanical function | Valve connection |
| Electrical function | Valve control |
| Installation | Plug-and-connect |
| Pack quantity | 1 |
