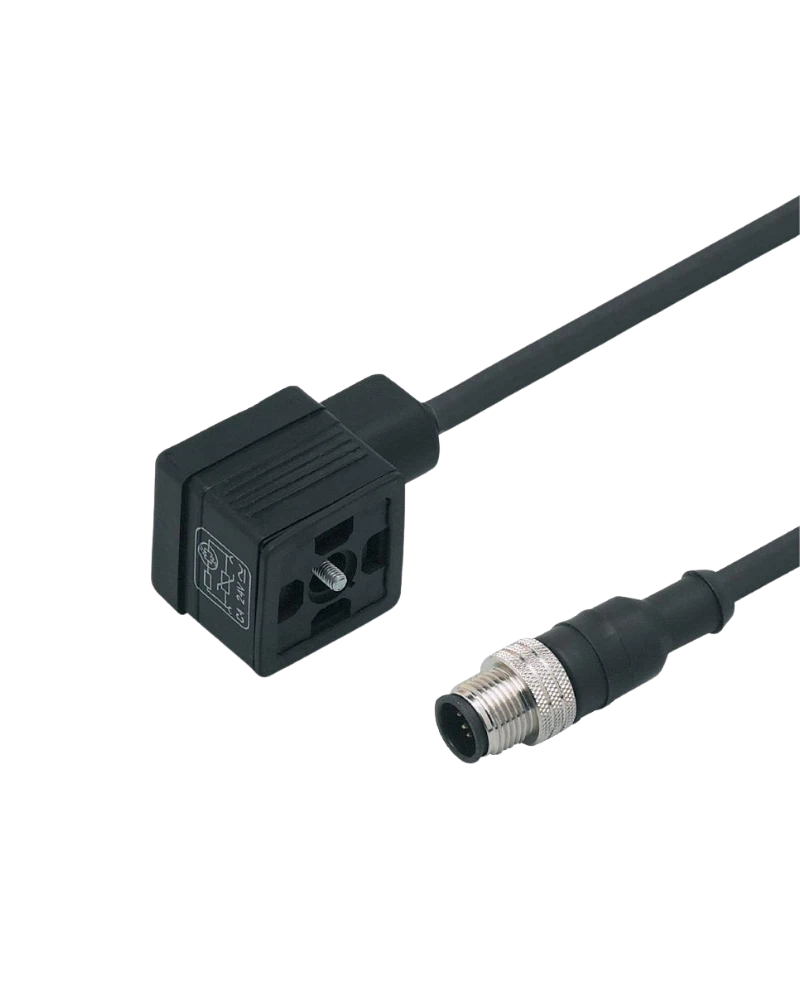

The IFM E11418 is a 1 m jumper cable with valve plug for industrial valve-control applications. It combines a DIN Form A valve plug with a straight M12 connector. The cable uses halogen-free PUR construction and supports 24 V AC/DC applications. A yellow switching-status LED and integrated protective circuitry support convenient operation. The 1 m length provides additional routing flexibility for machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11418 provides a ready-made connection between compatible valve equipment and M12 automation wiring. The DIN Form A valve interface provides a standardized connection arrangement. The straight M12 connector provides secure machine-side connection. The 1 m cable allows flexible positioning. The pre-assembled format reduces wiring work.
The jumper cable is intended for 24 V AC/DC valve circuits. Protective circuitry is integrated into the connector assembly. A yellow LED provides switching-status indication. Gold-plated M12 contacts support reliable electrical connection. The cable is designed for industrial automation environments.
The 1 m length provides more routing flexibility than shorter variants. PUR construction supports practical industrial cable routing. The straight M12 connector is suitable for conventional cable paths. The cable should be supported where necessary. Proper connector locking helps maintain the specified protection.
1 m cable
Valve plug type A
DIN Form A
Straight M12 connector
24 V AC/DC class
IP67 protection
PUR cable
Halogen-free
Gold-plated contacts
Yellow LED
Protective circuitry
Threaded connection
Pre-assembled cable
Industrial valve accessory
Machine automation
Valve control
Solenoid valves
Pneumatic systems
Industrial automation
Machine control
Factory automation
Process equipment
Valve monitoring
Production machinery
Automation panels
The E11418 offers a convenient 1 m connection length for valve installations. Its LED simplifies switching-status identification. Integrated protection supports reliable valve connection. PUR cable construction supports industrial use. The pre-assembled design simplifies installation.
Verify compatibility with the valve and M12 control connection. Route the cable away from moving components. Secure the connector interfaces. Check LED operation during commissioning. Inspect the cable periodically for abrasion.
| Specification | E11418 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11418 |
| Ordering code | VVDAA031MSS0001H03STGH030MSS |
| Product type | Jumper cable |
| Cable length | 1 m |
| Valve plug | Type A |
| Standard | DIN EN 175301-803 |
| M12 design | Straight |
| Cable material | PUR |
| Halogen-free | Yes |
| Contact finish | Gold plated |
| Operating voltage | 24 V AC/DC class |
| Protection | IP67 |
| LED | Yellow |
| Status indication | Switching status |
| Protective circuitry | Integrated |
| Connector locking | Threaded |
| Application | Valve connection |
| Product family | Jumper cables |
| Mechanical function | Valve interface |
| Electrical function | Valve control |
| Machine use | Supported |
| Industrial use | Automation |
| Cable assembly | Pre-assembled |
| Installation | Plug-and-connect |
| Pack quantity | 1 |
| Connection | Valve + M12 |
| Cable routing | 1 m machine connection |
