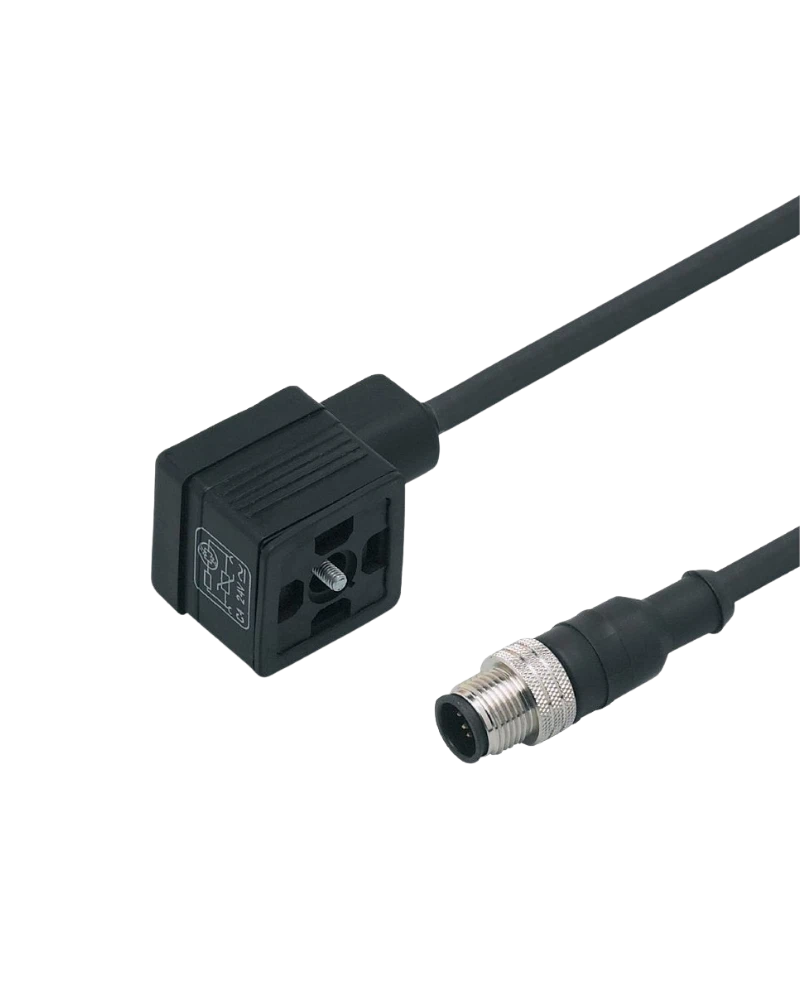

The IFM E11417 is a 0.6 m jumper cable with valve plug designed for industrial valve connections. It combines a DIN Form A valve interface with a straight M12 connector. The cable uses halogen-free PUR construction and supports 24 V AC/DC valve applications. A yellow LED provides switching-status indication and protective circuitry is integrated. The 0.6 m length provides greater installation flexibility than the shorter E11416 version.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11417 provides a standard valve-plug arrangement for compatible industrial valves. Its straight M12 connector provides the machine-control connection. The cable is pre-assembled for quick installation. The 0.6 m length supports moderate separation between the valve and control connection. Correct connector locking should be maintained.
The cable uses PUR material and is halogen-free. Its 0.6 m length provides practical machine-level routing. The M12 connector uses a threaded coupling arrangement. Gold-plated contacts support reliable connection. The cable is designed for industrial automation systems.
A yellow LED provides a visible switching-status indication. Integrated protective circuitry supports valve connection reliability. This allows the operator to identify switching activity at the connector. The LED is useful during commissioning and maintenance. Proper electrical compatibility must be confirmed before installation.
0.6 m cable
Valve plug type A
DIN Form A
Straight M12 connector
24 V AC/DC class
IP67 protection
PUR cable
Halogen-free
Gold-plated contacts
Yellow LED
Protective circuitry
Threaded M12 connection
Pre-assembled
Industrial valve connection
Machine automation
Solenoid valves
Pneumatic automation
Industrial machinery
Valve control
Machine control
Factory automation
Process equipment
Production systems
Valve monitoring
Automation panels
The E11417 provides a practical 0.6 m connection length for valve systems. The LED provides convenient switching-status feedback. Protective circuitry supports valve operation. PUR construction is suitable for industrial cable routing. The pre-assembled design reduces installation time.
Verify the valve and M12 interfaces. Route the 0.6 m cable without sharp bends. Secure both connectors correctly. Check the yellow LED during commissioning. Inspect the cable and connector bodies periodically.
| Specification | E11417 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11417 |
| Ordering code | VVDAA031MSS00,6H03STGH030MSS |
| Product type | Jumper cable |
| Cable length | 0.6 m |
| Valve plug | Type A |
| Standard | DIN EN 175301-803 |
| M12 design | Straight |
| Cable material | PUR |
| Halogen-free | Yes |
| Contact finish | Gold plated |
| Operating voltage | 24 V AC/DC class |
| Protection | IP67 |
| LED | Yellow |
| Status indication | Switching status |
| Protective circuit | Integrated |
| Locking | Threaded |
| Application | Valve connection |
| Product family | Jumper cables |
| Mechanical function | Valve connection |
| Electrical function | Valve control |
| Machine use | Supported |
| Industrial use | Automation |
| Pneumatic use | Supported |
| Cable type | Pre-assembled |
| Installation | Plug connection |
| Pack quantity | 1 |
| Connection arrangement | Valve + M12 |
