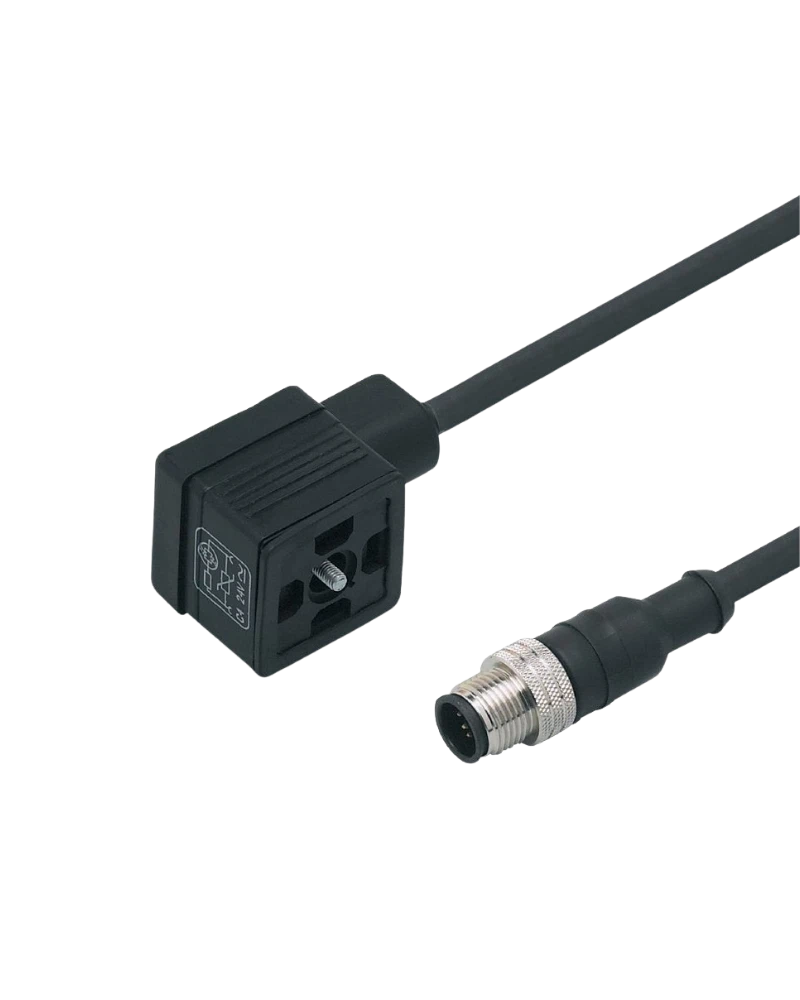

The IFM E11416 is a 0.3 m jumper cable with valve plug designed for industrial valve connections. It connects a valve plug type A interface with a straight M12 connector. The cable uses a halogen-free PUR construction and supports 24 V AC/DC applications. It provides IP67 protection and includes a visible switching-status LED. The assembly also incorporates protective circuitry for reliable valve connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11416 is designed for reliable field connection of compatible valves. The valve plug uses a DIN-style Form A interface. The opposite end provides a straight M12 connector. The 0.3 m cable keeps the connection compact. The pre-assembled arrangement reduces field wiring work.
The jumper cable is designed for 24 V AC/DC valve applications. It includes protective circuitry for the connected valve system. A yellow LED provides switching-status indication. Gold-plated M12 contacts support reliable connection. The cable is halogen-free and suitable for industrial automation.
The cable uses PUR construction and a compact 0.3 m length. The M12 connector uses a threaded locking mechanism. The valve connection provides a defined interface for compatible valves. IP67 protection supports industrial installations. The assembly is suitable for machine-level valve wiring.
0.3 m jumper cable
Valve plug type A
DIN Form A interface
Straight M12 connector
24 V AC/DC class
IP67 protection
PUR cable
Halogen-free
Gold-plated M12 contacts
Switching-status LED
Protective circuitry
Compact connection
Pre-assembled cable
Industrial valve connection
Machine automation accessory
Solenoid valves
Pneumatic systems
Industrial automation
Machine control
Valve monitoring
Factory automation
Process equipment
Automation panels
Valve actuators
Production machinery
The E11416 provides a compact valve-to-M12 connection. Its 0.3 m cable reduces excess wiring near the valve. The integrated LED helps identify switching status. Protective circuitry supports the valve connection. The pre-assembled design simplifies installation.
Confirm the valve plug type before installation. Connect the M12 side correctly. Secure the valve plug mechanically. Check the LED status during commissioning. Inspect the cable for mechanical damage during maintenance.
| Specification | E11416 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11416 |
| Ordering code | VVDAA031MSS00,3H03STGH030MSS |
| Product type | Jumper cable |
| Cable length | 0.3 m |
| Valve plug | Type A |
| Valve standard | DIN EN 175301-803 |
| M12 connector | Straight |
| Cable material | PUR |
| Halogen-free | Yes |
| Contact finish | Gold plated |
| Operating voltage | 24 V AC/DC class |
| Protection | IP67 |
| LED | Yellow |
| Switching indication | Yes |
| Protective circuitry | Integrated |
| Connector locking | Threaded |
| Application | Valve connection |
| Product family | Jumper cables |
| Mechanical function | Valve connection |
| Electrical function | Valve control |
| Industrial use | Automation |
| Machine use | Supported |
| Pneumatic use | Supported |
| Cable assembly | Pre-assembled |
| Installation | Plug-and-connect |
| Pack quantity | 1 |
| Connection type | Valve + M12 |
