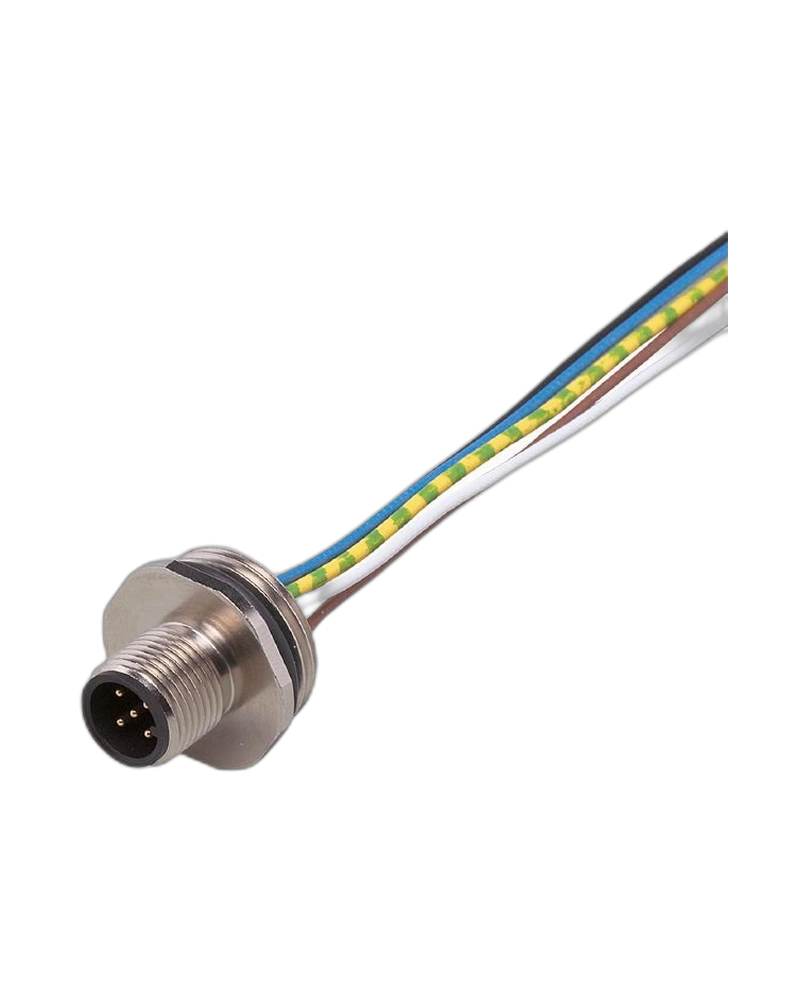

The IFM E11315 is an M20 male receptacle with an M12 connector for industrial equipment connections. It uses a 0.5 m PVC cable with four 0.25 mm² conductors plus one 0.5 mm² conductor. The connector supports below 125 V AC/DC and provides IP68 protection. Its nickel-plated brass housing provides robust mechanical construction. The straight M12 interface uses A coding and supports five-contact connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11315 provides an M20 mounting interface combined with a straight M12 connector. This allows compatible M12 equipment to be integrated into M20 panel or enclosure arrangements. The adapter provides a defined mechanical connection point. The straight configuration simplifies cable routing. The M12 connector uses A coding.
The assembly supports below 125 V AC/DC. The 0.5 m PVC cable contains four 0.25 mm² conductors plus one 0.5 mm² conductor. The M12 connector provides five contacts. The connector tightening torque is specified at up to 0.6 Nm. The M20 mounting interface has a tightening torque up to 2 Nm.
The housing uses nickel-plated brass. The adapter measures approximately 18 × 18 × 19 mm. It weighs approximately 27.3 g. IP68 protection supports demanding industrial installations. The product is supplied as one piece.
M20 mounting interface
M12 connector
5-contact connection
A coding
Straight design
0.5 m PVC cable
4 × 0.25 mm² conductors
1 × 0.5 mm² conductor
Below 125 V AC/DC
IP68 protection
Nickel-plated brass housing
18 × 18 × 19 mm dimensions
Approx. 27.3 g weight
M20 mounting
Industrial adapter
Industrial sensor connections
M20 enclosures
M12 equipment
Control cabinets
Machine automation
Factory automation
Panel wiring
Sensor interfaces
Automation equipment
Industrial connection systems
The E11315 combines M20 panel mounting with a five-contact M12 connection. Its 0.5 m cable provides practical connection distance. Nickel-plated brass construction supports robust mechanical installation. IP68 protection supports industrial environments. The pre-assembled design simplifies installation.
Install the M20 mounting interface into the compatible enclosure. Route the cable carefully. Connect the M12 interface with correct orientation. Apply the specified tightening limits. Inspect the adapter and cable during maintenance.
| Specification | E11315 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11315 |
| Ordering code | ESTGH050MSS00,5E05 |
| Product type | Male receptacle |
| Mounting thread | M20 |
| Connector | M12 |
| Contacts | 5 |
| Coding | A |
| Design | Straight |
| Operating voltage | <125 V AC/DC |
| Protection | IP68 |
| Ambient temperature | -25 to +85 °C |
| Cable length | 0.5 m |
| Cable material | PVC |
| Conductors | 4 × 0.25 mm² |
| Additional conductor | 1 × 0.5 mm² |
| Housing | Brass |
| Surface | Nickel plated |
| Dimensions | 18 × 18 × 19 mm |
| Weight | Approx. 27.3 g |
| M12 tightening torque | Up to 0.6 Nm |
| M20 tightening torque | Up to 2 Nm |
| Mounting | Bulkhead |
| Application | Industrial automation |
| Product family | Adapter plugs |
| Mechanical function | Panel connection |
| Electrical function | M12 connection |
| Pack quantity | 1 |
| Connector interface | M12 |
