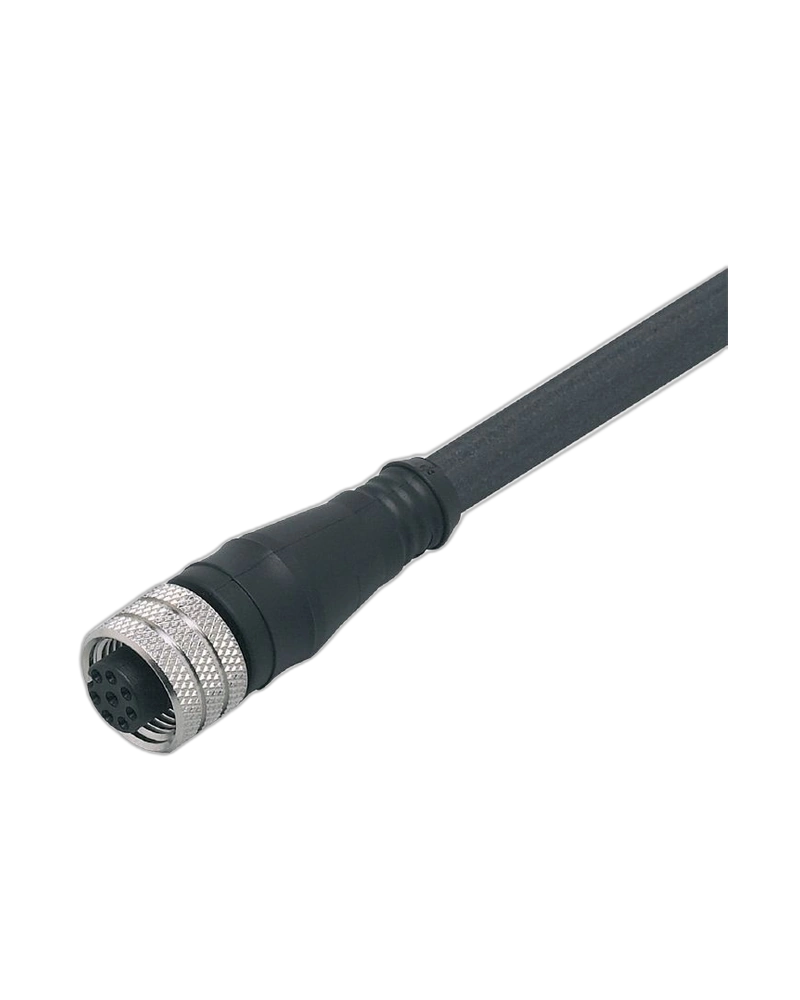

The IFM E11311 is a 10 m connecting cable with an 8-pole M12 socket for industrial sensor applications. It uses a black PUR cable with eight 0.25 mm² conductors. The cable supports 30 V AC / 36 V DC operation and provides IP68 protection. Its straight connector uses a PUR body and nickel-plated brass nut. The cable is halogen-free and designed for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11311 provides an 8-pole M12 socket interface for compatible sensors. Its straight design supports conventional cable routing. The connector body uses PUR material for mechanical support. The nickel-plated brass nut provides secure locking. Correct pin wiring should always be verified for 8-pole sensors.
The 10 m cable length provides useful reach between remote sensors and control equipment. The cable uses eight 0.25 mm² conductors. Its approximate diameter is 6.2 mm. PUR construction provides a practical industrial cable solution. The black sheath provides standard machine-cabling appearance.
The E11311 provides IP68 protection and operates from -25 to +80 °C. Its halogen-free cable construction is suitable for specified industrial installations. The cable supports 30 V AC / 36 V DC. The connector tightening torque is approximately 0.7–0.9 Nm. The complete cable assembly is supplied as one piece.
8-pole M12 socket
10 m cable
Straight connector
PUR cable
8 × 0.25 mm² conductors
30 V AC
36 V DC
IP68 protection
-25 to +80 °C
Halogen-free
Black cable
Ø6.2 mm cable
PUR connector body
Nickel-plated brass nut
0.7–0.9 Nm tightening torque
8-pole sensors
Industrial automation
Factory automation
Machine monitoring
Sensor networks
Production machinery
Control systems
Process equipment
Automation panels
Long-distance sensor wiring
The E11311 provides long-distance connectivity for 8-pole M12 sensors. PUR construction supports industrial cable routing. IP68 protection supports demanding environments. The straight connector simplifies conventional installations. The pre-assembled cable reduces field termination requirements.
Verify the sensor wiring before connection. Align the M12 connector correctly. Tighten the knurled nut within the recommended range. Route the 10 m cable with suitable support. Inspect the cable for abrasion during maintenance.
| Specification | E11311 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11311 |
| Ordering code | ADOGH080MSS0010H08 |
| Product type | Connecting cable with socket |
| Connector | M12 |
| Pole count | 8 |
| Design | Straight |
| Cable length | 10 m |
| Cable material | PUR |
| Cable colour | Black |
| Conductors | 8 |
| Conductor size | 0.25 mm² |
| Cable diameter | 6.2 mm |
| Electrical design | AC/DC |
| Operating voltage | 30 V AC / 36 V DC |
| Protection | IP68 |
| Ambient temperature | -25 to +80 °C |
| Body material | PUR |
| Nut material | Brass, nickel-plated |
| Halogen-free | Yes |
| Tightening torque | 0.7–0.9 Nm |
| Application | Industrial automation |
| Product family | Connection cables |
| Mechanical function | Sensor connection |
| Electrical function | Signal/power connection |
| Installation | Plug connection |
| Pack quantity | 1 |
| Connector interface | M12 |
| Cable construction | Multi-core |
