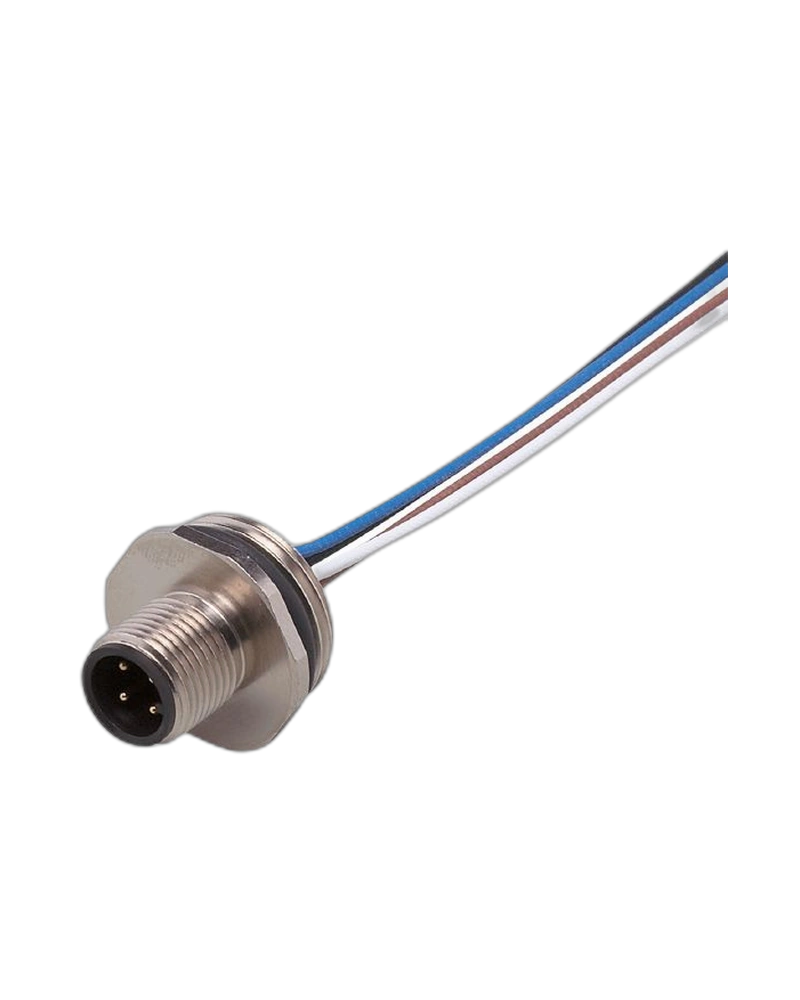

The IFM E11295 is a straight M20-to-M12 adapter plug designed for industrial panel and enclosure connections. It uses a 0.12 m PVC cable with four 0.25 mm² conductors. The adapter supports below 45 V AC and below 70 V DC. IP68 protection supports demanding industrial environments. Its nickel-plated brass housing provides a robust mechanical interface for M20 installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11295 connects an M20 mounting arrangement to a compatible M12 interface. Its straight design supports conventional equipment installation. The threaded M20 body provides secure mechanical mounting. The M12 interface provides a compact sensor connection. The assembly is supplied as one complete adapter.
The adapter supports below 45 V AC and below 70 V DC. It uses four 0.25 mm² conductors. The 0.12 m PVC cable provides a short connection distance. IP68 protection supports industrial installations. The four-core arrangement is suitable for compatible M12 equipment.
The housing is made from nickel-plated brass. The M20 mounting interface provides a defined panel connection. The component weighs approximately 18 g. Its straight design supports simple cable routing. The compact assembly is useful for industrial automation equipment.
M20 mounting interface
M12 connector
4 contacts
Straight design
0.12 m PVC cable
4 × 0.25 mm² conductors
Below 45 V AC
Below 70 V DC
IP68 protection
Nickel-plated brass housing
Compact adapter
Panel mounting
Bulkhead connection
Industrial automation accessory
Pre-assembled cable
M20 enclosures
M12 sensor connections
Control cabinets
Industrial automation
Machine wiring
Sensor interfaces
Panel connections
Factory automation
Electrical equipment
Automation systems
The E11295 provides a compact M20-to-M12 connection solution. Its 0.12 m cable reduces unnecessary wiring length. Nickel-plated brass construction provides robust mechanical support. IP68 protection supports industrial enclosure applications. The straight design simplifies conventional installation.
Check the M20 mounting thread before installation. Install the adapter without cross-threading. Connect the M12 interface correctly. Route the short cable without excessive bending. Inspect the connector and mounting area during maintenance.
| Specification | E11295 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11295 |
| Ordering code | ESTGH040MSS0,12E04 |
| Product type | Adapter plug |
| Mounting thread | M20 |
| Connector | M12 |
| Contacts | 4 |
| Coding | A |
| Design | Straight |
| Electrical design | AC/DC |
| AC voltage | <45 V |
| DC voltage | <70 V |
| Protection | IP68 |
| Ambient temperature | -25 to +85 °C |
| Cable length | 0.12 m |
| Cable material | PVC |
| Conductors | 4 |
| Conductor size | 0.25 mm² |
| Housing material | Brass |
| Surface | Nickel plated |
| Weight | Approx. 18 g |
| Mounting | Bulkhead |
| Mechanical function | Panel connection |
| Electrical function | M12 adaptation |
| Application | Industrial automation |
| Product family | Adapter plugs |
| Cable entry | M20 |
| Pack quantity | 1 |
| Installation | Panel/enclosure |
