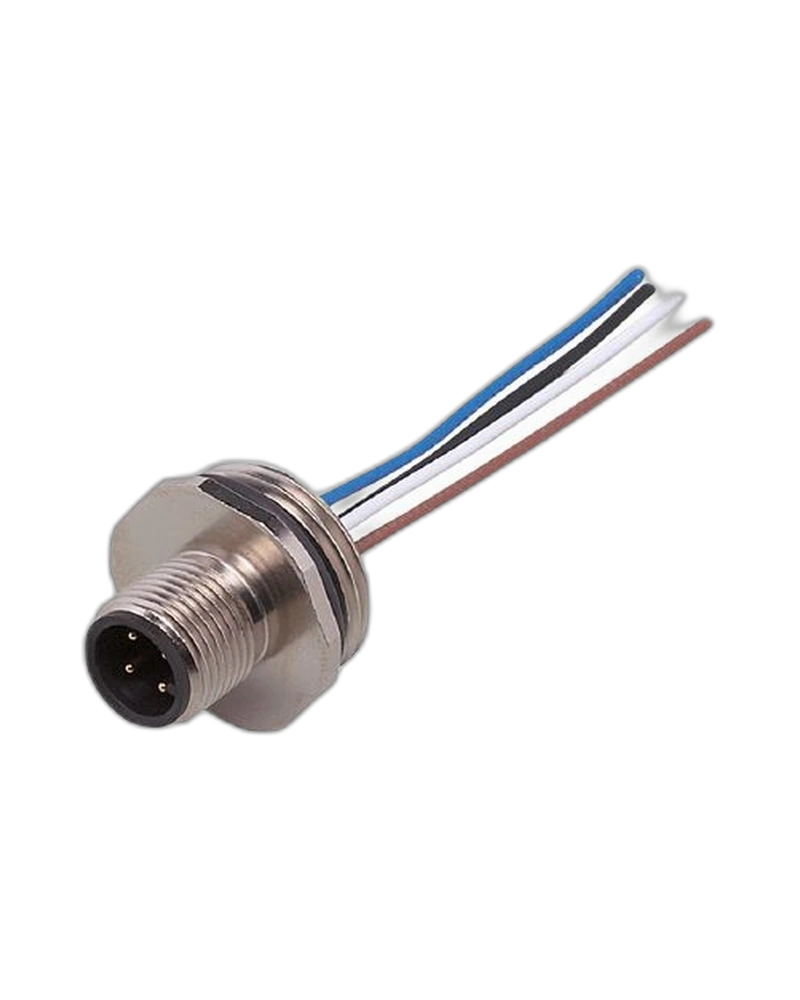

The IFM E11293 is a straight M20-to-M12 adapter plug designed for panel and enclosure connections. It combines an M20 mounting thread with a straight M12 A-coded connector. The assembly uses a short 0.05 m PVC cable with four 0.25 mm² conductors. It supports below 250 V AC/DC and provides IP68 protection. The nickel-plated brass housing provides a robust industrial mounting structure.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11293 provides a practical interface between an M20 mounting point and an M12 connector. Its straight design supports conventional panel installation. The M20 thread provides secure mechanical mounting. The M12 interface provides a standardized sensor connection. This makes the adapter useful in industrial enclosures and equipment.
The adapter supports below 250 V AC/DC. It uses four 0.25 mm² conductors in the 0.05 m PVC cable. The M12 connector is A-coded and straight. The short cable length keeps the installation compact. IP68 protection supports demanding industrial environments.
The housing uses nickel-plated brass construction. The mounting thread is M20. The adapter weighs approximately 22.6 g. Its compact construction is designed for panel and enclosure installation. The connector is supplied as one piece.
M20 mounting thread
M12 connector
4 contacts
A coding
Straight design
0.05 m PVC cable
4 × 0.25 mm² conductors
Below 250 V AC/DC
IP68 protection
Nickel-plated brass housing
Compact construction
Panel mounting
Bulkhead connection
Industrial adapter
Pre-assembled connection
Control cabinets
Industrial enclosures
M20 cable entries
M12 sensor connections
Machine automation
Factory automation
Sensor interfaces
Panel wiring
Automation equipment
Electrical equipment
The E11293 simplifies M20-to-M12 equipment integration. Its short cable keeps the connection compact. The nickel-plated brass housing provides robust mechanical construction. IP68 protection supports industrial enclosure installations. The adapter reduces the need for custom panel wiring.
Confirm M20 mounting compatibility. Install the adapter without damaging the thread. Connect the M12 interface correctly. Tighten the mounting connection securely. Inspect the cable and sealing arrangement during maintenance.
| Specification | E11293 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11293 |
| Ordering code | ESTGH040MSS0,05E04 |
| Product type | Adapter plug |
| Mounting interface | M20 |
| Connector interface | M12 |
| Connector design | Straight |
| Coding | A |
| Contacts | 4 |
| Electrical design | AC/DC |
| Operating voltage | <250 V AC/DC |
| Protection | IP68 |
| Ambient temperature | -25 to +85 °C |
| Cable length | 0.05 m |
| Cable material | PVC |
| Conductors | 4 |
| Conductor size | 0.25 mm² |
| Housing | Brass |
| Surface | Nickel plated |
| Weight | Approx. 22.6 g |
| Mounting | Bulkhead |
| Mechanical function | Panel connection |
| Electrical function | M12 adaptation |
| Application | Industrial automation |
| Product family | Adapter plugs |
| Cable entry | M20 |
| Connector | M12 |
| Pack quantity | 1 |
| Installation | Panel/enclosure |
