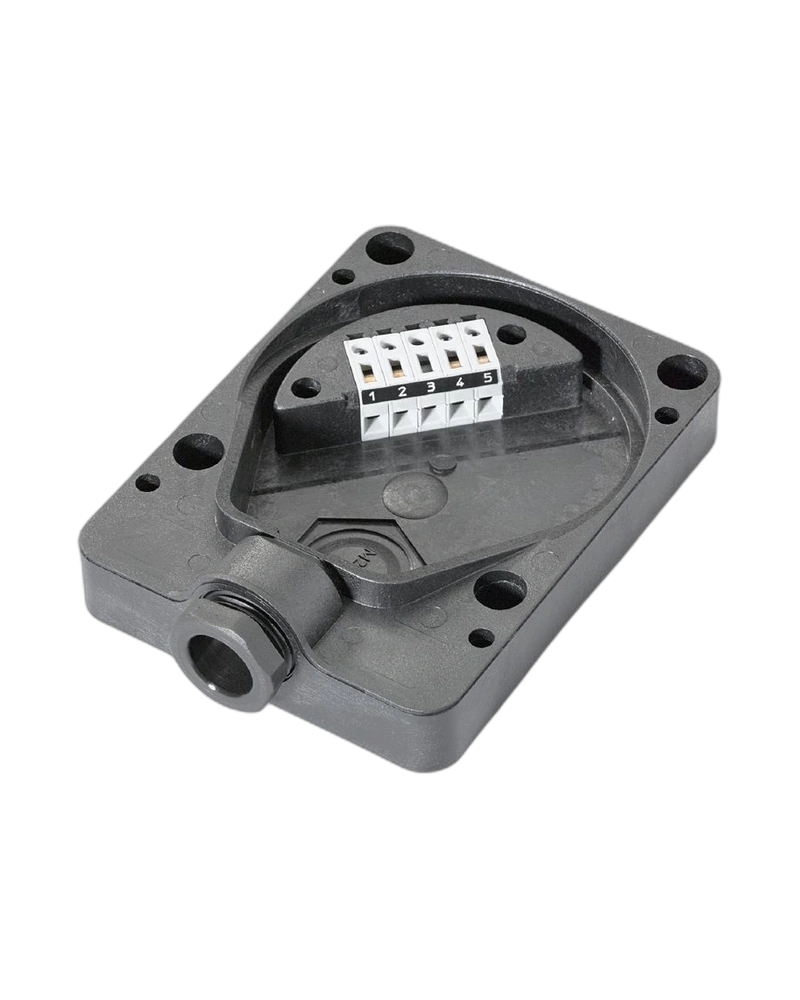

The IFM E11290 is a mounting base designed for rectangular IDE/KDE sensors. It provides a defined installation position and allows quick sensor replacement without repeated realignment. The base uses PPE material and includes a cable gland arrangement for M20 installation. Its terminals accommodate conductors up to 2.5 mm². The component weighs approximately 65.2 g and measures 80 × 105 × 16 mm.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11290 provides a stable mounting position for rectangular sensors. Its design helps maintain repeatable sensor alignment. This reduces the need for readjustment during sensor replacement. The mounting base can be installed on a suitable machine surface. It is suitable for industrial automation installations.
The mounting base uses an M20 cable-gland arrangement. The terminal connection supports conductors up to 2.5 mm². This provides a practical combination of mechanical mounting and electrical connection. The enclosure arrangement helps protect the sensor connection. Proper cable entry installation is recommended.
The E11290 is manufactured from PPE material. Its dimensions are approximately 80 × 105 × 16 mm. The component weighs approximately 65.2 g. The mounting base is designed for quick surface installation. Its construction also helps provide protection against mechanical damage.
IDE/KDE mounting base
Rectangular sensor mounting
Defined installation position
M20 cable gland
PPE material
65.2 g weight
80 × 105 × 16 mm dimensions
Terminals up to 2.5 mm²
Quick sensor replacement
Reduced realignment
Mechanical protection
Surface mounting
Industrial sensor accessory
Stable sensor positioning
Maintenance-friendly design
IDE sensors
KDE sensors
Rectangular sensors
Industrial automation
Machine monitoring
Position sensing
Production machinery
Control systems
Sensor replacement
Automation equipment
The E11290 simplifies installation of compatible rectangular sensors. Its defined position helps maintain repeatable sensor alignment. The M20 cable-entry arrangement supports organized wiring. The base also provides mechanical protection for the sensor assembly. Quick replacement can reduce maintenance time.
Secure the base on a suitable machine surface. Route the cable through the M20 entry. Connect conductors within the 2.5 mm² terminal capacity. Install the sensor into the defined position. Inspect the mounting base and cable entry periodically.
| Specification | E11290 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11290 |
| Product type | Mounting base |
| Product name | MOUNTING BASE M20 IDE/KDE |
| Sensor family | IDE/KDE |
| Sensor type | Rectangular |
| Material | PPE |
| Weight | 65.2 g |
| Dimensions | 80 × 105 × 16 mm |
| Cable gland | M20 |
| Terminal capacity | Up to 2.5 mm² |
| Installation | Surface mounting |
| Position | Defined |
| Sensor replacement | Quick |
| Realignment | Reduced |
| Mechanical protection | Yes |
| Electrical connection | Terminals |
| Mounting function | Sensor fixation |
| Product family | Mounting bases |
| Accessory category | Sensor accessory |
| Application | Position sensing |
| Machine use | Supported |
| Automation use | Supported |
| Cable entry | M20 |
| Construction | PPE |
| Maintenance | Inspection |
| Pack quantity | 1 |
| Mounting surface | Machine surface |
| Industrial use | Automation |
