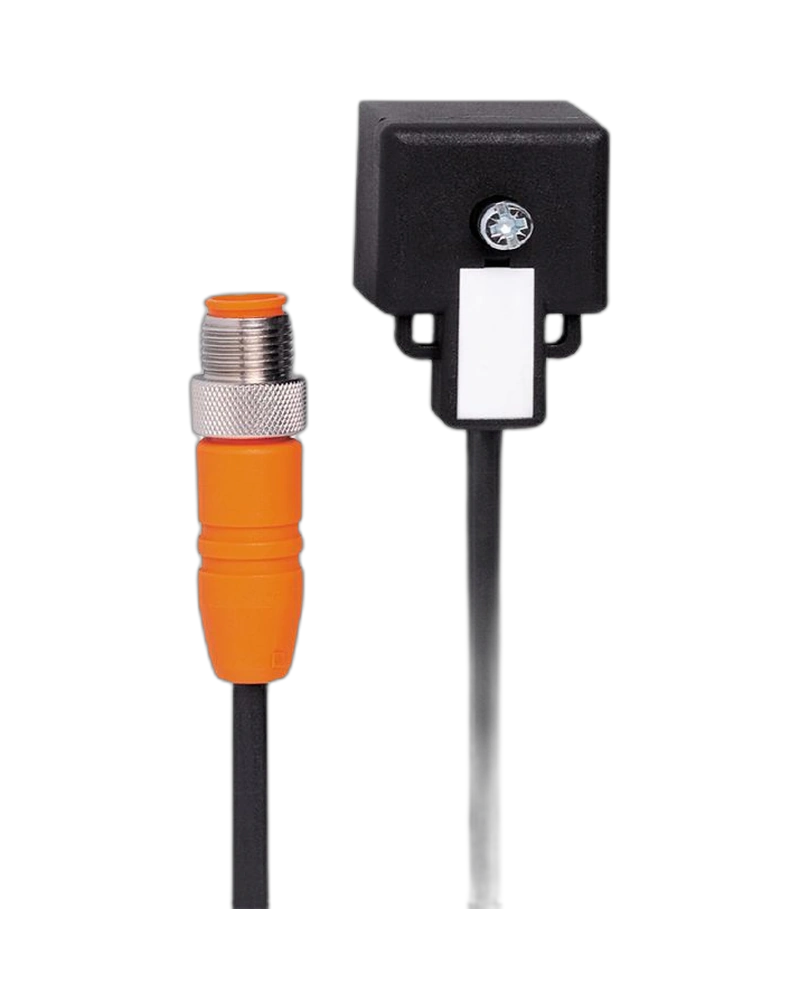

The IFM E11277 is a 0.75 m jumper cable with valve plug designed for industrial valve connections. It uses a PUR cable and provides a compact connection between valve equipment and M12-based control systems. The cable supports below 24 V AC/DC operation. IP67 and IP69K protection provide strong environmental protection for suitable installations. Its TPU housing and nickel-plated brass locking components provide robust mechanical construction.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11277 is designed for valve connection applications in industrial automation. The valve-plug interface provides a secure connection to compatible valve equipment. The M12 side supports connection to compatible automation devices. The cable is supplied as a ready-made assembly. This reduces the need for field cable termination.
The cable length is 0.75 m and uses PUR construction. The housing uses TPU material. Nickel-plated brass components provide mechanical locking. The cable assembly weighs approximately 85 g. The compact length is suitable for short-distance valve connections.
The E11277 supports below 24 V AC/DC operation. It provides IP67 and IP69K protection. This makes the jumper suitable for industrial environments requiring strong ingress protection. The cable is designed for reliable field valve connections. Correct connector engagement is important for maintaining the protection level.
0.75 m jumper cable
Valve plug
M12 connection
PUR cable
TPU housing
Below 24 V AC/DC
IP67 protection
IP69K protection
Nickel-plated brass locking
Approx. 85 g weight
Industrial valve connection
Pre-assembled cable
Compact design
Panel labelling provision
Machine automation accessory
Valve automation
Pneumatic systems
Industrial machinery
Factory automation
Machine control
Valve monitoring
Process equipment
Automation panels
Sensor-valve connections
Production machinery
The E11277 provides a ready-to-use valve connection cable. Its 0.75 m length is suitable for compact machine installations. IP67/IP69K protection supports demanding industrial environments. The pre-assembled design reduces wiring work. The compact construction helps keep valve wiring organized.
Confirm the valve plug and M12 interfaces before installation. Route the cable away from moving parts. Secure both connector interfaces correctly. Avoid excessive cable bending near the connector. Inspect the cable during preventive maintenance.
| Specification | E11277 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11277 |
| Ordering code | VVDAA040MSS0,75H03STGH020MSS |
| Product type | Jumper cable |
| Application | Valve connection |
| Cable length | 0.75 m |
| Cable material | PUR |
| Housing material | TPU |
| Locking material | Brass, nickel-plated |
| Operating voltage | <24 V AC/DC |
| Protection | IP67 |
| Additional protection | IP69K |
| Weight | Approx. 85 g |
| Connector arrangement | Valve plug + M12 |
| Cable assembly | Pre-assembled |
| Mounting | Plug connection |
| Mechanical function | Valve connection |
| Electrical function | Control connection |
| Industrial use | Automation |
| Valve application | Supported |
| Sensor/control application | Supported |
| Labelling panel | Supplied |
| Screw | Supplied |
| Product family | Jumper cables |
| Connection technology | Valve plug |
| Cable routing | Short-distance |
| Installation | Plug-and-connect |
| Pack quantity | 1 |
| Application category | Industrial valve automation |
