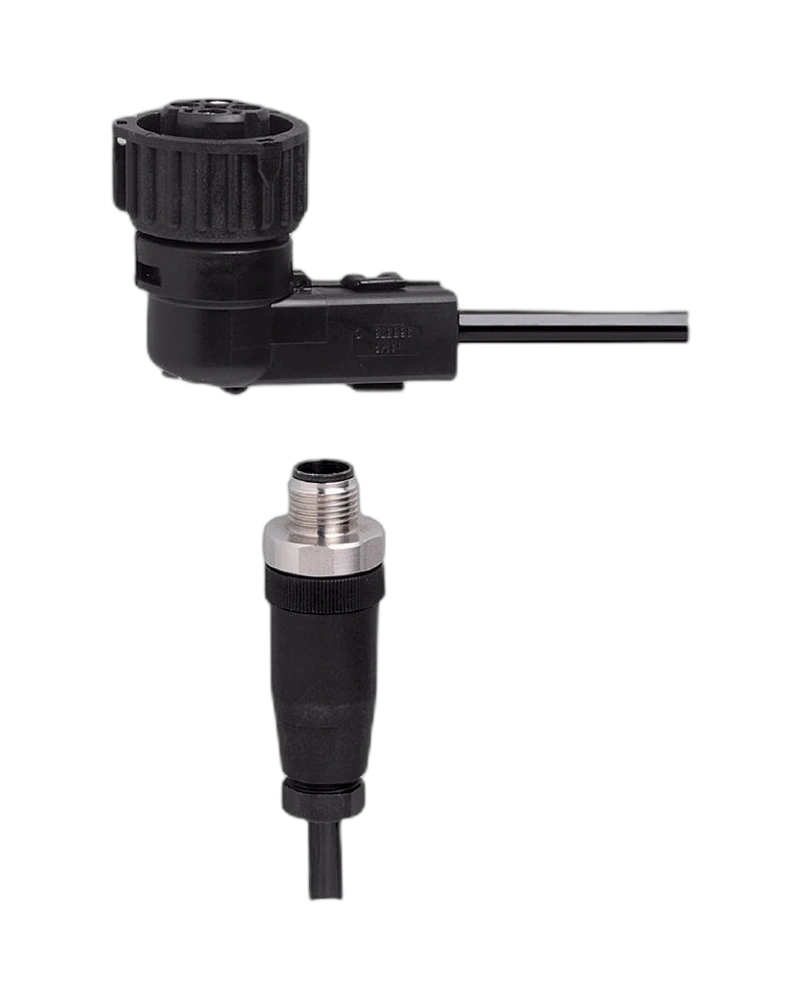

The IFM E11274 is a connection cable designed for sensors with four-pole DIN 72585 bayonet connectors. It is also intended for communication with programming equipment such as PP2000. The cable uses a 2 m halogen-free PUR cable with four 0.5 mm² conductors. It supports 9.6–30 V DC and IP67 protection, with enhanced socket protection. The assembly combines a straight M12 plug with an angled bayonet socket.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11274 provides a connection between compatible sensor interfaces and an M12-based cable connection. The bayonet socket is designed for four-pole DIN 72585 sensors. The keyed arrangement helps ensure correct mating. The angled socket supports cable routing around the sensor. This makes it useful for programming and sensor communication applications.
The cable is specifically associated with communication with programming equipment such as PP2000. Its electrical design is DC with a 9.6–30 V operating range. The four-core cable provides the required conductors for the compatible system. The halogen-free PUR cable supports industrial installations. The assembly is supplied as one complete cable.
The cable uses a black 2 m PUR cable with 4 × 0.5 mm² conductors. The plug body uses PA while the socket body uses Hytrel G-4774. The plug nut is stainless steel 316Ti. The assembly weighs approximately 131–139 g depending on catalogue revision. Protection is IP67, with the socket rated IP67/IP69K.
Four-pole bayonet connection
DIN 72585 interface
M12 plug
2 m PUR cable
4 × 0.5 mm² conductors
9.6–30 V DC
Halogen-free
IP67 protection
Socket IP67/IP69K
Angled socket
Straight M12 plug
PA plug body
Hytrel socket body
Stainless steel 316Ti nut
PP2000 communication support
Sensor programming
PP2000 communication
Bayonet sensors
Industrial automation
Machine diagnostics
Sensor commissioning
Factory automation
Control equipment
Machine maintenance
Sensor testing
The E11274 simplifies communication between compatible bayonet sensors and programming equipment. Its 2 m cable provides practical installation distance. The angled socket helps with sensor-side cable routing. High protection supports industrial environments. The halogen-free cable is suitable for specified automation applications.
Confirm the sensor and programming-device connector compatibility. Align the bayonet connector correctly. Secure the M12 connection before operation. Route the cable away from moving machinery. Inspect the cable sheath and connector bodies during maintenance.
| Specification | E11274 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11274 |
| Ordering code | VDOAR040PLS0002HSTGH040VAS |
| Product type | Connection cable |
| Sensor interface | DIN 72585 bayonet |
| Pole count | 4 |
| Keying | Arrangement 1 |
| M12 interface | 1 |
| M12 design | Straight |
| Bayonet design | Angled |
| Electrical design | DC |
| Operating voltage | 9.6–30 V DC |
| Cable length | 2 m |
| Cable material | PUR |
| Conductors | 4 |
| Conductor size | 0.5 mm² |
| Cable diameter | 6 mm |
| Cable colour | Black |
| Halogen-free | Yes |
| Protection | IP67 |
| Socket protection | IP67 / IP69K |
| Plug body | PA |
| Socket body | Hytrel G-4774 |
| Plug nut | Stainless steel 316Ti |
| Weight | Approx. 131–139 g |
| Application | Sensor/programming connection |
| Product family | Connection cables |
| Pack quantity | 1 |
| Programming equipment | PP2000 |
