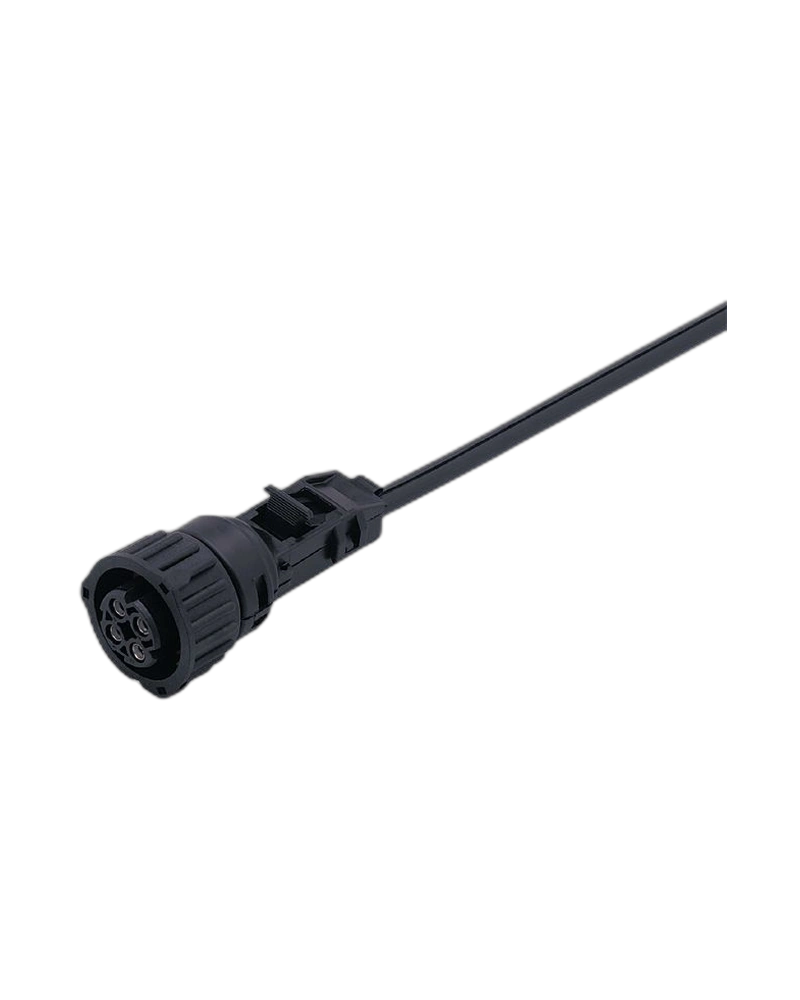

The IFM E11273 is a straight connecting cable with socket designed for sensors using a four-pole bayonet connector according to DIN 72585. It provides a 2 m PUR cable with four 0.5 mm² conductors. The cable operates from 9.6 to 30 V DC and provides IP67/IP69K protection at the socket. Its halogen-free construction supports industrial automation and sensor communication. The assembly weighs approximately 115 g.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11273 is designed for sensors with four-pole DIN 72585 bayonet connectors. The straight design supports conventional cable routing. The connector provides a defined keyed arrangement for correct mating. The socket uses a durable Hytrel G-4774 body. This configuration is suitable for compatible sensor connections.
The cable supports 9.6–30 V DC operation. It uses four 0.5 mm² conductors. The 2 m PUR cable is halogen-free and black. IP67/IP69K protection at the socket supports demanding industrial installations. The cable is suitable for compatible sensor communication.
The E11273 is suitable for factory automation applications. Its 2 m cable length provides practical machine-level connection distance. The PUR cable supports industrial cable routing. The straight construction simplifies conventional installations. Proper bayonet locking should be verified before commissioning.
4-pole bayonet socket
DIN 72585 compatibility
Keyed arrangement 1
2 m PUR cable
4 × 0.5 mm² conductors
9.6–30 V DC
IP67 protection
IP69K socket protection
Halogen-free cable
Black sheath
Hytrel G-4774 socket body
Straight design
Approx. 115 g weight
Industrial sensor cable
Pre-assembled connection
Bayonet sensor connections
Industrial automation
Factory automation
Sensor communication
Machine wiring
Programming equipment
Production machinery
Control systems
Automation panels
Position sensing
The E11273 provides a ready-made connection for compatible bayonet sensors. Its 2 m cable length is suitable for many machine installations. Halogen-free PUR construction supports industrial use. High socket protection supports demanding environmental conditions. The keyed bayonet interface helps ensure correct connector orientation.
Confirm DIN 72585 connector compatibility. Align the keyed connector before mating. Secure the bayonet connection correctly. Route the cable away from moving parts. Inspect the cable and connector during maintenance.
| Specification | E11273 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11273 |
| Ordering code | ADOGR040PLS0002H |
| Product type | Connecting cable with socket |
| Sensor connector | DIN 72585 bayonet |
| Poles | 4 |
| Keying | Arrangement 1 |
| Design | Straight |
| Electrical design | DC |
| Operating voltage | 9.6–30 V DC |
| Cable length | 2 m |
| Cable material | PUR |
| Conductors | 4 |
| Conductor size | 0.5 mm² |
| Cable colour | Black |
| Halogen-free | Yes |
| Socket protection | IP67 / IP69K |
| Cable/system protection | IP67 |
| Socket body | Hytrel G-4774 |
| Nut material | Hytrel G-4774 |
| Weight | Approx. 115 g |
| Application | Sensor connection |
| Product family | Connecting cables |
| Mechanical function | Sensor mating |
| Electrical function | DC connection |
| Installation | Bayonet |
| Pack quantity | 1 |
| Industrial use | Factory automation |
| Connector arrangement | Keyed |
