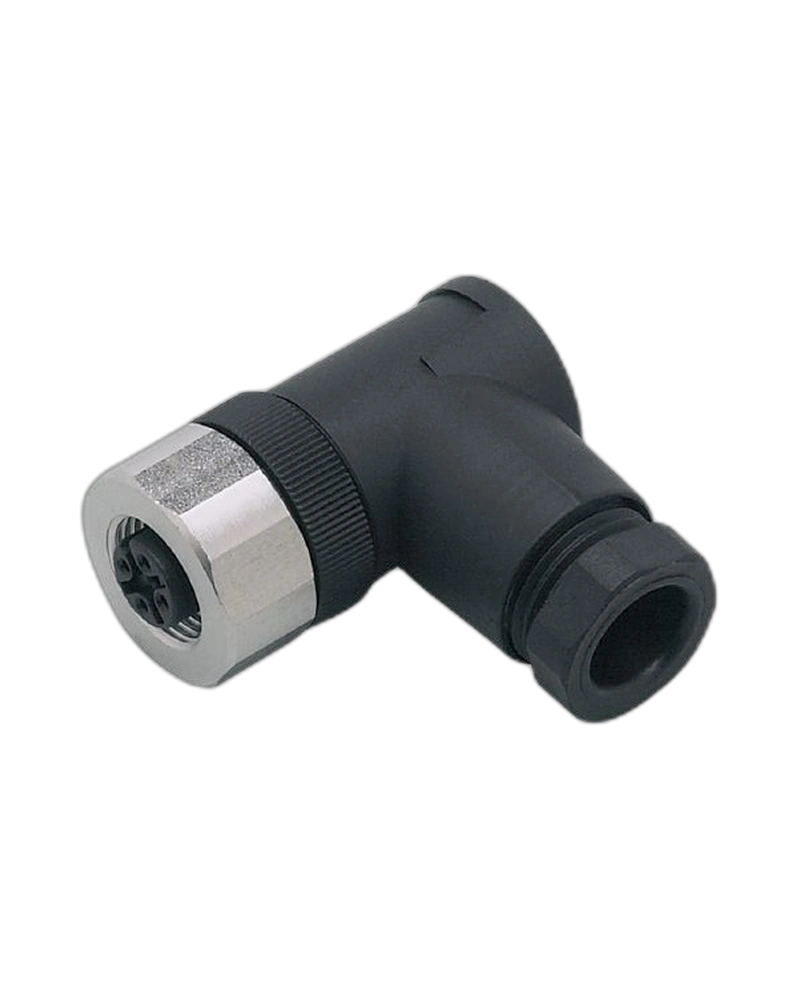

The IFM E11252 is an angled wirable socket designed for compatible M12 sensor connections. It provides a practical field-wiring solution with four contacts and gold-plated contact surfaces. The connector supports AC/DC operation and is designed for reliable industrial sensor installation. Its IP68 protection makes it suitable for demanding automation environments. The angled construction helps improve cable routing where straight connectors may require additional space.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11252 uses an angled M12 connector arrangement for flexible sensor wiring. The angled body allows the cable to be routed away from the sensor mounting area. The connector uses a threaded locking arrangement for secure mating. Gold-plated contacts provide a reliable electrical interface. The design is suitable for field-wirable industrial sensor applications.
The connector supports 45 V AC and 70 V DC operating voltage. Its current rating is 4 A at the specified operating condition. Screw terminals accept conductors up to 0.75 mm². The compatible cable diameter range is approximately 6–8 mm. These characteristics make it suitable for many low-voltage automation connections.
The E11252 is intended for industrial sensor connection applications. Its IP68 protection provides a high level of environmental protection. The PBT body provides a practical insulated connector structure. The stainless-steel 316L nut supports durable mechanical locking. The angled configuration helps maintain organized machine wiring.
Angled M12 wirable socket
4-contact configuration
Gold-plated contacts
45 V AC operating voltage
70 V DC operating voltage
4 A current rating
IP68 protection
PBT body
Stainless steel 316L nut
Screw-terminal connection
Up to 0.75 mm² conductor size
Cable diameter 6–8 mm
Field-wirable design
Compact industrial construction
Secure threaded connection
M12 sensor connections
Industrial automation
Machine wiring
Position sensors
Factory automation
Control equipment
Sensor interfaces
Production machinery
Automation panels
Field termination
The angled configuration helps simplify cable routing around sensors. Field wiring allows the connector to be assembled according to the required cable arrangement. Gold-plated contacts provide a reliable electrical connection. IP68 protection supports demanding industrial environments. The connector is suitable for compact machine-level installations.
Prepare the cable according to the specified conductor range. Terminate each conductor securely in the screw terminals. Align and tighten the M12 connection correctly. Avoid excessive mechanical stress on the cable entry. Inspect the connector periodically for damage or looseness.
| Specification | E11252 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11252 |
| Ordering code | SDOAH040VASFKPG |
| Product type | Wirable socket |
| Connector type | M12 |
| Connector gender | Socket |
| Design | Angled |
| Contacts | 4 |
| Coding | A |
| Wiring | Screw terminals |
| Electrical design | AC/DC |
| Operating voltage AC | 45 V |
| Operating voltage DC | 70 V |
| Current rating | 4 A |
| Current condition | At 40 °C |
| Protection | IP68 |
| Body material | PBT |
| Nut material | Stainless steel 316L |
| Contact finish | Gold plated |
| Conductor size | Up to 0.75 mm² |
| Cable diameter | 6–8 mm |
| Cable mounting | Field wirable |
| Application | Sensor connection |
| Product family | Wirable connectors |
| Installation | Threaded M12 |
| Mechanical function | Cable termination |
| Electrical function | Sensor connection |
| Pack quantity | 1 |
