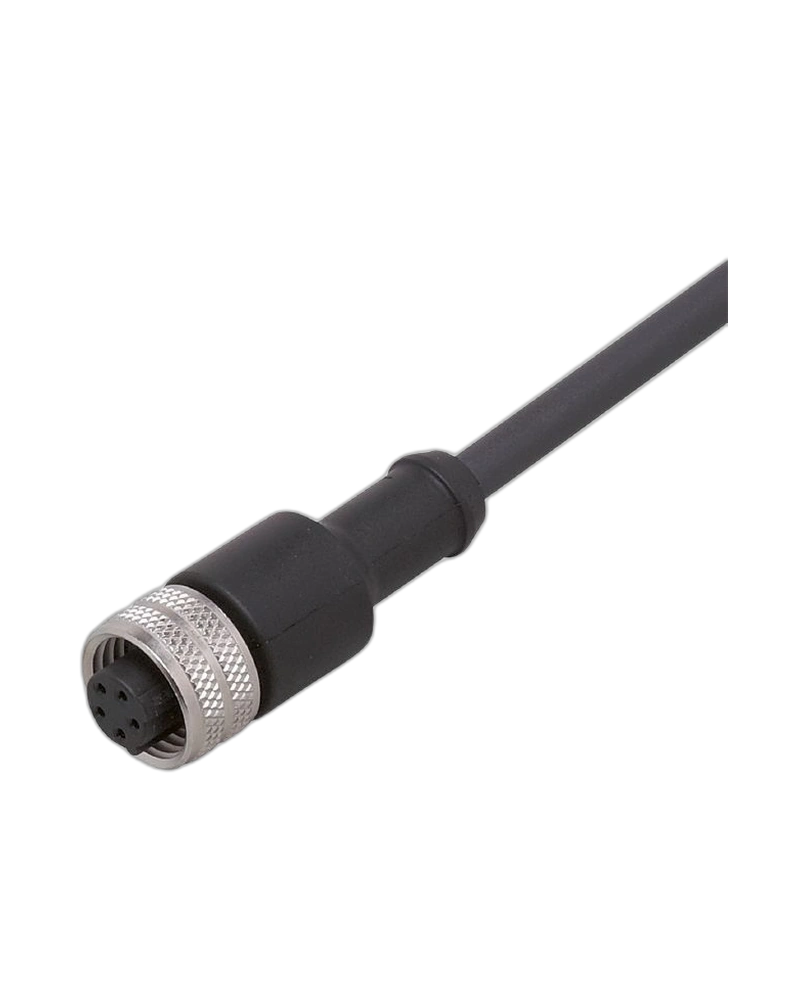

The IFM E11251 is a straight connecting cable with socket designed for sensors using a 1/2-inch connector. It provides a 10 m halogen-free PUR cable with four 0.34 mm² conductors. The cable supports 300 V AC operation and IP67 protection. Its straight connector design supports conventional cable routing in industrial machinery. The extended 10 m length is useful for sensors installed away from control equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11251 uses a straight 1/2-inch socket arrangement. The straight connector allows conventional cable routing in machine installations. The TPU moulded body provides mechanical support. The nickel-plated brass nut provides secure locking. The configuration is suitable for compatible industrial sensors.
The 10 m PUR cable provides extended connection reach. It contains four 0.34 mm² conductors with a diameter of approximately 4.7 mm. The cable is halogen-free and black. PUR construction provides practical industrial flexibility. The longer cable length is useful for distributed sensor installations.
The cable supports 300 V AC operation. IP67 protection provides environmental protection for industrial installations. The four-core arrangement supports the compatible 1/2-inch sensor connection. The connector body uses TPU construction. Proper locking should be maintained for reliable operation.
1/2-inch socket
Straight connector
10 m PUR cable
4 × 0.34 mm² conductors
300 V AC operation
IP67 protection
Halogen-free
TPU connector body
Nickel-plated brass nut
4.7 mm cable diameter
Approx. 306 g weight
Black cable
Extended cable reach
Industrial sensor connection
Pre-assembled cable assembly
Industrial sensors
Long-distance sensor connections
Factory automation
Machine automation
Process equipment
Control panels
Production machinery
Sensor networks
Automation systems
The E11251 provides extended 10 m reach for compatible industrial sensors. Its straight connector supports conventional cable routing. PUR construction provides a flexible and durable cable solution. The halogen-free design is suitable for applications requiring that characteristic. IP67 protection supports reliable industrial installation.
Plan the 10 m cable route before installation. Secure long cable sections to prevent unnecessary movement. Avoid sharp bends near the connector. Check connector locking before commissioning. Inspect the cable sheath regularly for wear or abrasion.
| Specification | E11251 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11251 |
| Product type | Connecting cable with socket |
| Product code | ADOGA050MSS0010H04 |
| Sensor connector | 1/2 inch |
| Connector design | Straight |
| Cable length | 10 m |
| Cable material | PUR |
| Conductors | 4 |
| Conductor size | 0.34 mm² |
| Conductor construction | 43 × Ø0.1 mm |
| Cable diameter | 4.7 mm |
| Electrical design | AC |
| Operating voltage | 300 V AC |
| Protection | IP67 |
| Ambient temperature | -25 to +90 °C |
| Body material | TPU |
| Nut material | Brass, nickel-plated |
| Cable colour | Black |
| Halogen-free | Yes |
| Weight | Approx. 306 g |
| Application | Industrial sensor connection |
| Product family | Connecting cables |
| Mechanical function | Sensor connection |
| Electrical function | Signal/power connection |
| Installation | Plug connection |
| Connector orientation | Straight |
| Pack quantity | 1 |
| Sensor application | 1/2-inch sensors |
