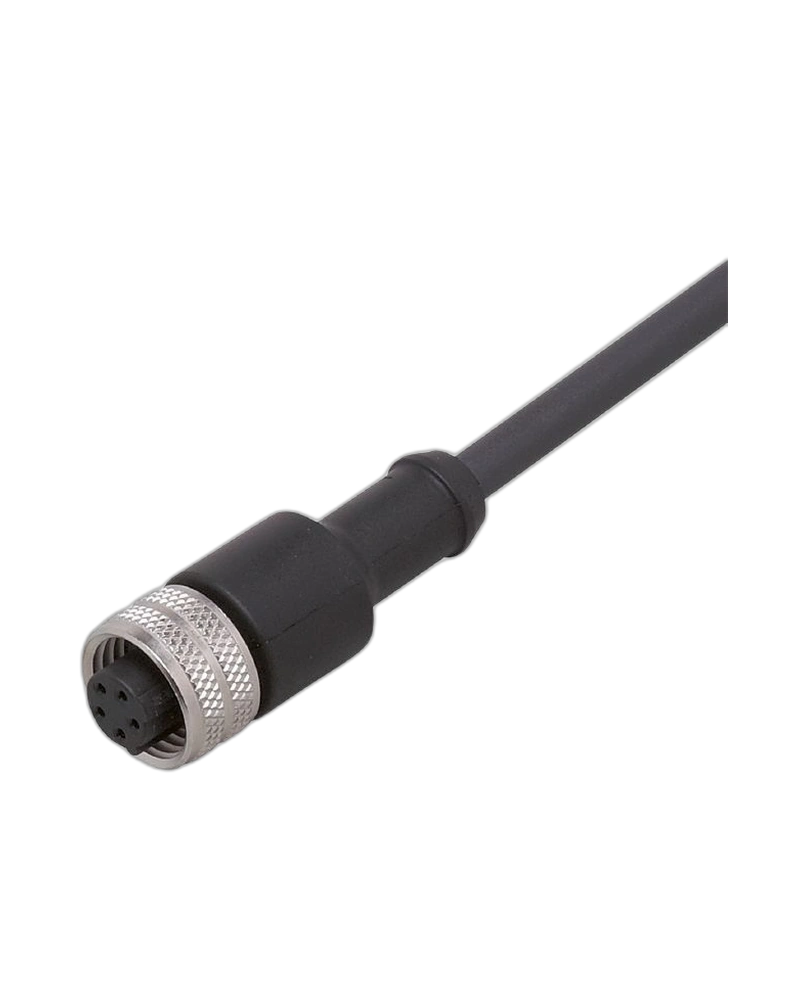

The IFM E11250 is a straight connecting cable with socket designed for sensors using a 1/2-inch connector. It uses a 5 m halogen-free PUR cable with four 0.34 mm² conductors. The cable supports 300 V AC operation and IP67 protection. Its straight connector provides conventional cable routing for industrial machinery. TPU construction and a nickel-plated brass nut provide a robust sensor connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11250 uses a straight 1/2-inch socket configuration. This makes it suitable for conventional cable routing away from the sensor. The TPU connector body provides mechanical support and insulation. The nickel-plated brass nut provides secure connector locking. The straight configuration is useful where cable clearance is available.
The 5 m PUR cable contains four 0.34 mm² conductors. Its approximate cable diameter is 4.7 mm. The cable is halogen-free and black. PUR construction provides a practical industrial cable solution. The 5 m length provides useful reach for machine installations.
The E11250 supports 300 V AC operation. IP67 protection supports suitable industrial environments. The connector is designed for sensors using a 1/2-inch interface. The four-core cable supports the specified connection arrangement. Proper connector tightening helps maintain reliable connection.
1/2-inch socket
Straight connector
5 m PUR cable
4 × 0.34 mm² conductors
300 V AC
IP67 protection
Halogen-free
TPU connector body
Nickel-plated brass nut
4.7 mm cable diameter
Approx. 168 g weight
Black cable
Industrial sensor connection
Pre-assembled cable
Compact straight design
Industrial sensors
Machine automation
Factory automation
Sensor wiring
Process equipment
Control systems
Production machinery
Automation panels
The E11250 provides a straightforward 5 m connection for compatible sensors. Its straight design simplifies conventional cable routing. PUR construction provides suitable flexibility for industrial installations. The 300 V AC rating supports compatible applications. IP67 protection provides environmental protection for industrial use.
Confirm the 1/2-inch connector compatibility. Route the cable away from moving machine parts. Avoid excessive bending at the connector. Secure the cable where required. Inspect the cable and connector periodically.
| Specification | E11250 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11250 |
| Product type | Connecting cable with socket |
| Product code | ADOGA050MSS0005H04 |
| Sensor connector | 1/2 inch |
| Connector design | Straight |
| Cable length | 5 m |
| Cable material | PUR |
| Conductors | 4 |
| Conductor size | 0.34 mm² |
| Conductor construction | 43 × Ø0.1 mm |
| Cable diameter | 4.7 mm |
| Electrical design | AC |
| Operating voltage | 300 V AC |
| Protection | IP67 |
| Ambient temperature | -25 to +90 °C |
| Body material | TPU |
| Nut material | Brass, nickel-plated |
| Cable colour | Black |
| Halogen-free | Yes |
| Weight | Approx. 168 g |
| Application | Industrial sensor connection |
| Product family | Connecting cables |
| Mechanical function | Sensor connection |
| Electrical function | Signal/power connection |
| Installation | Plug connection |
| Connector orientation | Straight |
| Pack quantity | 1 |
| Sensor application | 1/2-inch sensors |
