The IFM E11249 is an angled connecting cable with socket designed for sensors using a 1/2-inch connector. It provides a 10 m halogen-free PUR cable with four 0.34 mm² conductors. The cable supports below 300 V AC and provides IP67 protection. Its angled connector is suitable for installations where cable routing space is restricted. The long cable length provides flexible connection between remote sensors and automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

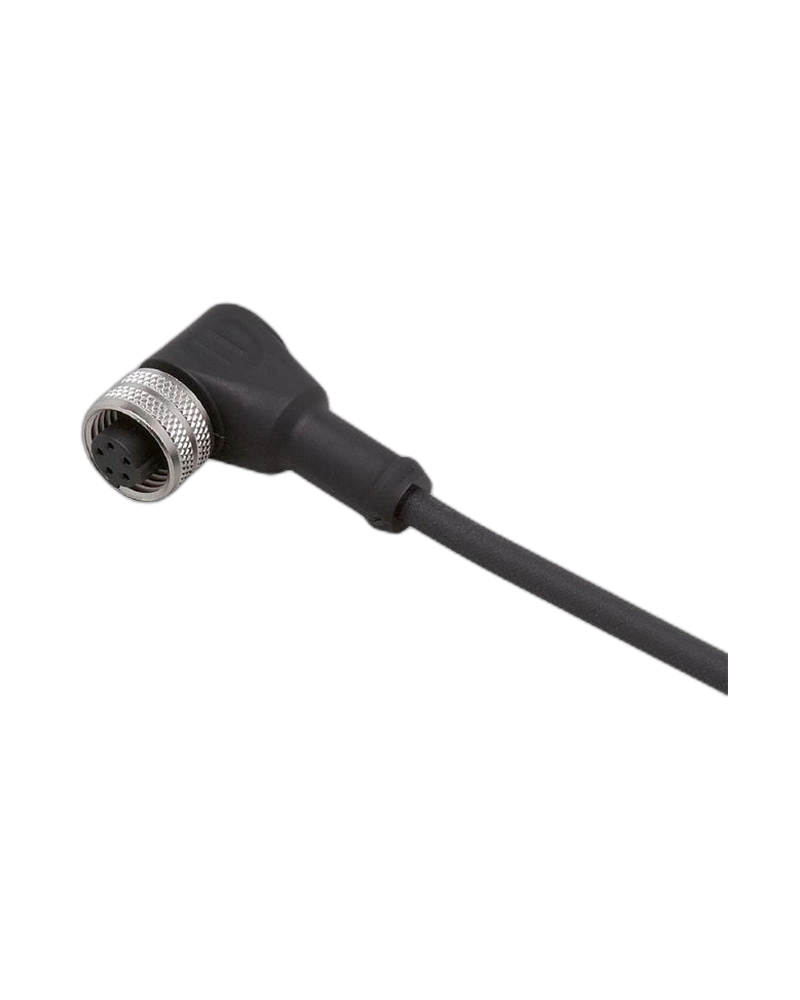

The E11249 uses an angled 1/2-inch socket for improved cable routing. The TPU connector body provides a durable industrial connection interface. The nickel-plated brass nut supports secure mechanical locking. The angled orientation helps reduce cable clearance requirements. This makes the cable suitable for compact sensor installations.
The 10 m PUR cable provides long-distance sensor connection. It contains four 0.34 mm² conductors with a cable diameter of approximately 4.7 mm. The cable is halogen-free and black. The extended length is useful where sensors are positioned away from control equipment. Proper cable support should be provided for longer routes.
The cable supports below 300 V AC. IP67 protection provides suitable environmental protection. The 1/2-inch connector provides compatibility with appropriate sensor equipment. The four-core cable supports the intended connection arrangement. Correct connector engagement should be verified before commissioning.
1/2-inch socket
Angled connector
10 m PUR cable
4 × 0.34 mm² conductors
300 V AC class
IP67 protection
Halogen-free
TPU moulded body
Nickel-plated brass nut
Black cable
Approx. 322.7 g weight
4.7 mm cable diameter
Extended connection distance
Industrial sensor cable
Pre-assembled assembly
Industrial sensors
Long-distance sensor wiring
Factory automation
Machine automation
Process equipment
Control panels
Sensor networks
Production machinery
The E11249 provides a 10 m connection for sensors positioned away from control equipment. Its angled connector improves routing flexibility. PUR cable construction supports industrial installations. The halogen-free design provides additional material suitability for specified applications. IP67 protection supports industrial environmental conditions.
Plan the cable route before installation. Secure longer cable sections to avoid excessive movement. Avoid sharp bends near the connector. Tighten the connector correctly. Inspect the cable for abrasion and mechanical damage.
| Specification | E11249 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11249 |
| Product type | Connecting cable with socket |
| Product code | ADOAA050MSS0010H04 |
| Sensor connector | 1/2 inch |
| Connector design | Angled |
| Cable length | 10 m |
| Cable material | PUR |
| Conductors | 4 |
| Conductor size | 0.34 mm² |
| Conductor construction | 43 × Ø0.1 mm |
| Cable diameter | 4.7 mm |
| Electrical design | AC |
| Operating voltage | <300 V AC |
| Protection | IP67 |
| Ambient temperature | -25 to +90 °C |
| Body material | TPU |
| Nut material | Brass, nickel-plated |
| Cable colour | Black |
| Halogen-free | Yes |
| Weight | Approx. 322.7 g |
| Application | Industrial sensor connection |
| Product family | Connecting cables |
| Mechanical function | Sensor connection |
| Electrical function | Signal/power connection |
| Installation | Plug connection |
| Connector orientation | Angled |
| Pack quantity | 1 |
| Sensor application | 1/2-inch sensors |
