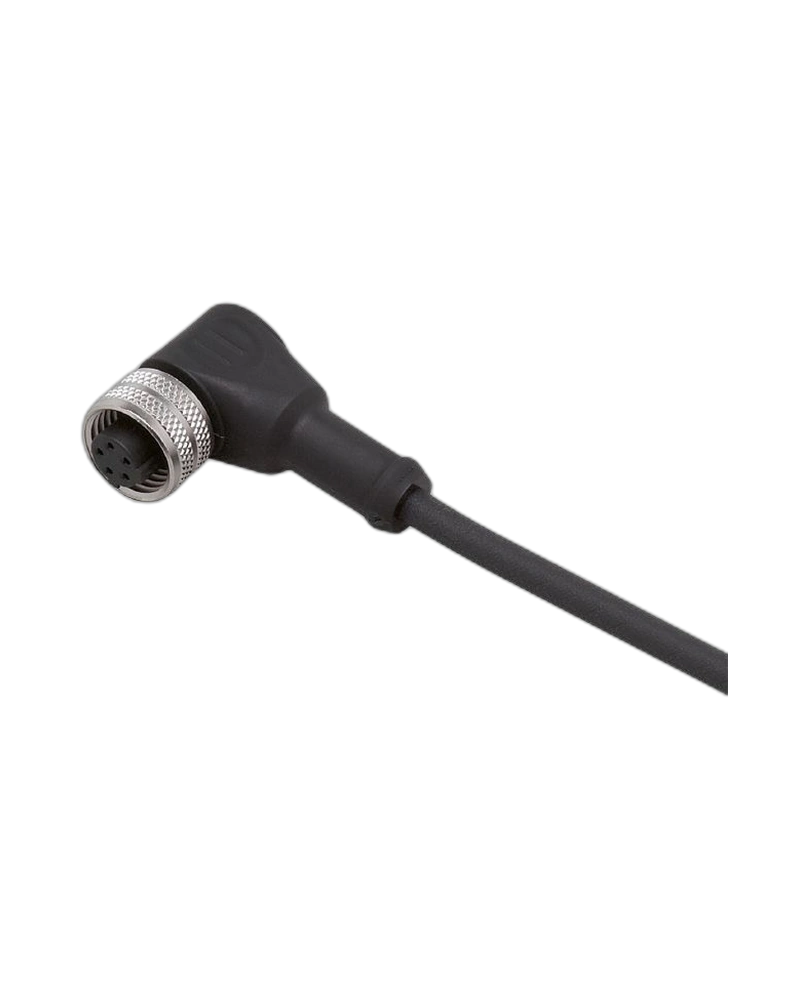

The IFM E11248 is an angled connecting cable with socket designed for sensors using a 1/2-inch connector. It uses a 5 m halogen-free PUR cable with four 0.34 mm² conductors. The cable supports 300 V AC operation and IP67 protection. Its angled connector is useful for installations where cable space is limited. TPU construction and nickel-plated brass locking provide a robust industrial connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11248 uses an angled 1/2-inch sensor connector. The angled arrangement helps route the cable away from compact sensor mounting points. The TPU moulded body provides mechanical support. The nickel-plated brass nut provides secure locking. The design is suitable for industrial sensor installations.
The 5 m PUR cable contains four 0.34 mm² conductors. It is halogen-free and black in colour. The cable supports 300 V AC operation. IP67 protection provides suitable environmental resistance. The cable diameter is approximately 4.7 mm.
The E11248 is designed for sensors using a 1/2-inch connector. Its 5 m cable provides additional reach between sensors and control equipment. The pre-assembled format reduces field wiring. The angled design helps maintain clean machine cable routing. Correct connector tightening is required for reliable operation.
1/2-inch sensor connector
Angled socket
5 m cable
PUR cable
4 × 0.34 mm² conductors
300 V AC operation
IP67 protection
Halogen-free
TPU body
Nickel-plated brass nut
Black cable
Approx. 170 g weight
Industrial sensor cable
Compact angled design
Pre-assembled connection
Industrial sensors
Machine automation
Factory automation
Sensor wiring
Control equipment
Process machinery
Automation panels
Machine monitoring
The E11248 provides extended 5 m sensor connection length. Its angled connector helps simplify cable routing in restricted spaces. PUR cable construction supports industrial use. The 300 V AC rating provides suitable electrical capability for compatible applications. IP67 protection supports demanding machine environments.
Check the 1/2-inch connector compatibility before installation. Route the cable without sharp bends. Tighten the locking nut correctly. Keep the cable away from moving components. Inspect the cable sheath during maintenance.
| Specification | E11248 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11248 |
| Product type | Connecting cable with socket |
| Product code | ADOAA050MSS0005H04 |
| Sensor connector | 1/2 inch |
| Connector design | Angled |
| Cable length | 5 m |
| Cable material | PUR |
| Conductors | 4 |
| Conductor size | 0.34 mm² |
| Conductor construction | 43 × Ø0.1 mm |
| Cable diameter | 4.7 mm |
| Electrical design | AC |
| Operating voltage | 300 V AC |
| Protection | IP67 |
| Ambient temperature | -25 to +90 °C |
| Body material | TPU |
| Nut material | Brass, nickel-plated |
| Cable colour | Black |
| Halogen-free | Yes |
| Weight | Approx. 170 g |
| Application | Industrial sensor connection |
| Product family | Connecting cables |
| Mechanical function | Sensor connection |
| Electrical function | Signal/power connection |
| Connector orientation | Angled |
| Installation | Plug connection |
| Pack quantity | 1 |
| Sensor application | 1/2-inch sensors |
