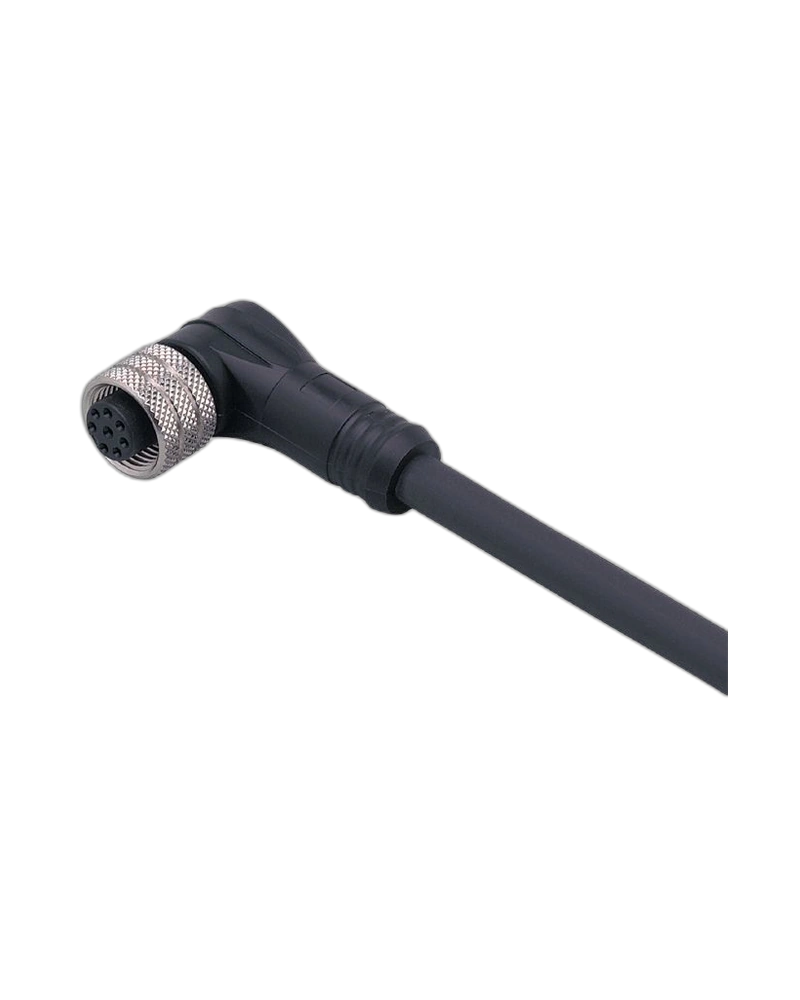

The IFM E11232 is an angled 8-pole M12 connecting cable with a 5 m PUR cable. It is designed for industrial sensor connections requiring extended cable reach. The cable supports below 30 V AC / 36 V DC and 2 A current load. Gold-plated contacts and IP67 protection support reliable industrial operation. Its angled connector is useful where machine space around the sensor is restricted.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11232 uses a 5 m black PUR cable with eight 0.25 mm² conductors. Its angled M12 socket provides convenient cable routing. The connector body is moulded from PUR. The locking nut is brass with nickel plating. The cable is halogen-free and free from silicone.
The cable supports below 30 V AC / 36 V DC. Its maximum total current load is 2 A at the specified temperature condition. Gold-plated contacts support reliable electrical connection. IP67 protection provides suitable industrial environmental resistance. The eight-core configuration is suitable for compatible multi-wire sensors.
The 5 m cable length provides flexibility for sensors positioned away from control equipment. The angled connector can reduce cable-routing clearance requirements. The pre-assembled construction simplifies machine installation. Correct sensor wiring must be observed for the 8-pole interface. Cable routing should avoid sharp edges and excessive mechanical stress.
8-pole M12 socket
5 m cable
Angled connector
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Below 30 V AC
Below 36 V DC
2 A current rating
IP67 protection
8 × 0.25 mm² conductors
Ø6.2 mm cable
Nickel-plated brass locking
Industrial connection cable
8-pole sensors
Industrial automation
Machine monitoring
Factory automation
Process equipment
Control systems
Automation panels
Sensor networks
The E11232 provides extended 5 m cable reach for industrial sensor installations. Its angled connector helps simplify routing in compact machine spaces. PUR construction provides a durable industrial cable solution. Gold-plated contacts support dependable connection performance. IP67 protection supports demanding industrial environments.
Confirm the correct sensor wiring before installation. Route the cable away from moving parts. Maintain a suitable bend radius around the connector. Tighten the M12 connection securely. Inspect the cable periodically for abrasion.
| Specification | E11232 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11232 |
| Product type | Connecting cable with socket |
| Product code | ADOAH080MSS0005H08 |
| Connector | M12 |
| Pole count | 8 |
| Connector design | Angled |
| Coding | A |
| Cable length | 5 m |
| Cable material | PUR |
| Cable colour | Black |
| Conductors | 8 |
| Conductor size | 0.25 mm² |
| Cable diameter | 6.2 mm |
| Contact finish | Gold plated |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Operating voltage | <30 V AC / <36 V DC |
| Current rating | 2 A |
| Protection class | III |
| Protection | IP67 |
| Ambient temperature | -25 to +80 °C |
| Body material | PUR |
| Nut material | Brass, nickel-plated |
| Tightening torque | 0.7–0.9 Nm |
| Application | Industrial automation |
| Product family | Connecting cables |
| Electrical function | Sensor connection |
| Pack quantity | 1 |
