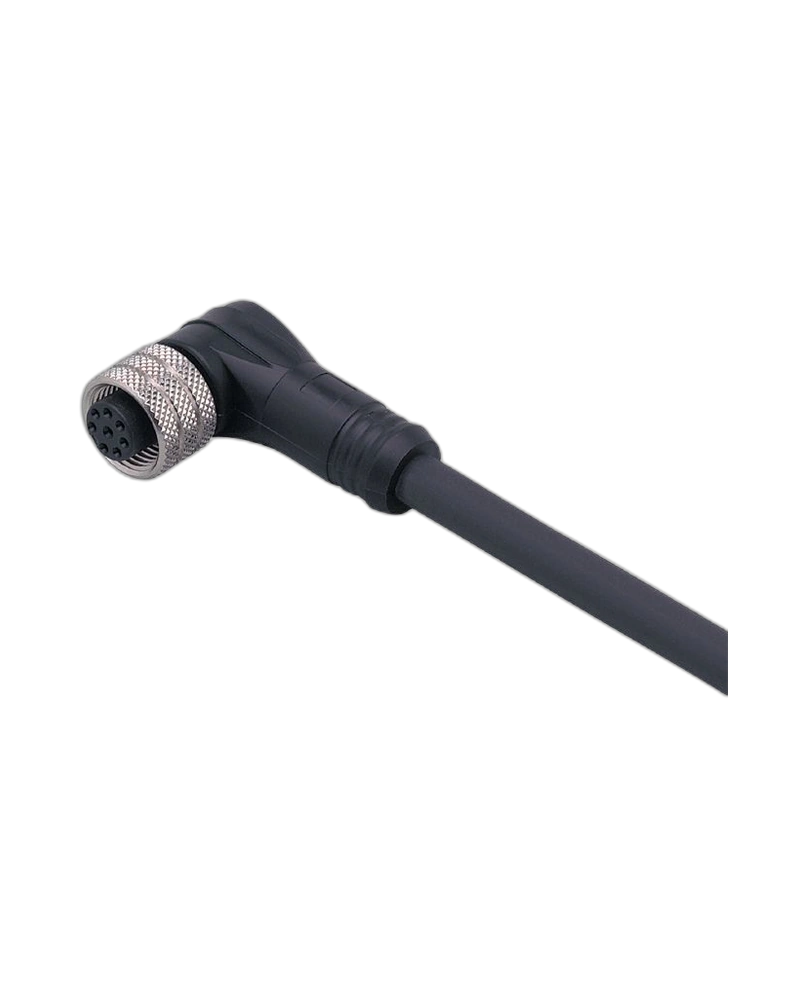

The IFM E11231 is an angled 8-pole M12 connecting cable with socket designed for industrial sensor connections. It uses a 2 m halogen-free PUR cable with gold-plated contacts. The cable supports below 30 V AC / 36 V DC and a 2 A current rating. IP67 protection supports industrial automation environments. Its angled connector design provides practical cable routing in compact machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11231 uses a 2 m black PUR cable with eight 0.25 mm² conductors. Its angled M12 socket provides improved routing flexibility. The PUR moulded body supports mechanical durability around the connector. The nickel-plated brass nut provides secure locking. The cable is free from silicone and halogen.
The cable supports below 30 V AC / 36 V DC operation. It has a 2 A maximum total current load under the specified conditions. Gold-plated contacts support reliable electrical connection. IP67 protection provides suitable environmental resistance. The cable is designed for compatible 8-pole sensor systems.
The 2 m length provides greater reach than the 1 m version. The angled connector helps avoid unnecessary bending around machine structures. The pre-assembled cable reduces field termination requirements. Correct wiring is important for 8-pole sensor connections. The cable should be routed and supported appropriately.
8-pole M12 socket
2 m cable
Angled connector
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Below 30 V AC
Below 36 V DC
2 A current rating
IP67 protection
8 × 0.25 mm² conductors
Ø6.2 mm cable
Nickel-plated brass nut
Industrial sensor cable
8-pole sensors
Machine automation
Factory automation
Sensor networks
Industrial control
Process equipment
Automation panels
Machine monitoring
The E11231 combines extended 2 m reach with a compact angled connector. Its PUR cable provides a practical industrial wiring solution. Gold-plated contacts support reliable connection performance. IP67 protection provides suitable environmental protection. The pre-assembled construction reduces cable termination work.
Verify the 8-pole wiring before connection. Align the M12 socket carefully. Secure the locking nut correctly. Avoid cable stress near the connector. Inspect the cable sheath during maintenance.
| Specification | E11231 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11231 |
| Product type | Connecting cable with socket |
| Product code | ADOAH080MSS0002H08 |
| Connector | M12 |
| Pole count | 8 |
| Connector design | Angled |
| Coding | A |
| Cable length | 2 m |
| Cable material | PUR |
| Cable colour | Black |
| Conductors | 8 |
| Conductor size | 0.25 mm² |
| Cable diameter | 6.2 mm |
| Contact finish | Gold plated |
| Halogen-free | Yes |
| Silicone-free | Yes |
| Operating voltage | <30 V AC / <36 V DC |
| Current rating | 2 A |
| Protection class | III |
| Protection | IP67 |
| Ambient temperature | -25 to +80 °C |
| Body material | PUR |
| Nut material | Brass, nickel-plated |
| Tightening torque | 0.7–0.9 Nm |
| Application | Industrial automation |
| Product family | Connecting cables |
| Electrical function | Sensor connection |
| Pack quantity | 1 |
