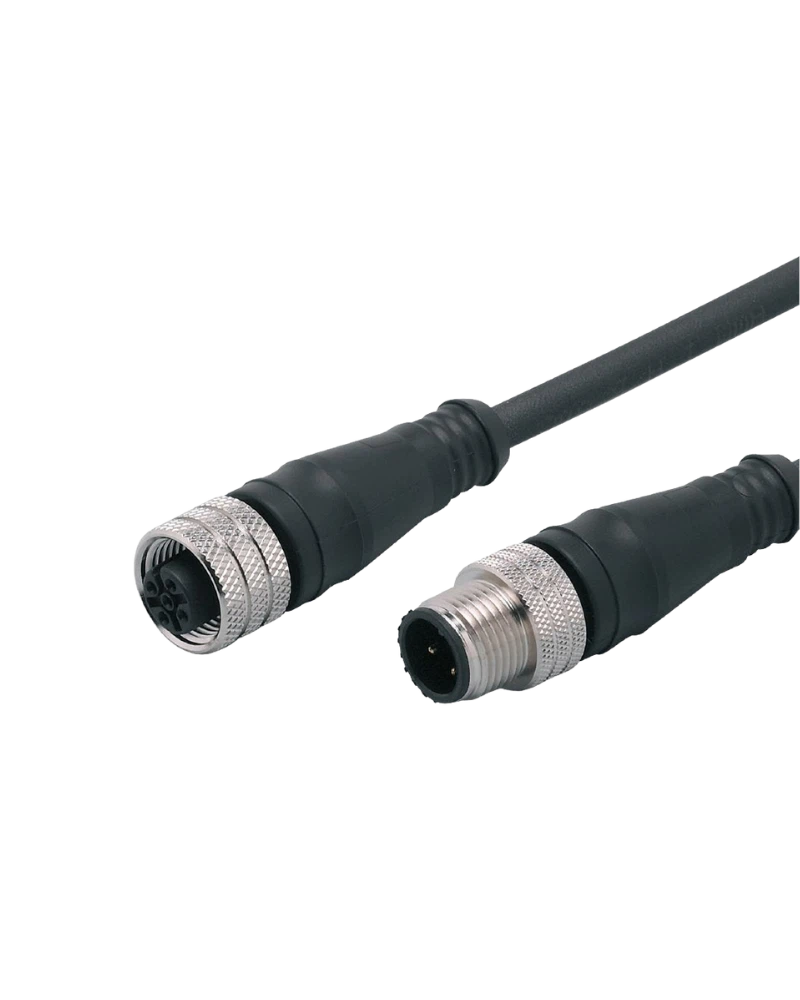

The IFM E11230 is an 8-pole M12 connection cable designed for industrial automation systems. It uses a 5 m halogen-free PUR cable with straight M12 connections. The cable supports operating voltage below 30 V AC / 36 V DC and provides IP68 protection. Gold-plated contacts support reliable electrical connection in demanding applications. The cable is suitable for sensor and actuator communication in factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11230 uses a 5 m black PUR cable with eight 0.25 mm² conductors. PUR construction provides a flexible industrial cable solution. The cable is halogen-free for suitable industrial installation requirements. Both connector interfaces use straight M12 arrangements. The assembly is supplied ready for connection.
The cable supports operating voltage below 30 V AC / 36 V DC. The M12 connection uses eight gold-plated contacts. IP68 protection provides a high level of environmental protection. The brass nickel-plated locking mechanism supports secure connection. The cable is suitable for compatible low-voltage sensor and automation circuits.
The 5 m length provides flexibility between sensors, actuators and automation equipment. Straight connector orientation is useful for conventional cable routing. The pre-assembled cable reduces field wiring work. Its halogen-free PUR construction supports industrial automation applications. Proper connector locking should be maintained during operation.
8-pole M12 cable
5 m cable length
PUR cable
Halogen-free
Straight connectors
M12 interfaces
Gold-plated contacts
Below 30 V AC
Below 36 V DC
IP68 protection
8 × 0.25 mm² conductors
Black cable
Nickel-plated brass locking
Pre-assembled cable
Industrial automation connection
Sensor connections
Actuator wiring
Factory automation
Machine automation
Industrial control systems
Production machinery
Automation panels
Sensor networks
The E11230 provides a ready-to-install 8-pole M12 connection solution. Its 5 m length supports flexible machine wiring. PUR construction provides a durable industrial cable solution. IP68 protection supports demanding environmental conditions. The pre-assembled design reduces installation time.
Route the cable away from moving machine parts. Avoid sharp bends at connector exits. Tighten both M12 connections correctly. Check the cable sheath during maintenance. Replace damaged cable assemblies before operation.
| Specification | E11230 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11230 |
| Product type | Connection cable |
| Product code | VDOGH080MSS0005H08STGH080MSS |
| Cable length | 5 m |
| Cable material | PUR |
| Cable colour | Black |
| Conductors | 8 |
| Conductor size | 0.25 mm² |
| Connector | M12 |
| Connector count | 2 |
| Connector design | Straight |
| Coding | A |
| Contact type | Gold-plated |
| Electrical design | AC/DC |
| Operating voltage | <30 V AC / <36 V DC |
| Protection | IP68 |
| Ambient temperature | -25 to +80 °C |
| Body material | PUR |
| Nut material | Brass, nickel-plated |
| Tightening torque | 0.7–0.9 Nm |
| Halogen-free | Yes |
| Application | Factory automation |
| Product family | Connection cables |
| Mechanical function | Cable connection |
| Electrical function | Sensor/actuator connection |
| Installation | Plug-and-connect |
| Pack quantity | 1 |
| Cable construction | Multi-core |
