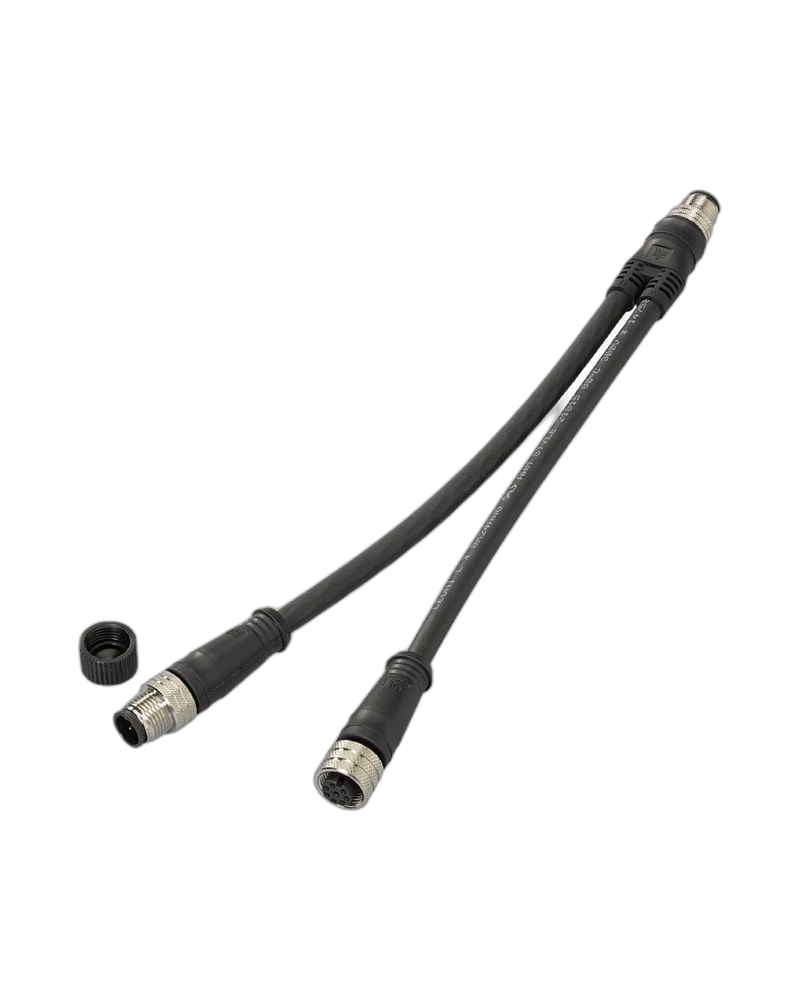

The IFM E11228 is a Y connection cable designed to combine or distribute compatible M12 sensor connections. It uses an M12 plug with one M12 plug and one M12 socket arrangement. The 0.15 m PUR cable provides a compact branching solution for machine wiring. It supports below 30 V AC / 36 V DC and provides IP68 protection. Gold-plated contacts and nickel-plated brass locking components support reliable industrial connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11228 provides a compact Y connection arrangement for M12-based systems. One side provides an M12 connection while the branch provides another plug and socket interface. This allows compatible sensor or automation circuits to be connected without separate custom wiring. The 0.15 m cable keeps the branching assembly compact. The design is particularly useful in space-limited machine installations.
The cable supports operating voltage below 30 V AC / 36 V DC. It uses eight 0.25 mm² conductors within a PUR cable. The connector body is manufactured from PUR. Gold-plated contacts provide reliable electrical contact performance. IP68 protection supports demanding industrial environments.
The compact Y design helps simplify machine-level cable distribution. It can be positioned close to sensors or connection blocks. The nickel-plated brass locking components provide secure mechanical engagement. The short cable length reduces unnecessary cable loops. Correct wiring should be verified before commissioning.
Y connection cable
M12 plug interface
M12 socket interface
8 contacts
0.15 m PUR cable
8 × 0.25 mm² conductors
Below 30 V AC
Below 36 V DC
IP68 protection
Gold-plated contacts
PUR connector body
Nickel-plated brass locking
Straight connector design
Halogen-free cable
Compact Y-splitter
Sensor branching
M12 connection systems
Industrial automation
Factory automation
Machine wiring
Sensor networks
Control equipment
Automation panels
The E11228 provides a compact alternative to separate cable assemblies and junction wiring. Its Y configuration simplifies connection distribution. The 0.15 m cable keeps the assembly close to the machine connection point. IP68 protection supports industrial environments. Gold-plated contacts support reliable electrical connections.
Confirm the required M12 connection arrangement before installation. Route the branch cable without excessive bending. Secure all connector interfaces. Verify the wiring against the equipment configuration. Inspect the cable and connectors periodically.
| Specification | E11228 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11228 |
| Product type | Y connection cable |
| Product code | YDOGH080MSS0,15H08STGH040MSS |
| Cable length | 0.15 m |
| Cable material | PUR |
| Conductor count | 8 |
| Conductor size | 0.25 mm² |
| Connector arrangement | M12 plug + M12 plug/socket |
| Connector type | M12 |
| Electrical design | AC/DC |
| AC voltage | <30 V |
| DC voltage | <36 V |
| Protection | IP68 |
| Ambient temperature | -25 to +80 °C |
| Body material | PUR |
| Nut material | Brass, nickel-plated |
| Contact type | Gold-plated |
| Cable colour | Black |
| Halogen-free | Yes |
| Design | Straight |
| Function | Y splitting |
| Application | Industrial automation |
| Product family | Y-splitters |
| Mechanical function | Cable branching |
| Electrical function | Connection distribution |
| Mounting | Plug connection |
| Pack quantity | 1 |
| Connector interface | M12 |
