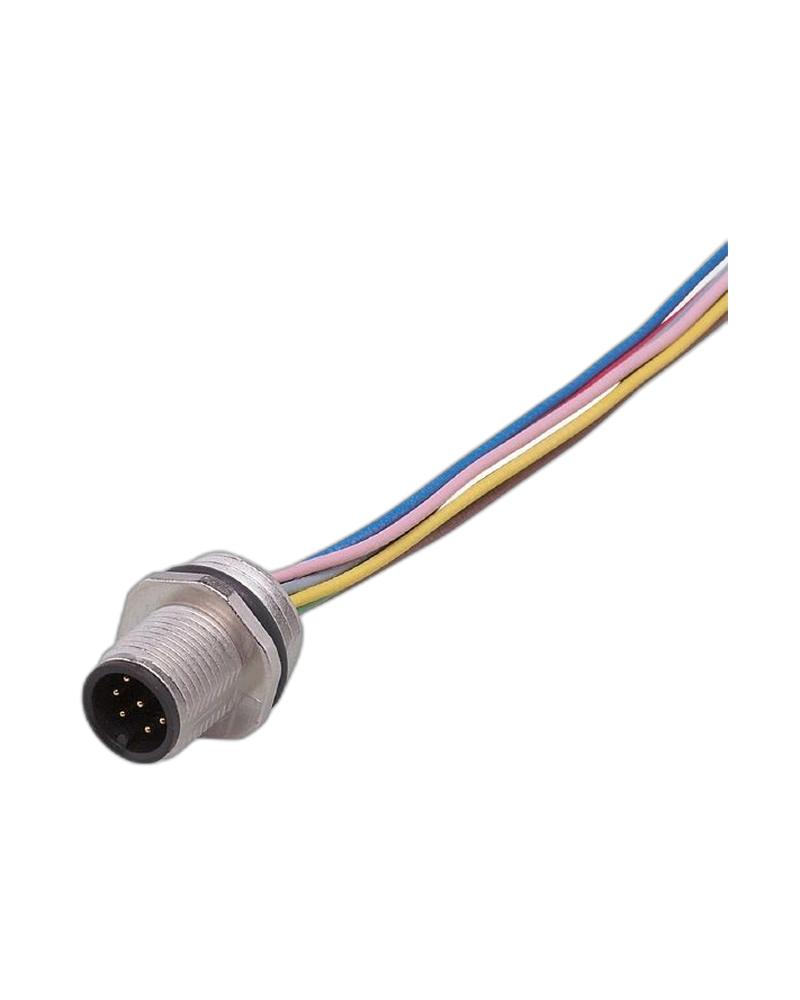

The IFM E11194 is a straight bulkhead adapter connector combining a PG9 mounting arrangement with an eight-contact M12 interface. It supports AC/DC operation below 50 V AC and 75 V DC. The connector provides IP68 protection and uses a nickel-plated die-cast zinc housing. A 0.5 m PVC cable with eight 0.25 mm² conductors is included. It is suitable for industrial sensor and automation connection applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11194 is designed as a bulkhead connector for panel and equipment installation. Its PG9 mounting thread provides a defined mechanical mounting interface. The M12 connector provides the sensor-side electrical interface. The straight configuration supports conventional wiring. The integrated O-ring helps support the environmental sealing arrangement.
The connector supports below 50 V AC and below 75 V DC. It provides eight M12 contacts with A coding. The cable uses eight 0.25 mm² conductors. IP68 protection supports demanding industrial environments. The 0.5 m cable provides a compact connection arrangement.
The housing is manufactured from nickel-plated die-cast zinc. This provides a robust mechanical structure for bulkhead installation. The connector uses a straight M12 interface. The PG9 mounting thread allows secure panel installation. The supplied cable simplifies connection to compatible equipment.
PG9 mounting thread
M12 interface
8 contacts
A-coded
Straight design
50 V AC maximum class
75 V DC maximum class
IP68 protection
0.5 m PVC cable
8 × 0.25 mm² conductors
Nickel-plated die-cast zinc housing
O-ring sealing
Bulkhead connector
Industrial connection technology
Single assembly
Panel mounting
Sensor connections
Industrial automation
Control cabinets
Machine wiring
Automation panels
Process equipment
Sensor interfaces
The E11194 combines panel mounting and M12 connectivity in one compact assembly. Its PG9 mounting interface simplifies equipment integration. IP68 protection supports demanding industrial installations. The eight-contact design is useful for compatible multi-wire sensor connections. Its pre-installed cable reduces field assembly work.
Install the connector through the appropriate PG9 mounting location. Ensure the O-ring is correctly seated. Connect the M12 interface securely. Route the cable without excessive mechanical stress. Inspect the sealing area during maintenance.
| Specification | E11194 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11194 |
| Product type | Bulkhead adapter plug |
| Product code | ESTGH080MSS00,5E08 |
| Mounting thread | PG9 |
| Connector | M12 |
| Contacts | 8 |
| Coding | A |
| Design | Straight |
| AC voltage | <50 V |
| DC voltage | <75 V |
| Protection | IP68 |
| Ambient temperature | -25 to +85 °C |
| Cable length | 0.5 m |
| Cable material | PVC |
| Conductors | 8 |
| Conductor size | 0.25 mm² |
| Housing | Die-cast zinc |
| Surface | Nickel plated |
| O-ring | Included |
| Mounting | Panel/bulkhead |
| Connector function | Sensor connection |
| Product family | Adapter connectors |
| Application | Industrial automation |
| Mechanical function | Bulkhead mounting |
| Electrical function | M12 connection |
| Cable termination | Pre-assembled |
| Pack quantity | 1 |
| Connector orientation | Straight |
