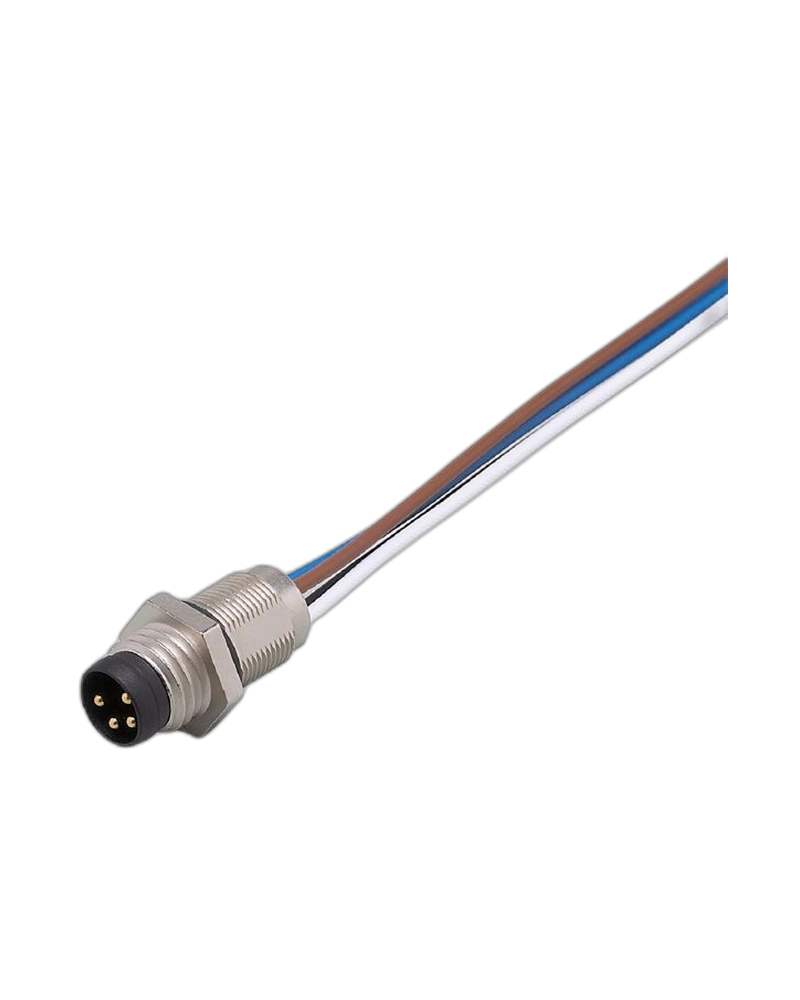

The IFM E11190 is a straight M8 adapter plug designed for industrial sensor connections. It provides an M8 interface with four contacts and A coding. The connector uses a 0.5 m PVC cable and a nickel-plated brass housing. It supports 45 V AC / 70 V DC and IP67 protection. The compact adapter design is suitable for sensor wiring and machine automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11190 provides a practical adapter connection for compatible M8 sensor systems. Its straight configuration supports conventional cable routing. The nickel-plated brass housing provides a robust mechanical structure. The 0.5 m PVC cable provides a short connection length. The compact design is suitable for machine-level sensor connections.
The connector uses four contacts with A coding. It supports 45 V AC and 70 V DC operating voltage. The 0.5 m cable contains four 0.25 mm² conductors. IP67 protection provides protection against dust and water exposure under the specified conditions. The connector is suitable for compatible low-voltage sensor circuits.
The M8 connector should be correctly aligned before mating. The short cable length helps keep machine wiring compact. The nickel-plated housing supports secure mechanical connection. Cable routing should avoid excessive pulling or bending. Proper connector engagement should be verified before commissioning.
M8 adapter plug
4 contacts
A-coded
Straight design
45 V AC operation
70 V DC operation
IP67 protection
0.5 m PVC cable
4 × 0.25 mm² conductors
Nickel-plated brass housing
Approx. 12 g weight
Compact construction
Industrial sensor connection
Secure threaded interface
Single cable assembly
M8 sensors
Industrial automation
Machine wiring
Position sensors
Control equipment
Sensor panels
Production machinery
Automation cabinets
The E11190 provides a compact M8 connection solution for industrial sensor wiring. Its 0.5 m cable is suitable for short connection distances. The brass housing provides mechanical durability. IP67 protection supports typical industrial environments. Its compact design helps simplify sensor-level cable routing.
Check the M8 connector compatibility before installation. Align the connector correctly before tightening. Route the cable away from moving parts. Inspect the PVC sheath for damage. Check the connection periodically during machine maintenance.
| Specification | E11190 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11190 |
| Product type | Adapter plug |
| Product code | ESTGF040MSS00,5E04 |
| Connector | M8 |
| Contacts | 4 |
| Coding | A |
| Design | Straight |
| AC voltage | 45 V |
| DC voltage | 70 V |
| Protection | IP67 |
| Protection class | III |
| Ambient temperature | -25 to +85 °C |
| Cable length | 0.5 m |
| Cable material | PVC |
| Conductor count | 4 |
| Conductor size | 0.25 mm² |
| Housing material | Brass, nickel-plated |
| Weight | Approx. 12 g |
| Cable colour | Black |
| Connector function | Sensor connection |
| Installation | Cable connection |
| Application | Industrial automation |
| Product family | Adapter plugs |
| Mechanical function | Connector adaptation |
| Electrical function | Sensor connection |
| Pack quantity | 1 |
| Connector orientation | Straight |
