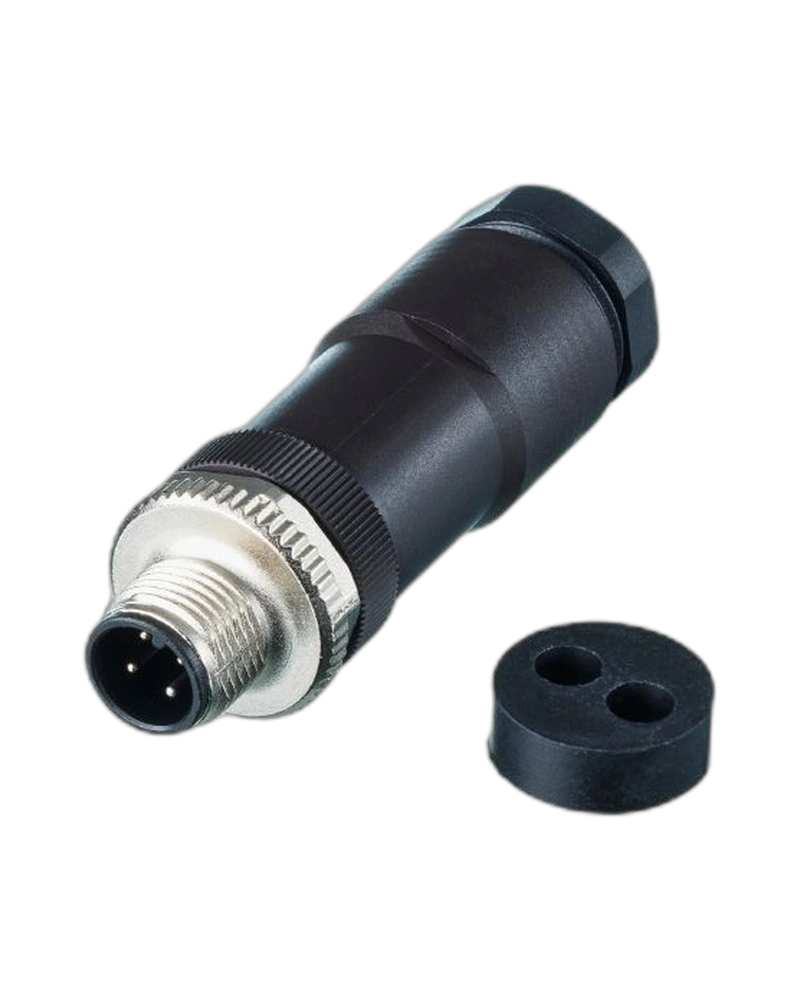

The IFM E11159 is a straight M12 wirable plug designed for industrial sensor and automation connections. It provides four gold-plated contacts and an A-coded M12 interface. The connector is suitable for field wiring with compatible conductors and cable diameters. Its PA body and nickel-plated brass locking nut provide a compact industrial construction. The connector is designed for secure and repeatable cable termination.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11159 uses a straight M12 plug arrangement. Its PA housing provides electrical insulation and mechanical support. The nickel-plated brass nut provides a threaded locking interface. Gold-plated contacts support reliable electrical connection. The connector is suitable for field installation where cable termination is required.
The plug uses screw-terminal wiring for compatible cable sizes. The design supports conductor installation without requiring a pre-moulded cable assembly. This makes it useful for custom cable lengths. Proper conductor preparation improves connection reliability. The locking nut should be secured after cable termination.
The connector is suitable for sensor cables used in factory automation. Its compact construction allows installation close to machine sensors. The straight design supports direct cable routing. The threaded M12 connection provides secure mating with compatible sockets. Periodic inspection helps maintain connection reliability.
M12 wirable plug
Four contacts
A-coded
Straight design
Gold-plated contacts
PA housing
Nickel-plated brass nut
Screw-terminal wiring
Field-wirable design
Industrial automation connector
Compact construction
Secure threaded locking
Sensor connection
Cable termination
Single connector
Industrial sensors
Machine automation
Position sensing
Control systems
Field wiring
Production equipment
Machine control
Automation panels
Sensor cable assembly
The E11159 provides a practical field-wirable M12 plug solution. Its screw-terminal construction allows custom cable preparation. Gold-plated contacts support reliable electrical connection. The compact housing is suitable for machine-level installations. Its threaded locking mechanism provides secure connector engagement.
Prepare the cable according to the permitted conductor range. Terminate each conductor securely. Assemble the connector body correctly. Tighten the locking nut after mating. Inspect the connector periodically for loose wiring or damage.
| Specification | E11159 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11159 |
| Product type | Wirable plug |
| Product code | SSTGH040MSSFKPG |
| Connector | M12 |
| Gender | Male plug |
| Contacts | 4 |
| Coding | A |
| Design | Straight |
| Contact finish | Gold plated |
| Housing material | PA |
| Nut material | Brass, nickel-plated |
| Wiring | Screw terminals |
| Conductor capacity | Up to 0.75 mm² |
| Cable diameter | Approx. 4–6 mm |
| Protection | IP68 class family |
| Locking | Threaded |
| Mounting | Cable |
| Application | Sensor connection |
| Product family | Wirable plugs |
| Mechanical function | Cable termination |
| Electrical function | Sensor interface |
| Industrial use | Automation |
| Machine use | Supported |
| Sensor application | Supported |
| Cable assembly | Field assembled |
| Installation type | Manual wiring |
| Pack quantity | 1 |
| Connector orientation | Straight |
