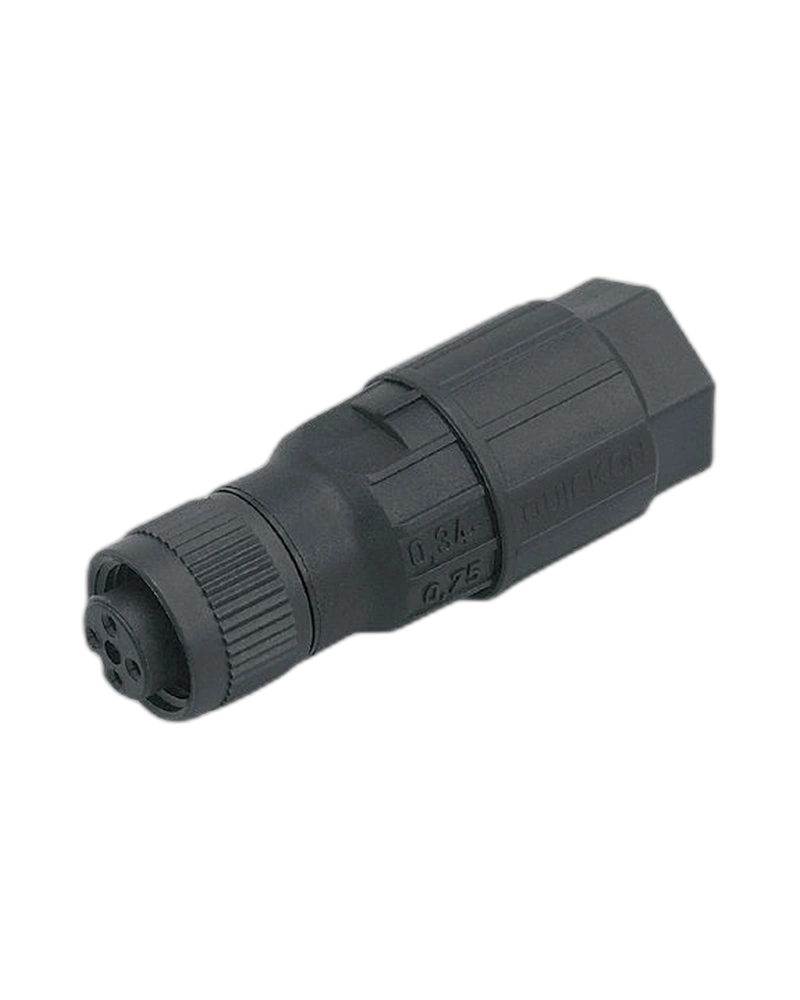

The IFM E11145 is a straight M12 female wirable connector designed for industrial sensor connections. It provides four A-coded contacts and supports a maximum total current of 4 A. The connector operates below 45 V AC / 70 V DC and provides IP67 protection. Its PA 6.6 body and nut provide a compact and lightweight construction. Insulation displacement technology allows compatible cables to be terminated without conventional screw terminals.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11145 provides a female M12 socket interface for compatible sensors and automation equipment. Its straight design simplifies conventional cable routing. The PA 6.6 body and nut provide a lightweight connector construction. The connector dimensions are approximately 18 × 18 × 52 mm. Its four-contact A-coded arrangement supports common industrial sensor connections.
The connector supports operating voltage below 45 V AC / 70 V DC. Its maximum total current load is 4 A. The field connection supports 0.34–0.75 mm² conductors. The compatible cable sheath diameter is approximately 4–7.5 mm. IP67 protection supports industrial environmental conditions.
The insulation displacement connection method simplifies cable termination. The installer can prepare the cable according to the connector requirements. Correct cable seating is important for reliable contact. The straight connector can be installed where direct cable routing is preferred. The connection should be inspected after assembly.
M12 female wirable socket
A-coded connector
4 contacts
Straight design
Operating voltage below 45 V AC / 70 V DC
4 A current load
IP67 protection
PA 6.6 body
PA 6.6 nut
18 × 18 × 52 mm dimensions
13.5 g weight
Insulation displacement technology
0.34–0.75 mm² conductor range
Field-wirable connection
Industrial sensor connector
M12 sensor connections
Industrial automation
Field wiring
Machine control
Control panels
Position sensors
Automation equipment
Industrial machinery
The E11145 provides a practical female M12 connection for field wiring. Its insulation displacement design simplifies cable termination. The compact connector body is suitable for machine-level installation. IP67 protection supports industrial operating conditions. Its four-contact A-coded configuration is suitable for compatible sensor interfaces.
Prepare the cable according to the specified conductor range. Position the conductors correctly inside the connector. Secure the socket before commissioning. Inspect the cable entry for mechanical damage. Check the connection during preventive maintenance.
| Specification | E11145 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11145 |
| Product type | Wirable socket |
| Product code | SDOGH040PLSFKSK |
| Connector | M12 |
| Gender | Female socket |
| Contacts | 4 |
| Coding | A |
| Design | Straight |
| Voltage | <45 V AC / <70 V DC |
| Current | 4 A |
| Protection | IP67 |
| Ambient temperature | -25 to +60 °C |
| Body material | PA 6.6 |
| Nut material | PA 6.6 |
| Dimensions | 18 × 18 × 52 mm |
| Weight | 13.5 g |
| Wiring technology | Insulation displacement |
| Conductor size | 0.34–0.75 mm² |
| Core insulation | PVC/PE |
| Cable sheath | Ø4–7.5 mm |
| Mounting | Cable mounting |
| Locking | Threaded |
| Application | Sensor connection |
| Product family | Wirable sockets |
| Mechanical function | Cable termination |
| Electrical function | Sensor connection |
| Pack quantity | 1 |
| Connector orientation | Straight |
