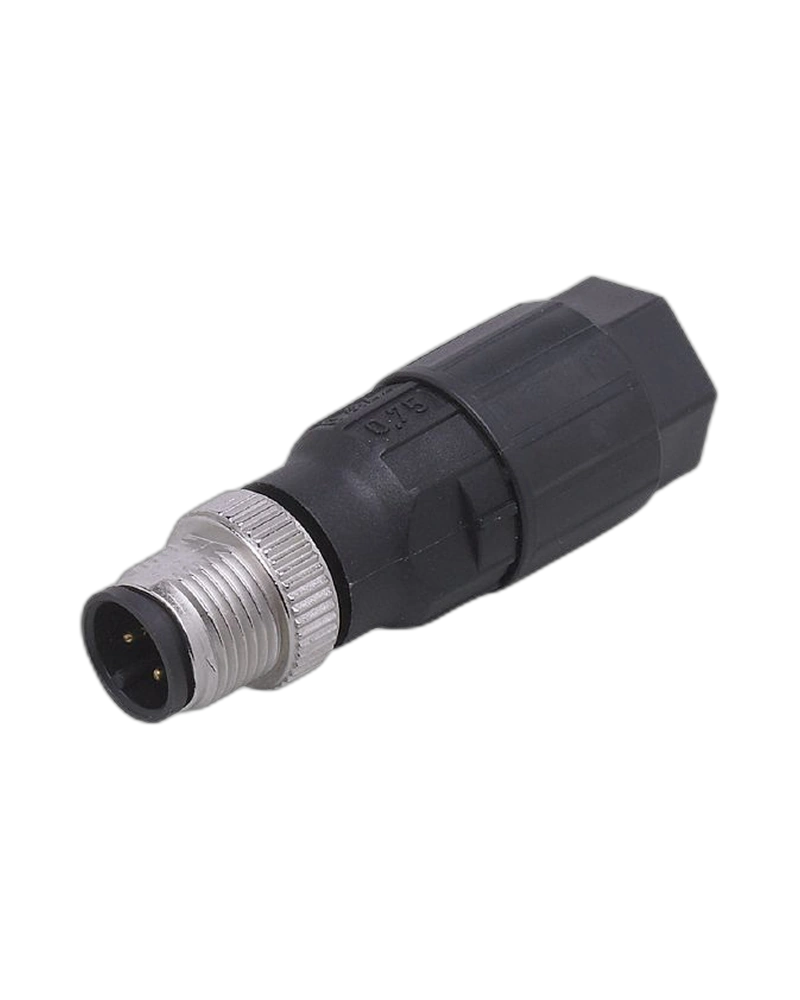

The IFM E11144 is a straight M12 wirable plug designed for industrial sensor and automation connections. It uses a four-contact A-coded M12 interface and supports up to 4 A current. The connector supports operating voltage below 250 V AC/DC and provides IP67 protection. Its PA 6.6 body and nickel-plated zinc nut provide a practical industrial construction. The field-wirable design allows compatible cables to be terminated directly at the connector.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11144 uses a straight M12 connector with A coding. Its 18 × 18 × 55 mm dimensions provide a compact field-wirable connector format. The PA 6.6 moulded body provides mechanical insulation and support. The zinc nickel-plated nut provides threaded locking. The design is suitable for direct cable termination.
The plug supports operating voltage below 250 V AC/DC. Its maximum total current load is 4 A. Insulation displacement technology supports conductors from 0.34 to 0.75 mm². Compatible cable sheath diameters range from approximately 4 to 7.5 mm. IP67 protection supports industrial environmental conditions.
The field-wirable construction allows the installer to terminate the cable at the connector. This can simplify custom cable-length requirements. The straight connector format supports conventional cable routing. Proper conductor preparation is important for reliable electrical contact. The connector should be correctly assembled before commissioning.
M12 wirable plug
A-coded connector
4 contacts
Straight design
Operating voltage below 250 V AC/DC
4 A maximum current load
IP67 protection
PA 6.6 body
Nickel-plated zinc nut
18 × 18 × 55 mm dimensions
15.4 g weight
Insulation displacement technology
0.34–0.75 mm² conductor range
Field-wirable construction
Industrial connector
Industrial sensor wiring
Machine automation
Field termination
Control panels
Industrial equipment
Position sensors
Automation cabinets
Machine control
Production machinery
The E11144 provides a flexible field-wiring solution for compatible M12 connections. Its termination method allows cable preparation at the installation site. The compact straight design is suitable for conventional cable routing. IP67 protection supports demanding industrial installations. The robust connector materials provide dependable mechanical support.
Prepare the cable according to the connector requirements. Ensure the conductors are correctly positioned before assembly. Tighten the connector locking arrangement securely. Inspect the cable entry for mechanical stress. Replace damaged connectors rather than operating with compromised insulation.
| Specification | E11144 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11144 |
| Product type | Wirable plug |
| Product code | SSTGH040ZDSFKSK |
| Connector | M12 |
| Gender | Plug |
| Contacts | 4 |
| Coding | A |
| Design | Straight |
| Voltage | <250 V AC/DC |
| Current | 4 A |
| Protection | IP67 |
| Ambient temperature | -25 to +60 °C |
| Body material | PA 6.6 |
| Nut material | Zinc, nickel-plated |
| Dimensions | 18 × 18 × 55 mm |
| Weight | 15.4 g |
| Wiring technology | Insulation displacement |
| Conductor size | 0.34–0.75 mm² |
| Core insulation | PVC/PE |
| Cable sheath | Ø4–7.5 mm |
| Mounting | Cable mounting |
| Locking | Threaded |
| Application | Industrial connection |
| Product family | Wirable connectors |
| Mechanical function | Cable termination |
| Electrical function | Sensor connection |
| Pack quantity | 1 |
| Connector orientation | Straight |
