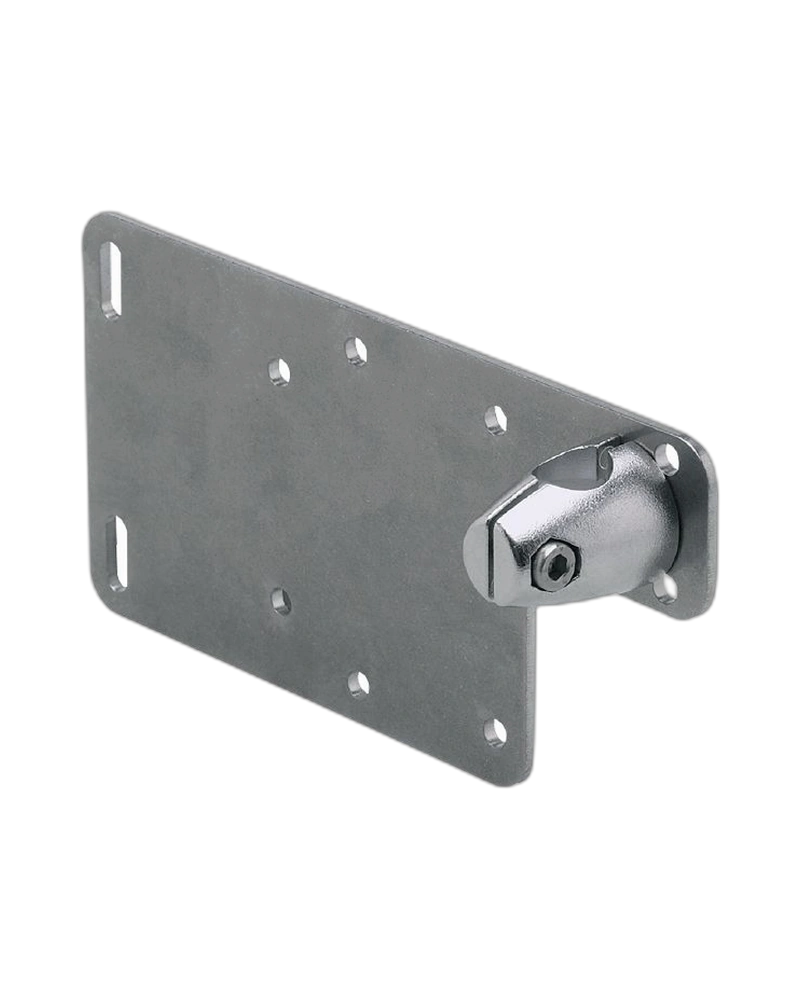

The IFM E11122 is a straight mounting set designed for ICE, ID and KD position sensors. It uses clamp mounting and a Ø14 mm rod mounting arrangement. The clamp and fixture are manufactured from stainless steel for robust industrial applications. Its straight configuration provides direct sensor orientation toward the detection target. The complete assembly weighs approximately 308–311 g.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11122 is designed for straight installation of compatible position sensors. Its configuration is suitable for ICE, ID and KD sensor types. The Ø14 mm rod mounting arrangement provides a stable structural connection. The straight bracket simplifies direct alignment with the monitored target. It is suitable for industrial machinery and automation systems.
The mounting set uses stainless steel 316C for the clamp. The fixture uses stainless steel 316Ti / 1.4571. The stainless-steel construction provides robust mechanical support. The published assembled weight is approximately 308–311 g. The complete mounting set is supplied as one unit.
The mounting arrangement allows the sensor to be positioned in the required direction. The straight bracket is suitable where a direct sensing path is preferred. Mechanical adjustment can be completed before final tightening. The robust structure helps maintain the selected sensor position. This makes the bracket useful for repeatable industrial sensor installation.
Straight mounting bracket
ICE sensor compatibility
ID sensor compatibility
KD sensor compatibility
Clamp mounting
Ø14 mm rod mounting
Stainless steel construction
316C clamp
316Ti fixture
Approx. 308–311 g weight
Rigid mechanical support
Direct sensor orientation
Repeatable mounting
Industrial accessory
Complete mounting set
ICE sensors
ID sensors
KD sensors
Position detection
Industrial automation
Machine monitoring
Production machinery
Sensor fixtures
Machine tooling
The E11122 provides a robust straight mounting solution for compatible position sensors. Its direct geometry simplifies sensor alignment. Stainless steel construction supports demanding machine environments. The clamp and rod system provides stable mechanical positioning. It can reduce the need for custom mounting hardware.
Install the rod on a stable machine structure. Attach the clamp securely. Position the sensor toward the target. Tighten the mounting assembly after alignment. Inspect the bracket periodically for mechanical wear.
| Specification | E11122 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11122 |
| Product type | Mounting set |
| Product name | MOUNTING BRACKET STRAIGHT |
| Compatible sensors | ICE, ID, KD |
| Design | Straight |
| Mounting method | Clamp |
| Rod diameter | Ø14 mm |
| Clamp material | Stainless steel 316C |
| Fixture material | Stainless steel 316Ti |
| Material standard | 1.4571 |
| Weight | Approx. 308–311 g |
| Construction | Stainless steel |
| Sensor orientation | Adjustable |
| Mechanical function | Sensor support |
| Application | Position sensing |
| Industrial use | Automation |
| Machine installation | Supported |
| Position monitoring | Supported |
| Product family | Mounting sets |
| Component category | Sensor accessory |
| Mounting purpose | Position sensor |
| Bracket function | Mechanical fixation |
| Installation type | Rod/clamp |
| Mounting stability | Rigid |
| Sensor alignment | Adjustable |
| Maintenance | Mechanical inspection |
| Pack quantity | 1 |
| Application environment | Industrial machinery |
