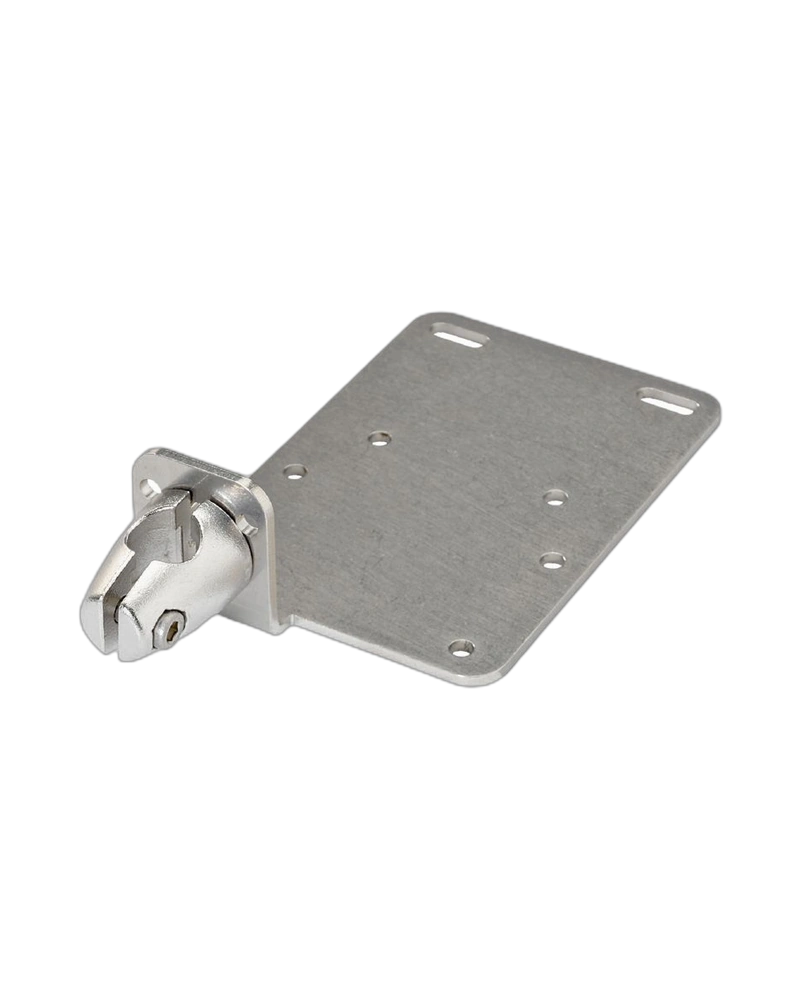

The IFM E11121 is an angled mounting set designed for position sensors used with ICE, ID and KD types. It uses clamp mounting with a Ø14 mm rod mounting arrangement. The clamp and fixture are manufactured from stainless steel for robust industrial use. Its angled design allows flexible sensor orientation around machine structures. The assembled mounting set weighs approximately 306 g.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11121 provides an angled bracket for ICE, ID and KD sensor types. The angled geometry helps position sensors where a straight mounting configuration is unsuitable. The Ø14 mm rod arrangement provides a stable mounting reference. The clamp design makes mechanical installation straightforward. The bracket can be adjusted before final tightening.
The clamp is made from stainless steel 316C. The fixture is manufactured from stainless steel 316Ti / 1.4571. This material combination provides robust mechanical support. The assembled component weighs approximately 306 g. It is suitable for demanding industrial machine environments.
The angled configuration provides additional freedom for sensor orientation. The sensor can be positioned toward the required detection area. Once aligned, the clamp maintains the mechanical position. This helps improve repeatability during machine operation. The arrangement can also simplify sensor replacement.
Angled mounting bracket
ICE sensor compatibility
ID sensor compatibility
KD sensor compatibility
Clamp mounting
Ø14 mm rod mounting
Stainless steel 316C clamp
Stainless steel 316Ti fixture
Approx. 306 g weight
Industrial construction
Adjustable orientation
Rigid sensor support
Repeatable mounting
Complete mounting set
Machine automation accessory
ICE position sensors
ID position sensors
KD position sensors
Industrial automation
Machine position monitoring
Production equipment
Machine tooling
Sensor fixtures
Automation systems
The E11121 provides flexible angled sensor mounting for compatible sensor types. Stainless steel construction supports durable industrial installation. The Ø14 mm rod mounting arrangement provides stable mechanical positioning. Its angled geometry helps solve difficult sensor orientation requirements. The complete mounting set can reduce custom fabrication work.
Install the rod and clamp on a rigid machine structure. Position the bracket toward the required detection point. Adjust the sensor before final tightening. Verify the target alignment after installation. Check all mounting joints during machine maintenance.
| Specification | E11121 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11121 |
| Product type | Mounting set |
| Product name | MOUNTING BRACKET ANGLED |
| Compatible types | ICE, ID, KD |
| Design | Angled |
| Mounting method | Clamp |
| Rod mounting | Ø14 mm |
| Clamp material | Stainless steel 316C |
| Fixture material | Stainless steel 316Ti |
| Material standard | 1.4571 |
| Weight | Approx. 306 g |
| Construction | Stainless steel |
| Sensor orientation | Adjustable |
| Mechanical function | Sensor support |
| Application | Position sensing |
| Industrial use | Automation |
| Machine installation | Supported |
| Position monitoring | Supported |
| Product family | Mounting sets |
| Component category | Sensor accessory |
| Mounting purpose | Position sensor |
| Bracket function | Mechanical fixation |
| Installation type | Rod/clamp |
| Mounting stability | Rigid |
| Sensor alignment | Adjustable |
| Maintenance | Mechanical inspection |
| Pack quantity | 1 |
| Application environment | Industrial machinery |
