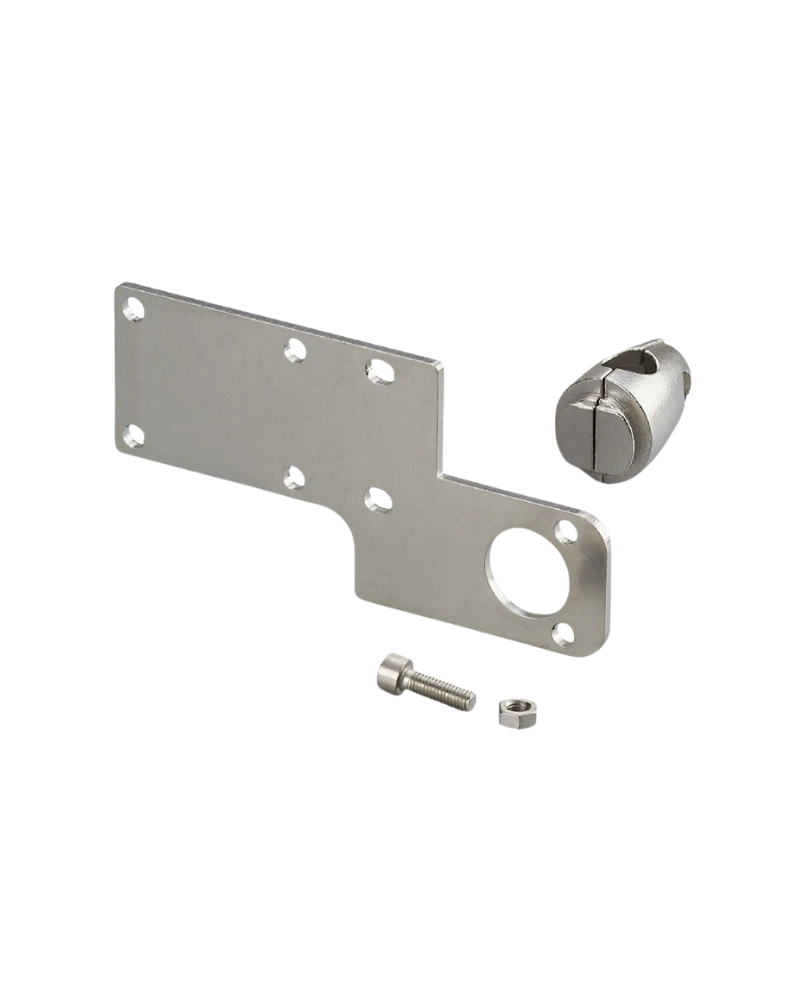

The IFM E11120 is a straight mounting bracket designed for flush-mountable IME and IMC position sensors. It uses clamp mounting and a Ø14 mm rod mounting arrangement. Stainless steel 316C and 316Ti construction provide a robust industrial mounting structure. The straight design is suitable where direct sensor orientation is required. The mounting set weighs approximately 175–177 g depending on the published specification revision.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11120 provides a straight mounting configuration for compatible position sensors. It is designed for flush-mountable IME and IMC sensors. The straight geometry allows direct sensor orientation toward the target. The Ø14 mm rod mounting arrangement provides a stable mechanical reference. This makes the mounting set suitable for industrial machine construction.
The clamp uses stainless steel 316C material. The fixture uses stainless steel 316Ti / 1.4571 material. Stainless steel construction provides strong mechanical support for sensor installations. The published weight is approximately 175.5–177 g. The mounting set is designed for industrial use where rigid sensor fixation is required.
The bracket allows the sensor position to be adjusted during installation. The straight design simplifies alignment with the monitored target. After adjustment, the clamp can be securely fixed to maintain the sensor position. This helps provide repeatable position detection. It can also simplify future sensor replacement.
Straight mounting bracket
For IME sensors
For IMC sensors
Flush-mountable sensor support
Clamp mounting
Ø14 mm rod mounting
Stainless steel 316C clamp
Stainless steel 316Ti fixture
Approx. 175.5–177 g weight
Rigid mechanical structure
Industrial mounting accessory
Stable sensor alignment
Repeatable positioning
Complete mounting set
Machine automation support
Position sensors
Industrial automation
Machine position detection
Production machinery
Machine fixtures
Sensor mounting
Automation equipment
Industrial control systems
The E11120 provides a direct and stable mounting solution for compatible position sensors. Its straight configuration simplifies target alignment. Stainless steel construction provides robust mechanical support. The clamp and rod arrangement allow practical machine integration. It is suitable for industrial applications where sensor position must remain stable.
Install the mounting rod in a suitable machine location. Secure the clamp before positioning the sensor. Align the sensing face toward the target. Tighten the assembly after alignment. Inspect all mechanical joints during maintenance.
| Specification | E11120 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11120 |
| Product type | Mounting set |
| Product name | MOUNTING BRACKET STRAIGHT |
| Sensor types | IME, IMC |
| Sensor mounting | Flush-mountable |
| Design | Straight |
| Mounting method | Clamp |
| Rod diameter | Ø14 mm |
| Clamp material | Stainless steel 316C |
| Fixture material | Stainless steel 316Ti |
| Material standard | 1.4571 |
| Weight | Approx. 175.5–177 g |
| Construction | Stainless steel |
| Sensor orientation | Adjustable |
| Mechanical function | Sensor support |
| Application | Position sensing |
| Industrial use | Automation |
| Machine installation | Supported |
| Position monitoring | Supported |
| Product family | Mounting sets |
| Component category | Sensor accessory |
| Mounting purpose | Position sensor |
| Bracket function | Mechanical fixation |
| Installation type | Rod/clamp |
| Maintenance | Mechanical inspection |
| Mounting stability | Rigid |
| Pack quantity | 1 |
| Application environment | Industrial machinery |
