The IFM E11119 is an angled mounting set for flush-mountable IME and IMC position sensors. It uses clamp mounting with a Ø14 mm rod mounting arrangement. Stainless steel 316C and 316Ti materials provide a robust mechanical structure. The angled configuration provides flexibility for sensor positioning in industrial machinery. The assembled component weighs approximately 175 g.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11119 is designed for applications requiring an angled sensor mounting position. It is intended for flush-mountable IME and IMC sensors. The angled bracket helps orient the sensor toward the required detection point. The Ø14 mm rod mounting arrangement provides mechanical flexibility. This configuration is suitable for industrial automation fixtures.
The clamp is manufactured from stainless steel 316C. The fixture uses stainless steel 316Ti / 1.4571. These materials provide a strong and durable mounting structure. The assembled weight is approximately 175 g. The metal construction is suitable for machine environments where rigid support is required.
Correct sensor alignment is important for repeatable position detection. The angled bracket provides adjustment possibilities during installation. The sensor can be positioned relative to the target before final tightening. Once secured, the bracket maintains the required orientation. This supports reliable machine monitoring.
Angled mounting bracket
Designed for IME sensors
Designed for IMC sensors
Flush-mountable sensor support
Clamp mounting
Ø14 mm rod mounting
Stainless steel 316C clamp
Stainless steel 316Ti fixture
Approx. 175 g weight
Rigid construction
Adjustable orientation
Industrial mounting accessory
Repeatable positioning
Complete mounting set
Machine automation support
IME position sensors
IMC position sensors
Industrial automation
Machine position monitoring
Production machinery
Sensor fixtures
Machine tooling
Automation equipment
The E11119 provides a rigid mounting solution for compatible flush-mountable sensors. Its angled geometry allows practical positioning around machine structures. Stainless-steel construction supports durable industrial installation. The clamp and rod arrangement provide flexibility during sensor setup. The mounting set can reduce the need for custom brackets.
Select a suitable Ø14 mm rod mounting location. Install the clamp securely before positioning the sensor. Adjust the sensor toward the target. Tighten the assembly after confirming alignment. Inspect the bracket and clamp during preventive maintenance.
| Specification | E11119 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11119 |
| Product type | Mounting set |

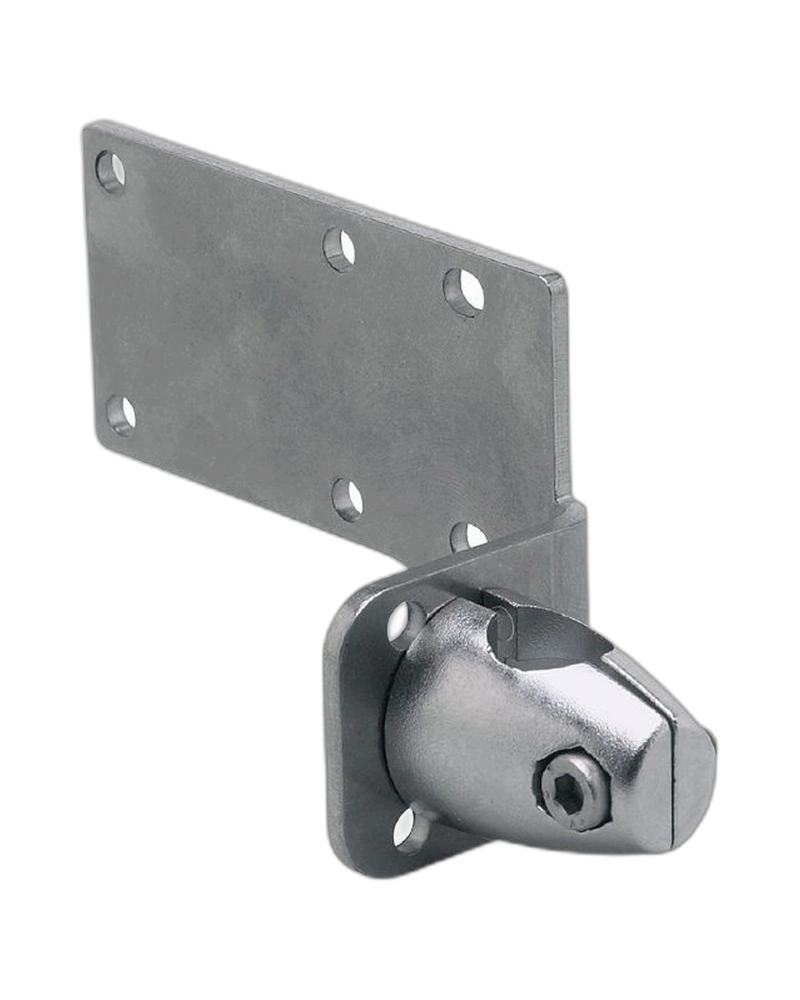

| Product name | MOUNTING BRACKET ANGLED |
| Sensor types | IME, IMC |
| Sensor mounting | Flush-mountable |
| Design | Angled |
| Mounting type | Clamp |
| Rod mounting | Ø14 mm |
| Clamp material | Stainless steel 316C |
| Fixture material | Stainless steel 316Ti |
| Material standard | 1.4571 |
| Weight | Approx. 175 g |
| Construction | Stainless steel |
| Sensor orientation | Adjustable |
| Mechanical function | Sensor support |
| Application | Position sensing |
| Industrial use | Automation |
| Machine installation | Supported |
| Position monitoring | Supported |
| Product family | Mounting sets |
| Component category | Sensor accessory |
| Mounting purpose | Position sensor |
| Bracket function | Mechanical fixation |
| Installation method | Rod/clamp |
| Maintenance | Mechanical inspection |
| Mounting stability | Rigid |
| Pack quantity | 1 |
| Application environment | Industrial machinery |
