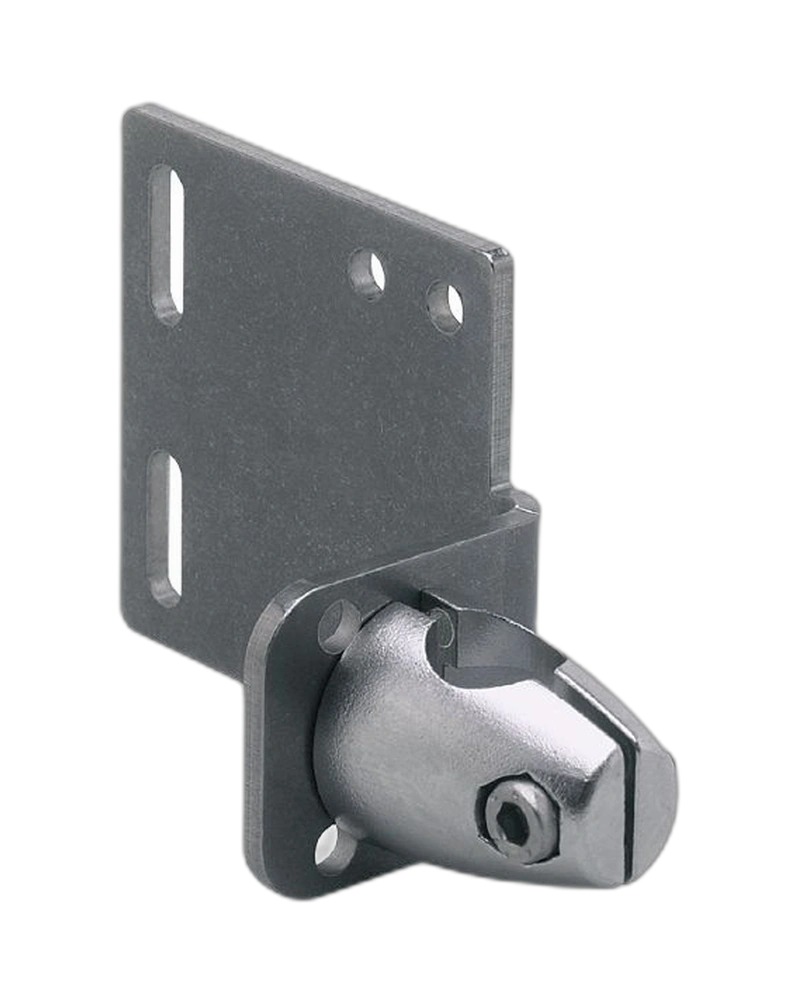

The IFM E11118 is an angled mounting set designed for compatible position sensors. It is intended for IA, IB and KB sensor types and uses a clamp-mounting arrangement. The clamp and fixture are manufactured from stainless steel for robust industrial installation. Its angled geometry allows flexible sensor positioning in restricted machine layouts. The complete assembly weighs approximately 172 g.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11118 uses an angled bracket configuration to provide greater installation flexibility. The geometry is suitable where a straight bracket cannot provide the required sensor orientation. Its design supports IA, IB and KB sensor types. The angled arrangement can help position the sensor around machine structures. This makes the mounting set useful for compact automation installations.
The clamp uses stainless steel 316C construction. The fixture uses stainless steel 316Ti / 1.4571 material. This provides a robust mechanical structure for industrial installations. The assembled mounting set weighs approximately 172 g. The stainless-steel construction is suitable for demanding machine environments.
The angled arrangement allows the sensor to be positioned according to the machine geometry. Clamp mounting provides a practical method for securing the assembly. The design can reduce the need for custom mounting plates. Sensor orientation can be adjusted before final tightening. This supports reliable position detection after installation.
Angled mounting bracket
IA sensor compatibility
IB sensor compatibility
KB sensor compatibility
Clamp mounting
Stainless steel 316C clamp
Stainless steel 316Ti fixture
Approx. 172 g weight
Adjustable sensor orientation
Industrial mounting set
Rigid mechanical support
Compact installation
Repeatable positioning
Machine automation accessory
Complete mounting assembly
Position sensors
Industrial automation
Machine monitoring
Sensor fixtures
Production machinery
Machine tooling
Automation systems
Industrial equipment
The angled design provides installation flexibility where straight brackets are unsuitable. Stainless-steel construction provides a robust mechanical mounting solution. The clamp arrangement simplifies installation on compatible machine structures. The bracket supports accurate sensor positioning relative to the target. It is useful for industrial machines requiring adjustable sensor orientation.
Install the clamp on a stable machine structure. Position the sensor toward the target before tightening. Verify the sensor alignment after installation. Check fastening points periodically for movement. Inspect the stainless-steel components for mechanical damage.
| Specification | E11118 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11118 |
| Product type | Mounting set |
| Product name | MOUNTING BRACKET ANGLED IA/IB |
| Application | Position sensors |
| Compatible types | IA, IB, KB |
| Bracket design | Angled |
| Mounting method | Clamp |
| Clamp material | Stainless steel 316C |
| Fixture material | Stainless steel 316Ti |
| Material standard | 1.4571 |
| Construction | Stainless steel |
| Weight | Approx. 172 g |
| Sensor positioning | Adjustable |
| Mechanical function | Sensor support |
| Installation | Clamp mounting |
| Industrial use | Automation |
| Machine application | Position sensing |
| Sensor alignment | Adjustable |
| Mounting stability | High |
| Product family | Mounting sets |
| Component category | Sensor accessory |
| Mounting purpose | Position sensor |
| Bracket function | Mechanical fixation |
| Maintenance | Mechanical inspection |
| Replacement | Compatible sensor mounting |
| Pack configuration | Complete mounting set |
| Application category | Position detection |
| Installation environment | Industrial machinery |
