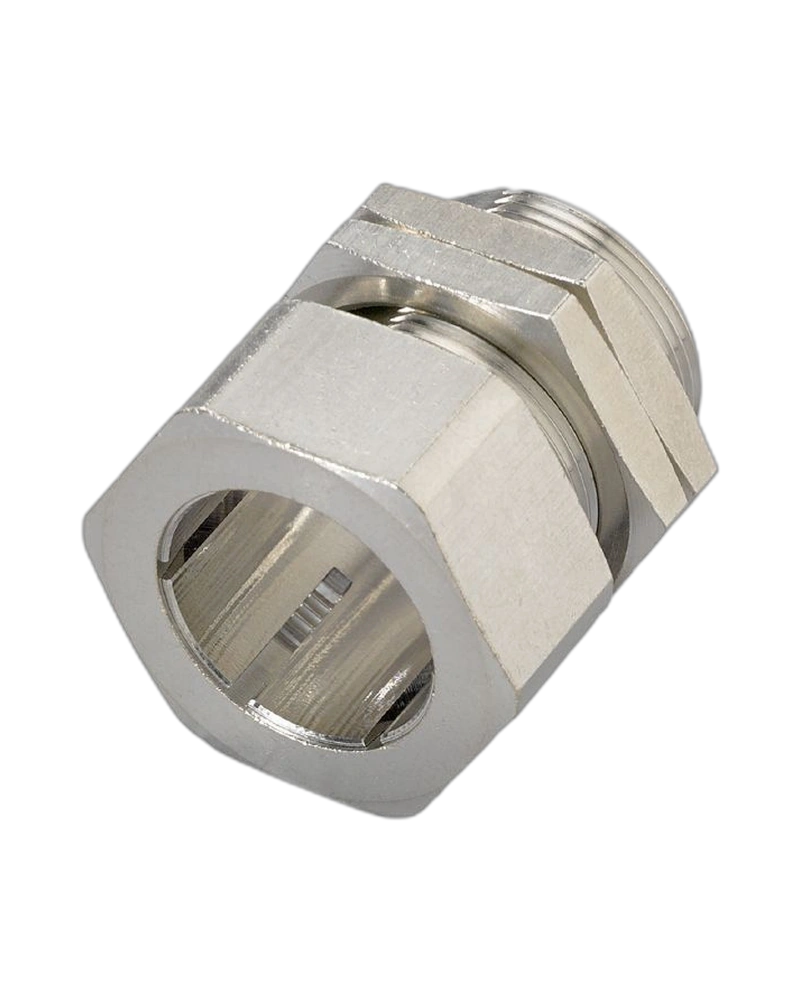

The IFM E11115 is a mounting sleeve designed for M18 cylindrical sensors. It provides a defined end stop for repeatable and stable sensor positioning. The sleeve uses a M22 x 1 mounting thread with an 18 mm internal diameter. Its brass construction with white bronze coating provides a robust mechanical mounting solution. It is suitable for industrial position sensing and automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11115 provides a dedicated mounting interface for compatible M18 sensors. Its 18 mm internal diameter is designed to accommodate the corresponding cylindrical sensor body. The M22 x 1 external mounting thread allows secure installation into suitable machine structures. The integrated end stop establishes a defined sensor position during installation. This arrangement helps maintain consistent sensor alignment during operation.
The sleeve is manufactured from brass with a white bronze-coated surface. This construction provides a durable mechanical interface for industrial sensor mounting. The component weighs approximately 66 g for practical handling during installation. Its compact threaded configuration allows it to be integrated into machine fixtures. The end-stop design also helps simplify sensor replacement.
The integrated end stop prevents uncontrolled sensor insertion during mounting. This provides a repeatable reference position for compatible M18 sensors. Correct positioning can reduce the need for repeated sensor adjustment after replacement. The sensor sensing face should be aligned according to the installation drawing. The sleeve is therefore useful for consistent machine position detection.
M18 sensor mounting sleeve
M22 x 1 mounting thread
18 mm internal diameter
Integrated end stop
Brass construction
White bronze-coated surface
Approx. 66 g weight
Defined sensor positioning
Repeatable installation
Industrial mounting accessory
Compact threaded design
Suitable for cylindrical sensors
Easy sensor replacement
Stable mechanical retention
Single-piece mounting component
M18 position sensors
Industrial automation
Machine position detection
Production machinery
Cylinder position sensing
Machine fixtures
Sensor replacement applications
Automated production lines
Industrial equipment
Machine control systems
The E11115 simplifies the mechanical installation of compatible M18 sensors. Its integrated end stop provides a consistent reference position for repeated installation. The brass construction offers a durable mounting interface for industrial environments. The threaded design allows the sleeve to be securely integrated into machine structures. It is especially useful where accurate sensor positioning must be maintained.
Clean the mounting thread before installation. Insert the M18 sensor until it reaches the defined end position. Follow the recommended sensing-face orientation during installation. Check the sleeve and mounting thread periodically for mechanical damage. Replace the component if the end stop or thread becomes damaged.
| Specification | E11115 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11115 |
| Product type | Mounting sleeve |
| Product name | FIXING/M18/MODUL/MS/END STOP |
| Sensor type | M18 cylindrical sensor |
| Sensor size | M18 |
| Internal diameter | 18 mm |
| Mounting thread | M22 x 1 |
| Thread type | Metric |
| End stop | Integrated |
| Mounting function | Sensor positioning |
| Material | Brass |
| Surface coating | White bronze |
| Construction | Metal |
| Weight | Approx. 66 g |
| Installation | Threaded mounting |
| Sensor positioning | Defined |
| Sensor alignment | Defined by end stop |
| Mechanical retention | Threaded sleeve |
| Application | Position sensing |
| Industrial use | Automation |
| Machine application | Position detection |
| Replacement support | Repeatable positioning |
| Component category | Sensor accessory |
| Product family | Mounting accessories |
| Mounting method | Sleeve mounting |
| Sensor interface | Ø18 mm |
| Mechanical function | Sensor fixation |
| Pack quantity | 1 piece |
| Installation orientation | Sensing face aligned as specified |
