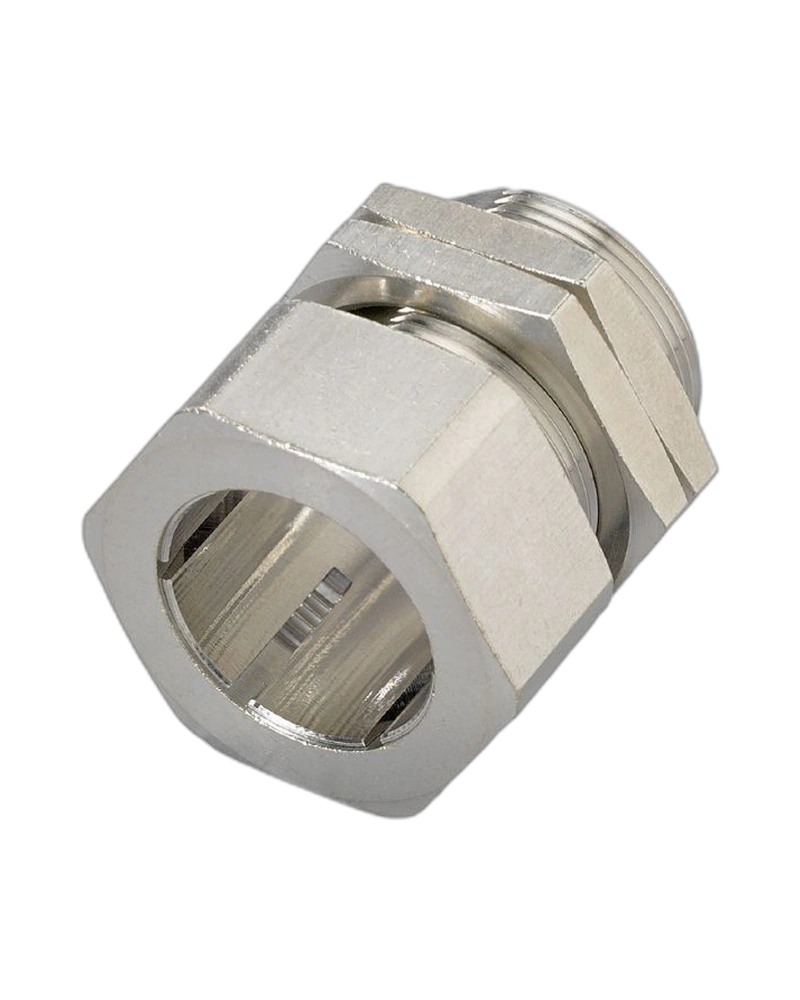

The IFM E11114 is a mounting sleeve with an integrated end stop for M12 cylindrical sensors. It provides a defined installation position to simplify sensor mounting and replacement. The sleeve uses a nickel-plated brass construction for robust mechanical performance. It has an M16 × 1 thread and a 12 mm internal diameter. The component is designed for reliable sensor positioning in industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11114 provides an M16 × 1 mounting thread and a 12 mm internal diameter. The integrated end stop establishes a defined installation position for compatible M12 sensors. Nickel-plated brass construction provides robust mechanical support. The design can help prevent sensor movement after installation. Two nuts are supplied with the component.
The end stop provides repeatable sensor placement during installation. This can reduce adjustment requirements when replacing compatible sensors. The sleeve is designed for cylindrical M12 sensor types. Its mechanical construction supports use in harsh industrial environments. The defined position helps maintain consistent sensor alignment.
Install the sleeve using the M16 × 1 thread. Insert the compatible M12 sensor until the defined end position is reached. Follow the installation direction specified for the sensor. Secure the mounting arrangement using the supplied nuts. Inspect the sleeve and nuts during preventive maintenance.
Mounting sleeve
M12 sensor compatibility
Integrated end stop
M16 × 1 thread
12 mm internal diameter
Nickel-plated brass construction
Two nuts supplied
Defined sensor position
Repeatable installation
Robust industrial design
Sensor replacement support
Mechanical mounting accessory
Compact construction
Single-piece pack
Industrial sensor mounting
M12 cylindrical sensors
Industrial automation
Machine position sensing
Position detection
Production machinery
Machine fixtures
Sensor replacement
Automation equipment
Industrial control systems
The integrated end stop helps establish a repeatable sensor position. The M16 × 1 mounting thread provides a defined mechanical interface. Nickel-plated brass construction supports robust industrial mounting. The sleeve can simplify sensor replacement without extensive repositioning. Its 12 mm internal diameter is designed for compatible M12 cylindrical sensors.
Ensure the mounting thread is compatible before installation. Align the sensor according to the specified installation instruction. Use the supplied nuts to secure the sleeve. Check sensor position after installation. Inspect the sleeve and nuts for wear or damage during maintenance.
| Specification | E11114 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11114 |
| Product type | Mounting sleeve |
| Product name | FIXING/M12/MODUL/MS/END STOP |
| Sensor type | M12 cylindrical sensor |
| Internal diameter | 12 mm |
| Thread designation | M16 × 1 |
| Mounting thread | M16 × 1 |
| End stop | Yes |
| Housing material | Brass |
| Surface finish | Nickel-plated |
| Weight | Approx. 44.5 g |
| Nuts supplied | 2 |
| Pack quantity | 1 |
| Tightening torque | 7 Nm |
| Lock nut torque | 20 Nm |
| Installation instruction | Sensing face aligned right |
| Mounting function | Sensor positioning |
| Mechanical function | Fixed sleeve |
| Sensor replacement | Defined position |
| Product family | Mounting sleeves |
| Industrial use | Automation |
| Application | Position sensing |
| Component category | Sensor accessory |
| Construction | Metal sleeve |
| Material category | Nickel-plated brass |
| Installation type | Threaded |
| Positioning function | End stop |
| Mechanical retention | Sleeve and nuts |
