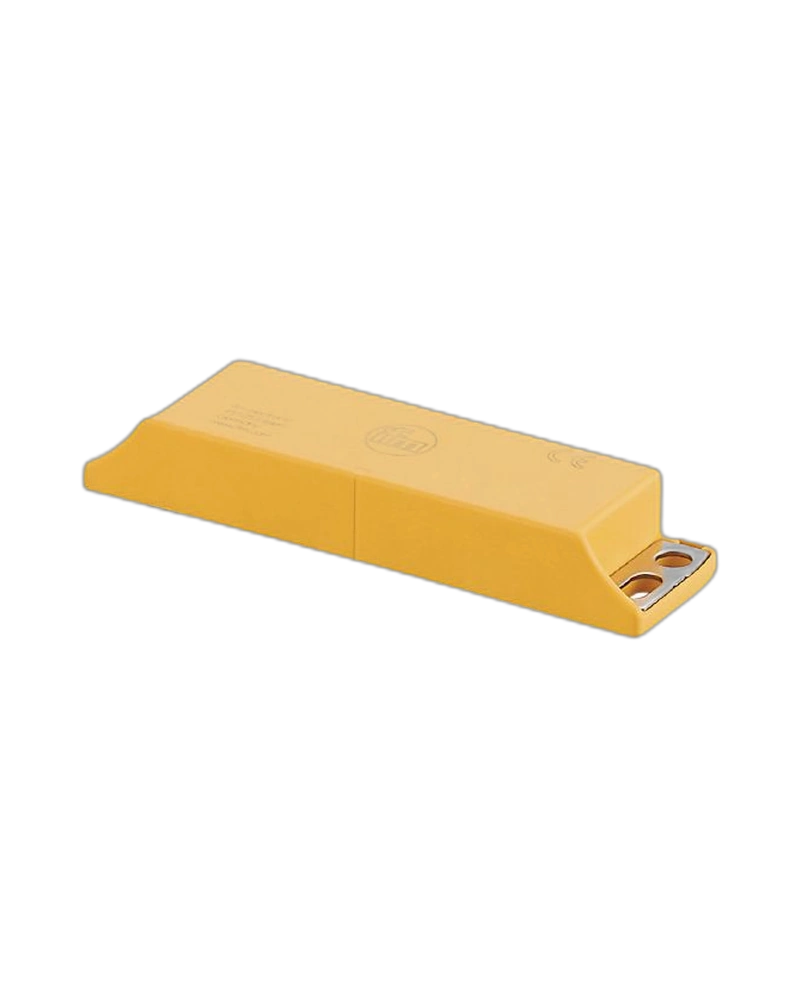

The IFM E1104S is a magnetically coded target designed for MN5 magnetic safety sensors. It provides a defined actuator for compatible safety sensor systems. The target is manufactured from PA and weighs approximately 81 g. Its dimensions are approximately 88 × 13.1 × 25 mm. The component is suitable for machine guarding and safety access monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E1104S is specifically intended for MN5 magnetic sensors. Its magnetically coded design allows the compatible sensor system to identify the intended target. The defined actuator geometry supports repeatable sensor positioning. PA construction provides a lightweight mechanical solution. The target can be installed as part of machine guard and access safety systems.
The target measures 88 × 13.1 × 25 mm and weighs approximately 81 g. PA material provides the main mechanical construction. The recommended tightening torque is 0.8–2 Nm. The elongated design supports installation on suitable safety guarding structures. One target is supplied per pack.
Install the E1104S in the defined position relative to the MN5 sensor. Maintain the recommended tightening torque. Ensure correct alignment between sensor and target. Inspect the actuator during machine maintenance. Replace damaged targets before safety equipment is returned to service.
Magnetically coded target
MN5 sensor compatibility
PA construction
88 × 13.1 × 25 mm dimensions
81 g weight
0.8–2 Nm tightening torque
Defined actuator
Safety sensor accessory
Machine guarding component
Access monitoring
Compact mechanical design
One-piece pack
Reliable actuator positioning
Industrial safety application
Magnetic coding
Safety doors
Machine guards
Access protection
Industrial machinery
Safety interlock systems
Protective enclosures
Production equipment
Automation machinery
Machine access monitoring
Safety sensor systems
The E1104S provides a dedicated actuator for compatible MN5 magnetic safety sensors. Its defined geometry helps maintain repeatable sensor alignment. PA construction keeps the target relatively lightweight. The component is suitable for machine guard and access monitoring arrangements. Its compact mechanical design supports practical industrial installation.
Mount the target according to the MN5 sensor arrangement. Maintain the recommended tightening torque. Keep the target aligned with the sensor. Inspect mounting points during preventive maintenance. Replace damaged targets when necessary.
| Specification | E1104S Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E1104S |
| Product type | Magnetically coded target |
| Product name | DEFINED TARGET MN5xxS |
| Technology | Magnetic coding |
| Compatible sensor | MN5 |
| Application | Magnetic safety sensor |
| Material | PA |
| Weight | 81 g |
| Dimensions | 88 × 13.1 × 25 mm |
| Tightening torque | 0.8–2 Nm |
| Pack quantity | 1 |
| Target type | Defined actuator |
| Safety application | Machine guarding |
| Sensor technology | Magnetic |
| Mounting purpose | Sensor actuation |
| Mechanical design | Coded target |
| Door monitoring | Supported |
| Access monitoring | Supported |
| Industrial category | Safety technology |
| Product family | Safety accessories |
| Installation type | Fixed target |
| Material category | Polyamide |
| Actuator function | Sensor actuation |
| Guard monitoring | Supported |
| Machine safety | Supported |
| Mechanical construction | PA |
| Application environment | Industrial machinery |
| Component category | Safety accessory |
