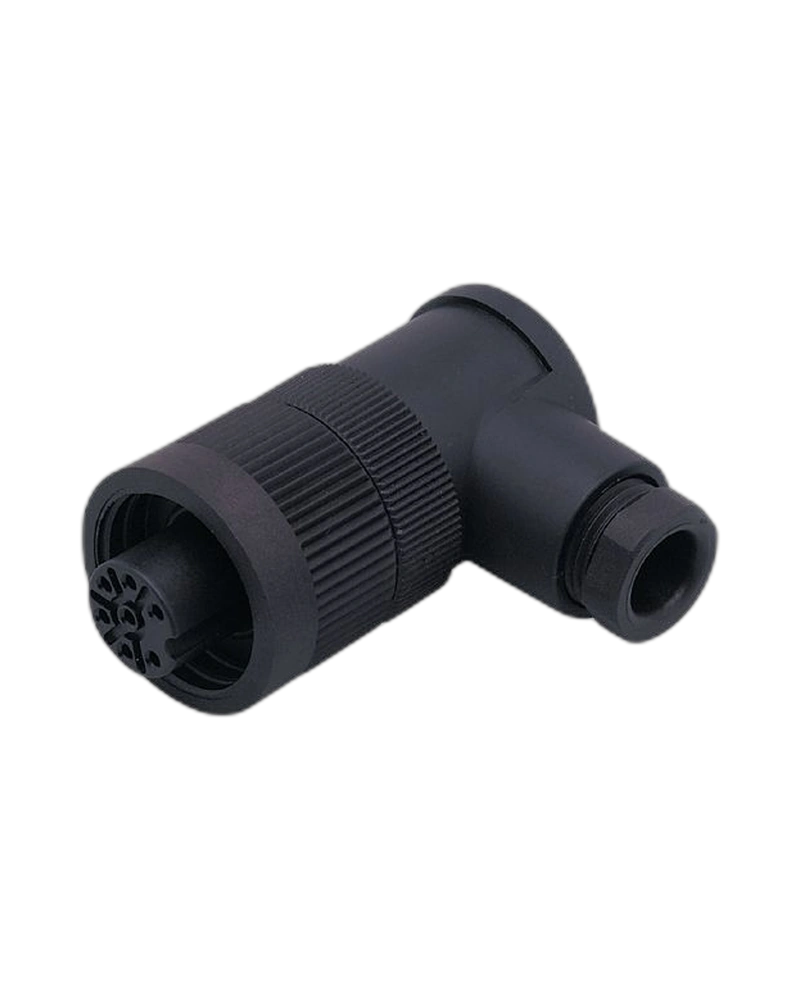

The IFM E11043 is a wirable socket designed for industrial connection applications. It features an angled design and gold-plated contacts for reliable electrical connection. The connector uses an Rd24 interface and supports AC/DC operation. Its IP67 protection and -40 to +100 °C ambient temperature range support demanding industrial environments. The socket is suitable for applications where field wiring and secure connector termination are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11043 uses an angled connector arrangement for flexible cable routing. Its Rd24 connector interface provides the connection platform. Gold-plated contacts help support reliable electrical contact performance. The PBT connector body provides mechanical construction while the PA nut supports secure connection. The wireable design allows field termination with compatible conductors.
The connector supports AC/DC operation with a rated voltage of 250 V AC / 300 V DC. The wireable connection accommodates conductors up to 2.5 mm² within the specified cable diameter range. IP67 protection supports industrial environmental conditions. The -40 to +100 °C ambient range provides broad operating capability. Gold-plated contacts support reliable electrical connection.
The E11043 is designed for field wiring. Conductors should be prepared according to the connector wiring requirements. The connection should be properly terminated before commissioning. Ensure the connector housing is correctly assembled to maintain protection. Inspect contact areas during maintenance for contamination or mechanical damage.
Wirable socket
Rd24 connector
Angled design
Gold-plated contacts
AC/DC electrical design
250 V AC operation
300 V DC operation
IP67 protection
-40 to +100 °C ambient temperature
PBT body
PA nut
Wireable connection
Up to 2.5 mm² conductor
Industrial connector
Field wiring capability
Industrial automation
Field wiring
Sensor connections
Control equipment
Machine wiring
Industrial panels
Automation cabinets
Process equipment
Machine control
Production systems
The E11043 provides a field-wireable connection solution for industrial equipment. Its angled configuration can simplify cable routing in restricted areas. Gold-plated contacts support reliable electrical performance. The wide ambient temperature range supports demanding industrial environments. IP67 protection helps protect the connector against dust and water exposure.
Follow the connector wiring arrangement during assembly. Ensure all conductors are securely terminated. Check the housing before commissioning. Keep contact surfaces clean and dry. Inspect the connector periodically for loose wiring or physical damage.
| Specification | E11043 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11043 |
| Product type | Wirable socket |
| Product code | SDOAL070PLSFKPG |
| Connector type | Rd24 |
| Connector design | Angled |
| Electrical design | AC/DC |
| Rated voltage AC | 250 V |
| Rated voltage DC | 300 V |
| Protection | IP67 |
| Ambient temperature | -40 to +100 °C |
| Body material | PBT |
| Nut material | PA |
| Contact material | Gold-plated |
| Weight | Approx. 45 g |
| Connection | Wireable |
| Conductor range | Up to 2.5 mm² |
| Cable diameter range | 6–8 mm |
| Pack quantity | 1 |
| Contact finish | Gold plated |
| Mounting type | Field wiring |
| Application | Industrial connection |
| Connector family | Wirable sockets |
| Cable entry | Wireable |
| Mechanical design | Angled |
| Electrical application | AC/DC |
| Industrial use | Automation |
| Component function | Electrical connection |
| Product category | Connection technology |
