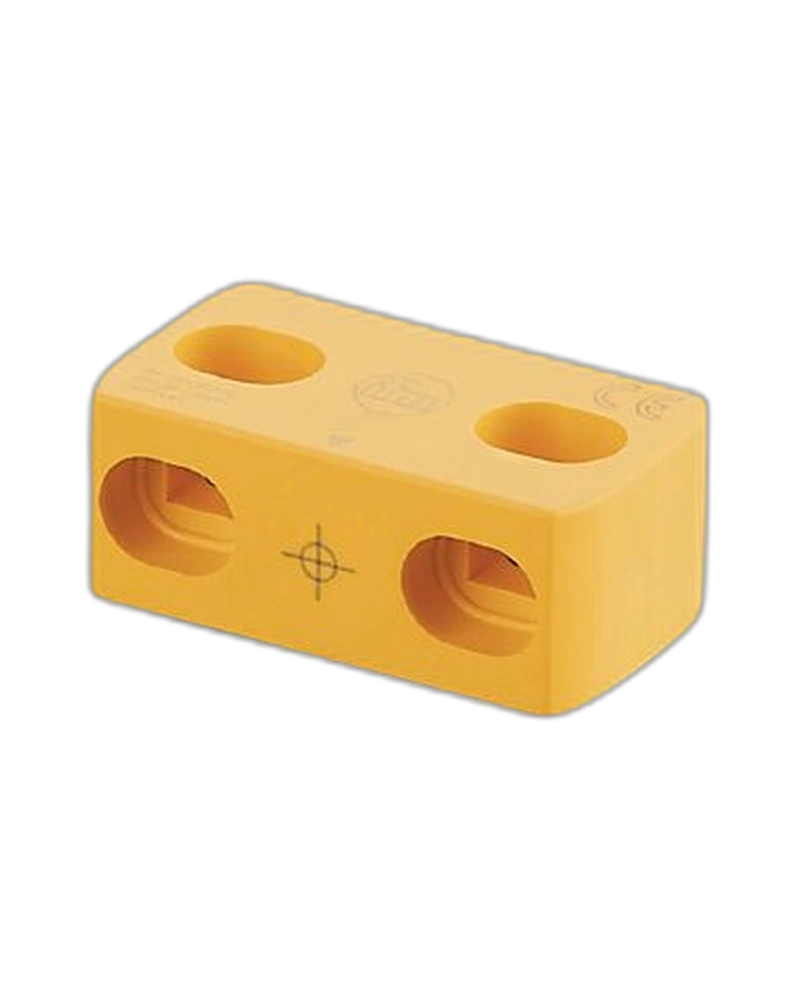

The IFM E1103S is a codable RFID target designed for compatible MN7 RFID safety sensors. It provides a high coding level and can be actuated from different directions. The target can be concealed behind stainless steel for enhanced tamper prevention. Its PA construction provides a compact and lightweight mechanical design. The target is intended for safety door and machine guarding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E1103S is designed for the MN7 RFID-coded safety sensor family. Its codable configuration supports the appropriate sensor coding procedure. Multi-direction actuation provides flexibility during machine design. The target can be concealed behind stainless steel to make unauthorized manipulation more difficult. It provides a defined actuator for compatible safety monitoring systems.
The target uses PA material and weighs approximately 40.5 g. Its dimensions are approximately 45 × 18 × 25 mm. The recommended tightening torque is 0.8–2 Nm. Its compact design allows integration into protective machine structures. One target is supplied per pack.
Install the target in the required position relative to the MN7 sensor. Complete the required coding procedure according to the compatible safety system. Maintain correct alignment during installation. Inspect the target for physical damage during machine maintenance. Replace damaged safety-related components before operation.
RFID-coded target
Codable design
MN7 compatibility
High coding level
Multi-direction actuation
PA material
45 × 18 × 25 mm dimensions
40.5 g weight
0.8–2 Nm tightening torque
Tamper prevention capability
Stainless-steel concealment option
Safety actuator
Compact design
One-piece pack
Industrial safety accessory
Safety doors
Machine guards
Access protection
Protective enclosures
Industrial machinery
Safety interlock systems
Production equipment
Automation systems
Machine access monitoring
The codable configuration allows the actuator to be paired appropriately with the compatible safety system. High coding capability supports controlled actuator recognition. Multi-direction actuation simplifies mechanical design. The compact PA housing provides a lightweight installation solution. Concealment behind stainless steel can improve tamper resistance.
Follow the MN7 sensor installation requirements. Complete the coding procedure correctly. Maintain appropriate sensor-target alignment. Check the target during scheduled maintenance. Replace any damaged component immediately.
| Specification | E1103S Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E1103S |
| Product type | RFID-coded target |
| Product name | DEFINED TARGET MN7xxS - CODABLE |
| Technology | RFID |
| Compatible sensor | MN7 |
| Coding | Codable |
| Coding level | High |
| Actuation | Different directions |
| Material | PA |
| Weight | 40.5 g |
| Dimensions | 45 × 18 × 25 mm |
| Tightening torque | 0.8–2 Nm |
| Pack quantity | 1 |
| Application | Safety sensor |
| Safety function | Actuator |
| Tamper prevention | Stainless-steel concealment |
| Sensor technology | RFID |
| Mechanical construction | Compact PA |
| Installation | Machine guarding |
| Access monitoring | Supported |
| Door monitoring | Supported |
| Product family | Safety accessories |
| Industrial category | Safety technology |
| Component function | Sensor actuation |
| Mounting purpose | Safety target |
| Target type | Codable |
| Recognition | RFID coded |
| Application environment | Industrial machinery |
