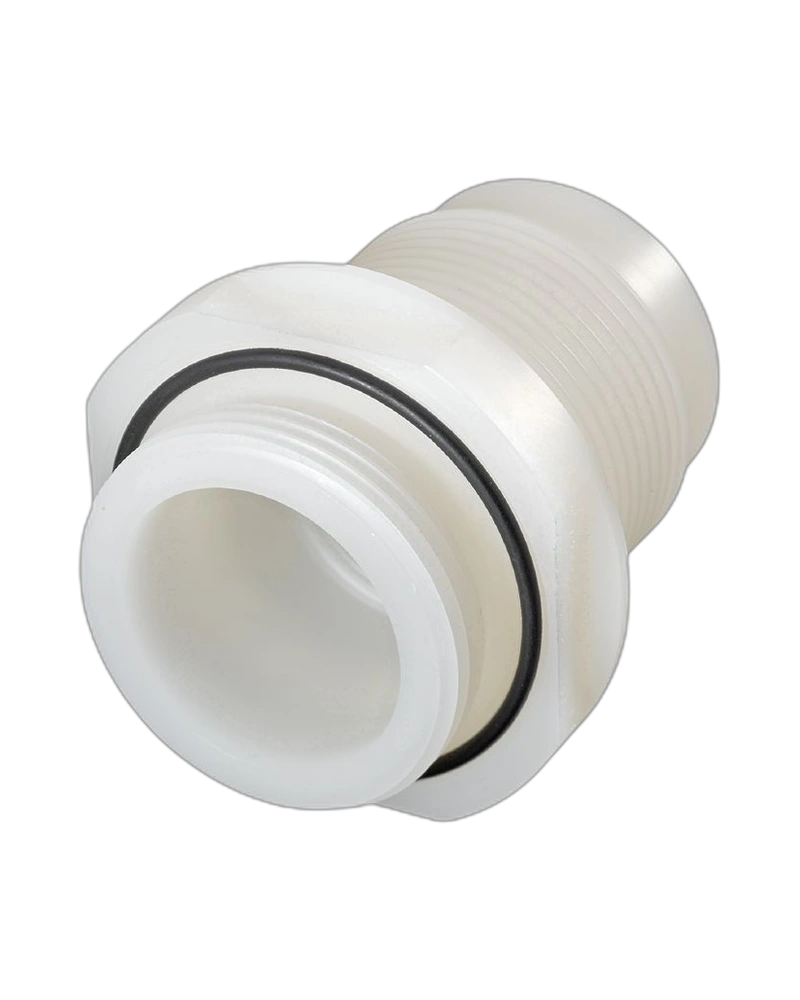

The IFM E11036 is a PVDF mounting adapter for M30 × 1.5 capacitive sensors. It uses a G 1¼ external process connection for compatible tank and vessel installations. The adapter has an 8 bar pressure rating and an ambient temperature range of -25 to +110 °C. It uses EPDM sealing and has a 65 mm installation length. The model provides a practical high-temperature polymer mounting solution for capacitive level sensing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11036 uses PVDF for the adapter body and EPDM for the gasket. An M30 × 1.5 internal thread provides the sensor connection. The G 1¼ external thread provides the process connection. The 65 mm length supports installation through appropriate vessel walls. Its compact construction allows efficient sensor integration.
The adapter is rated to 8 bar pressure. The ambient operating temperature range is -25 to +110 °C. Its weight is approximately 83.4 g. PVDF provides a lightweight polymer construction suitable for appropriate industrial environments. The EPDM gasket supports sealing at the mounting interface.
Connect the sensor using the M30 × 1.5 internal thread. Install the process side using the G 1¼ external thread. Check the O-ring before installation. Avoid excessive tightening of the polymer adapter. Inspect the adapter and seal during scheduled maintenance.
PVDF mounting adapter
M30 × 1.5 internal thread
G 1¼ external process thread
EPDM gasket
44 × 2 mm O-ring
8 bar pressure rating
-25 to +110 °C ambient range
65 mm length
83.4 g weight
Capacitive sensor mounting
Tank installation
Vessel-wall installation
High-temperature capability
Compact design
Single-piece pack
Capacitive level detection
Industrial tanks
Process vessels
Liquid level monitoring
Material level monitoring
Process automation
Industrial containers
Sensor mounting
The E11036 provides a PVDF mounting solution for compatible M30 capacitive sensors. Its G 1¼ process interface supports practical process integration. The 8 bar pressure rating provides suitable capability for compatible installations. Its high ambient temperature range makes it useful in appropriate higher-temperature environments. The compact 65 mm construction supports efficient sensor mounting.
Inspect the O-ring before assembly. Clean the process and sensor threads. Avoid excessive tightening force. Check for leakage after commissioning. Inspect the adapter body and sealing area during maintenance.
| Specification | E11036 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11036 |
| Product type | Mounting adapter |
| Product name | MOUNTING ADAPTER M30 PVDF |
| Sensor connection | M30 × 1.5 |
| Sensor thread | Internal |
| Process connection | G 1¼ |
| Process thread | External |
| Adapter material | PVDF |
| Gasket material | EPDM |
| O-ring | 44 × 2 mm |
| Pressure rating | 8 bar |
| Pressure rating | 0.8 MPa |
| Ambient temperature | -25 to +110 °C |
| Length | 65 mm |
| Weight | 83.4 g |
| Thread designation | G 1¼ |
| Application | Capacitive sensors |
| Installation | Vessel wall |
| Process application | Level detection |
| Sensor interface | M30 × 1.5 |
| Process interface | G 1¼ |
| Mechanical function | Sensor mounting |
| Sealing element | EPDM |
| Housing material | PVDF |
| Pack quantity | 1 |
| Product family | Capacitive sensor accessories |
| Industrial application | Process automation |
| Construction | Polymer adapter |
