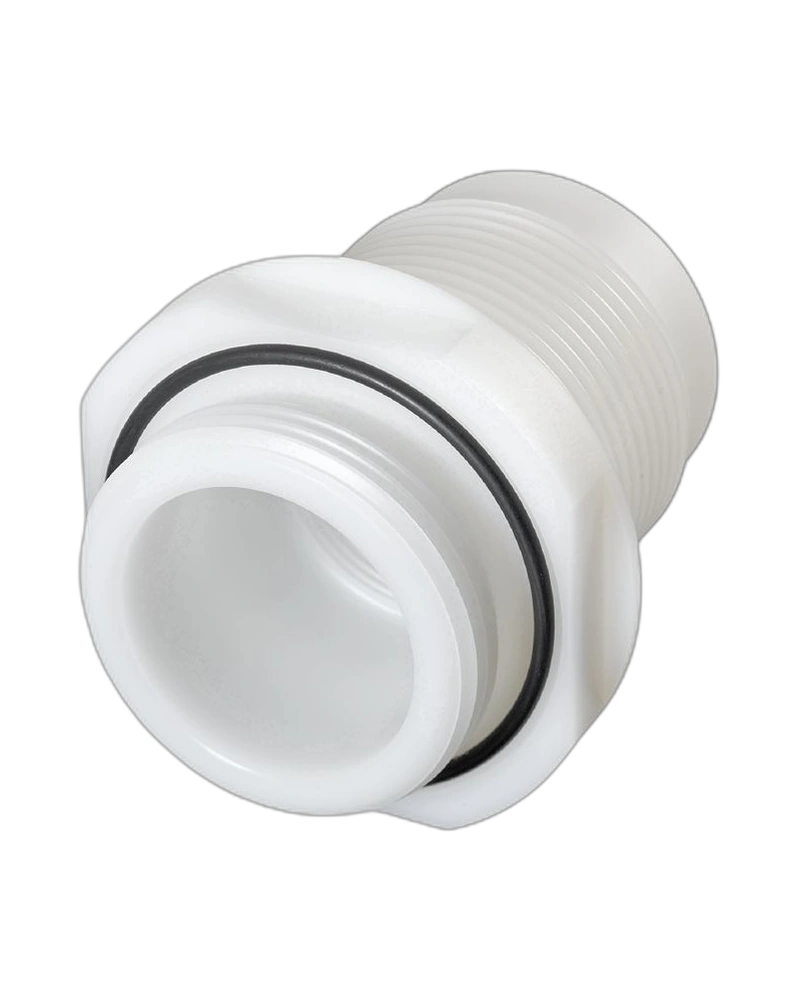

The IFM E11035 is a POM mounting adapter for M30 × 1.5 capacitive sensors. It provides a G 1¼ external process connection and is designed for reliable vessel-wall installation. The adapter includes an EPDM sealing element and an 8 bar pressure rating. It operates with medium temperatures from -25 to +100 °C and short-term temperatures up to +110 °C. The compact 65 mm design is suitable for capacitive level detection in tanks and containers.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11035 provides an M30 × 1.5 internal thread for the compatible sensor. Its G 1¼ external process thread provides the connection to the process installation. The adapter is designed to position the sensor securely within the mounting point. POM provides lightweight mechanical construction. The EPDM gasket supports sealing around the process interface.
The adapter is rated for 8 bar pressure. Its standard medium temperature range is -25 to +100 °C. Short-term medium temperature capability extends to +110 °C. The adapter weighs approximately 79.2 g and has a 65 mm length. These characteristics make it suitable for a range of capacitive level monitoring applications.
The adapter should be installed using the appropriate G 1¼ process connection. The sensor should be correctly engaged with the M30 × 1.5 internal thread. The 44 × 2 mm O-ring should be checked before installation. Avoid excessive mechanical stress on the POM body. Periodic inspection helps maintain sealing and mounting reliability.
M30 × 1.5 internal sensor thread
G 1¼ external process thread
POM adapter
EPDM gasket
44 × 2 mm O-ring
8 bar pressure rating
-25 to +100 °C medium temperature
Short-term temperature up to +110 °C
65 mm length
79.2 g weight
Tank installation
Vessel-wall installation
Capacitive level detection
Industrial process accessory
Single-piece pack
Capacitive level sensing
Tank monitoring
Container level detection
Process vessels
Liquid level measurement
Material detection
Industrial automation
Process control
The E11035 provides a compact mounting solution for M30 capacitive sensors. Its G 1¼ process interface supports practical vessel installation. POM construction provides a lightweight adapter body. The EPDM gasket supports reliable sealing at the process interface. Its temperature and pressure ratings make it suitable for compatible industrial level sensing applications.
Check the O-ring before assembly. Clean all mating threads before installation. Avoid cross-threading the sensor or process connection. Verify sealing after commissioning. Inspect the adapter periodically for cracks, deformation or gasket wear.
| Specification | E11035 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11035 |
| Product type | Mounting adapter |
| Product name | MOUNTING ADAPTER M30 POM |
| Sensor connection | M30 × 1.5 |
| Sensor thread | Internal |
| Process connection | G 1¼ |
| Process thread | External |
| Adapter material | POM |
| Gasket material | EPDM |
| O-ring | 44 × 2 mm |
| Pressure rating | 8 bar |
| Pressure rating | 0.8 MPa |
| Medium temperature | -25 to +100 °C |
| Short-term medium temperature | -25 to +110 °C |
| Length | 65 mm |
| Weight | 79.2 g |
| Thread designation | G 1¼ |
| Application | Capacitive sensors |
| Installation | Vessel wall |
| Process application | Level detection |
| Sensor interface | M30 × 1.5 |
| Process interface | G 1¼ |
| Mechanical function | Sensor mounting |
| Sealing element | EPDM |
| Housing material | POM |
| Pack quantity | 1 |
| Product family | Capacitive sensor accessories |
| Industrial application | Process automation |
| Construction | Polymer adapter |
