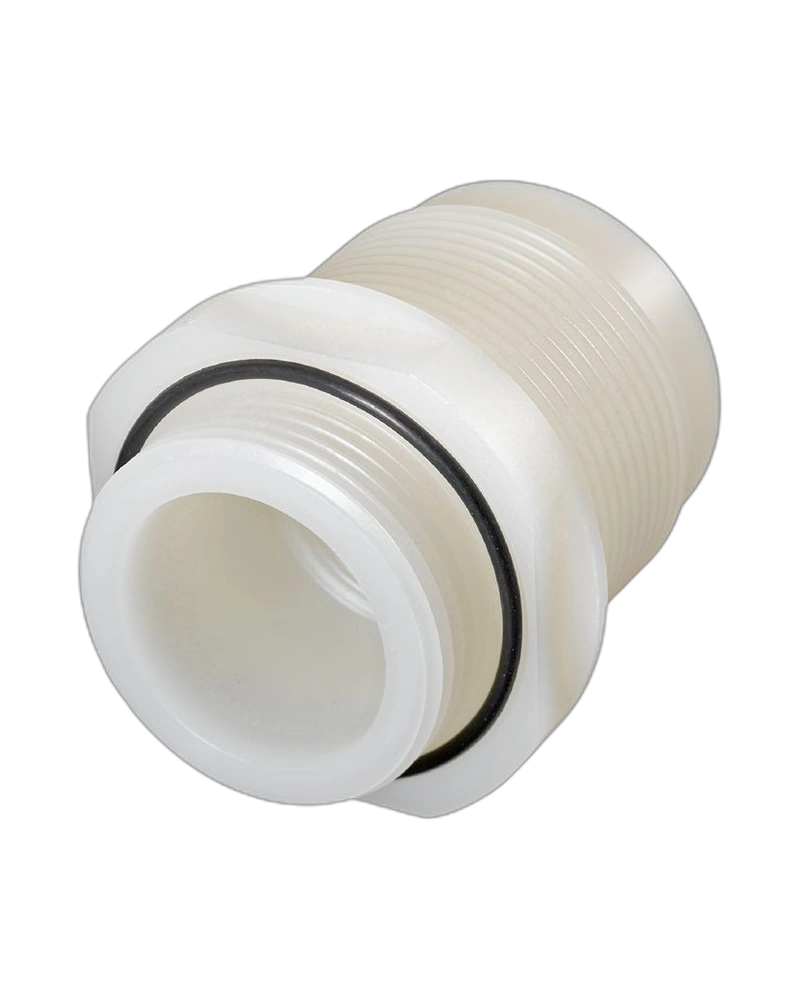

The IFM E11034 is a PVDF mounting adapter designed for M30 × 1.5 capacitive sensors. It provides a G 1½ external process connection for tank and vessel installations. PVDF construction is suitable for applications requiring a robust polymer adapter material. The adapter has an 8 bar pressure rating and a 65 mm length. It is designed for reliable capacitive level detection in industrial process systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11034 uses PVDF for the adapter body and EPDM for sealing. Its M30 × 1.5 internal thread accommodates compatible capacitive sensors. The G 1½ external thread provides the process connection. The 65 mm length supports installation through suitable vessel walls. The design combines mechanical mounting and process sealing in one accessory.
The adapter has an 8 bar pressure rating. Its ambient temperature range is -25 to +110 °C. The component weighs approximately 113 g. PVDF provides a suitable polymer construction for appropriate high-temperature process installations. The EPDM gasket supports sealing between the adapter and process connection.
Install the sensor into the M30 × 1.5 internal thread. Connect the G 1½ external thread to the compatible process fitting. Inspect the EPDM gasket before installation. Avoid damage to the PVDF body during assembly. Check the adapter and sealing area during routine maintenance.
M30 × 1.5 internal thread
G 1½ external process connection
PVDF construction
EPDM gasket
8 bar pressure rating
-25 to +110 °C ambient temperature
65 mm length
Approx. 113 g weight
O-ring 44 × 2 mm
Capacitive sensor mounting
Tank installation
Vessel wall installation
High-temperature capability
Industrial process accessory
Single-piece pack
Capacitive level sensing
Industrial tanks
Process vessels
Liquid monitoring
Material level detection
Process automation
Container applications
Industrial sensor installation
The E11034 provides a robust polymer mounting interface for compatible M30 capacitive sensors. PVDF construction is useful for suitable industrial process environments. The G 1½ process connection supports standard installation arrangements. The integrated EPDM sealing element helps maintain a reliable process interface. Its 65 mm length provides practical vessel-wall mounting.
Clean the sensor and process threads before installation. Check the O-ring for damage before assembly. Install the sensor without excessive torque. Verify process connection tightness before commissioning. Inspect periodically for wear, leakage or mechanical damage.
| Specification | E11034 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11034 |
| Product type | Mounting adapter |
| Product name | MOUNTING ADAPTER M30 PVDF |
| Sensor connection | M30 × 1.5 |
| Sensor thread | Internal |
| Process connection | G 1½ |
| Process thread | External |
| Adapter material | PVDF |
| Gasket material | EPDM |
| O-ring | 44 × 2 mm |
| Pressure rating | 8 bar |
| Pressure rating | 0.8 MPa |
| Ambient temperature | -25 to +110 °C |
| Length | 65 mm |
| Weight | Approx. 113 g |
| Thread designation | G 1½ |
| Application | Capacitive sensors |
| Installation | Vessel wall |
| Process application | Level detection |
| Sensor interface | M30 × 1.5 |
| Process interface | G 1½ |
| Sealing element | EPDM |
| Mechanical function | Sensor mounting |
| Housing material | PVDF |
| Pack quantity | 1 |
| Product family | Capacitive sensor accessories |
| Industrial application | Process automation |
| Construction | Polymer adapter |
| Component function | Sensor/process interface |
