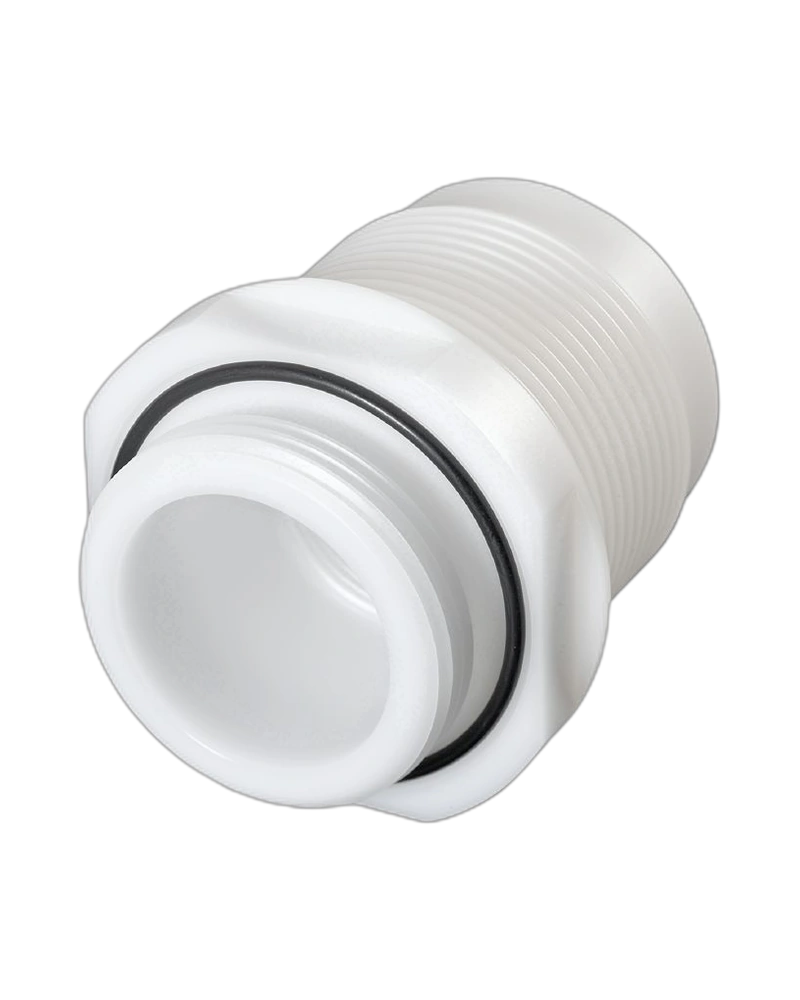

The IFM E11033 is a mounting adapter for capacitive sensors with an M30 × 1.5 sensor connection. It provides a G 1½ external process connection for installation into compatible process equipment. The adapter uses POM construction with an EPDM gasket. It has an 8 bar pressure rating and a 65 mm installation length. The design is intended for reliable capacitive level sensing in tanks and vessels.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E11033 provides an M30 × 1.5 internal thread for compatible capacitive sensors. Its G 1½ external thread provides the process-side interface. The adapter incorporates an EPDM sealing element for the specified installation arrangement. POM construction keeps the adapter lightweight while providing practical mechanical strength. The 65 mm length supports vessel-wall mounting.
The adapter has an 8 bar pressure rating. The standard medium temperature range is -25 to +100 °C, with short-term medium temperature up to +110 °C. Its weight is approximately 90.5 g. The G 1½ process interface provides a common industrial mounting arrangement. The adapter is designed for stable capacitive level sensing installation.
Install the compatible M30 × 1.5 capacitive sensor into the internal thread. Connect the G 1½ external thread to the appropriate process fitting. Check the EPDM gasket before installation. Ensure the adapter is correctly tightened without damaging the polymer body. Inspect the sealing area during maintenance.
M30 × 1.5 internal sensor thread
G 1½ external process thread
POM adapter material
EPDM gasket
8 bar pressure rating
-25 to +100 °C medium temperature
Short-term medium temperature up to +110 °C
65 mm installation length
Approx. 90.5 g weight
Capacitive sensor mounting
Tank installation
Vessel wall installation
Reliable sealing
Industrial process accessory
Single-piece pack
Capacitive level detection
Tank level monitoring
Vessel level sensing
Liquid level applications
Material level monitoring
Process automation
Industrial containers
Process vessels
Machine automation
The E11033 provides a direct mechanical interface between an M30 capacitive sensor and a G 1½ process connection. POM construction keeps the adapter lightweight while supporting industrial installation. The EPDM gasket supports reliable sealing at the mounting interface. Its 8 bar pressure rating provides practical process capability. The adapter is especially useful for tank and vessel level sensing installations.
Inspect the O-ring before fitting the adapter. Clean both mating threads before assembly. Avoid damaging the EPDM sealing surface. Verify that the sensor is fully seated in the M30 × 1.5 thread. Periodically inspect the assembly for leakage or mechanical damage.
| Specification | E11033 Details |
|---|---|
| Manufacturer | IFM electronic |
| Model | E11033 |
| Product type | Mounting adapter |
| Product name | MOUNTING ADAPTER M30 POM |
| Sensor connection | M30 × 1.5 |
| Sensor thread | Internal |
| Process connection | G 1½ |
| Process thread | External |
| Adapter material | POM |
| Gasket material | EPDM |
| O-ring | 44 × 2 mm |
| Pressure rating | 8 bar |
| Pressure rating | 0.8 MPa |
| Medium temperature | -25 to +100 °C |
| Short-term temperature | -25 to +110 °C |
| Length | 65 mm |
| Weight | Approx. 90.5 g |
| Thread designation | G 1½ |
| Application | Capacitive sensors |
| Installation | Vessel wall |
| Process application | Level detection |
| Housing material | POM |
| Sealing material | EPDM |
| Pack quantity | 1 |
| Mechanical function | Sensor mounting |
| Process interface | G 1½ |
| Sensor interface | M30 × 1.5 |
| Product family | Capacitive sensor accessories |
| Construction | Polymer mounting adapter |
| Application category | Level sensing |
